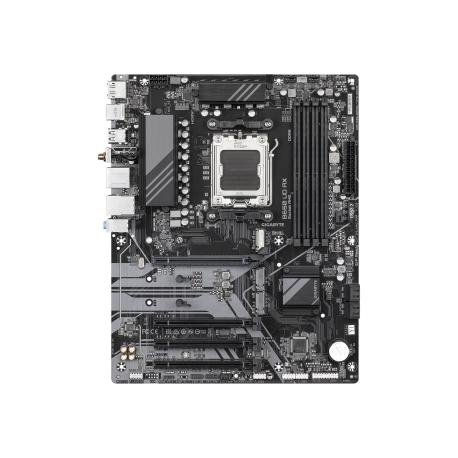

Gigabyte B650 UD AX - 1.0 - motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 6, Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B650 UD AX - 1.0 - motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 6, Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•GIGABYTE
Reference
•B650 UD AX
Article
•4141185
Intrastat
•84717020
Shipping weight
•1.74 kg
Total quantity in stocks
•22
Nearest delivery
•16.03.2026
Product Type
Motherboard - ATX
Chipset Type
AMD B650
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
(supports Ryzen 7000/8000/9000 Series)
Max Size
256 GB
Technology
DDR5
Bus Clock
2400 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Realtek RTL8111H / Realtek RTL8851
Network Interfaces
802.11a/b/g/n/ac/ax, Gigabit Ethernet, Bluetooth 5.3
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe x16 ¦ 3 x PCIe 3.0 x16 (x1 mode) ¦ 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) ¦ 2 x M.2 socket (2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe -connectors: 2 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2
Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 6 x USB 2.0 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 2 x aerial
Internal Interfaces
1 x SPI - header ¦ 1 x audio - header ¦ 6 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 2 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
Hardware Monitoring
System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control
Hardware Features
6+2+2 Phase Power Design, PCIe EZ Latch, GIGABYTE Smart Fan 6, Q-Flash Plus, RGB FUSION, 6 Layer PCB, Audio Noise Guard, Ultra Durable, DIY Friendly Design
Included Accessories
2 aerials, IO shield, M.2 screw package
Cables Included
2 x Serial ATA cable
Software Included
Norton Internet Security (OEM Version), GIGABYTE Control Center, LAN manager
Width
30.5 cm
Depth
24.4 cm
