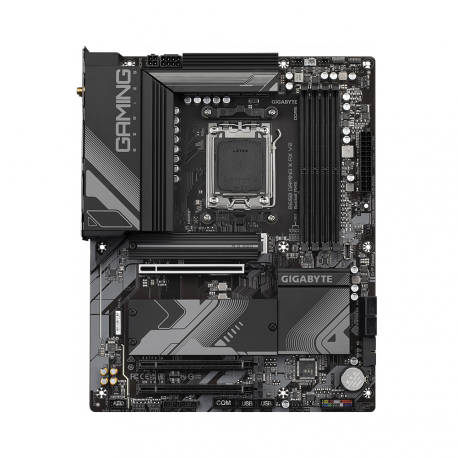

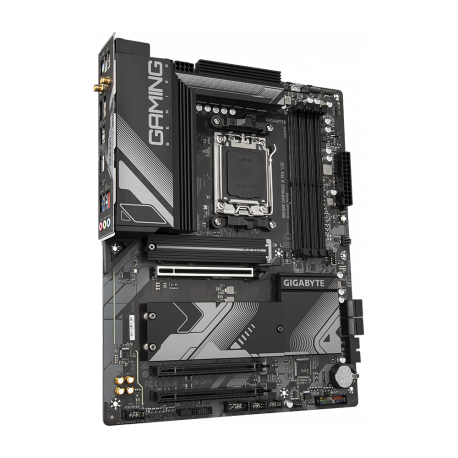

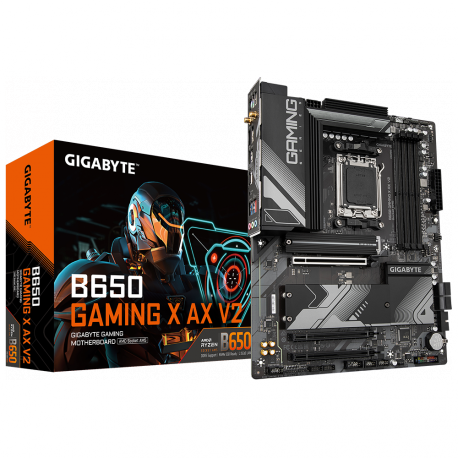

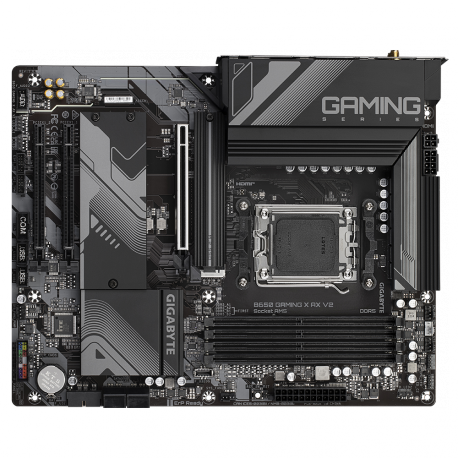

Gigabyte B650 GAMING X AX V2 - 1.X - motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B650 GAMING X AX V2 - 1.X - motherboard - ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 - 2.5 Gigabit LAN, Bluetooth, Wi-Fi - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•GIGABYTE
Reference
•B650 GAMING X AX V2
Article
•3354944
Intrastat
•84717020
Shipping weight
•1.92 kg
Product Type
Motherboard - ATX
Chipset Type
AMD B650
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000 Series)
Max Size
192 GB
Technology
DDR5
Bus Clock
5600 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 4400 MHz, 7200 MHz (O.C.), 5200 MHz, 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Controller
AMD RZ616 (MT7922A22M)
Network Interfaces
2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x16 (x1 mode) ¦ 3 x M.2 socket (2280/25110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10

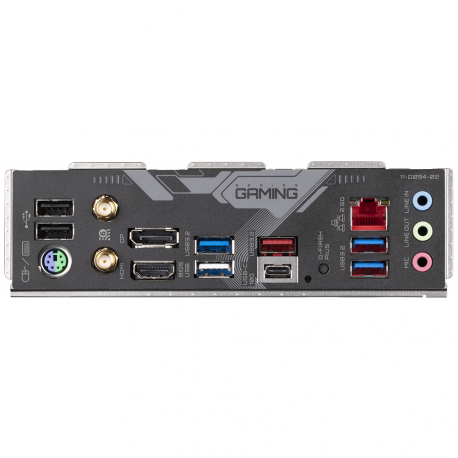

Interfaces
1 x HDMI ¦ 1 x DisplayPort ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 3 x USB 2.0 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 3 x USB 3.2 Gen 1 ¦ 2 x aerial
Internal Interfaces
4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C Gen 2x2 - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support
Hardware Monitoring
System voltage, water cooling flow rate, fan fail warning, fan control, fan speed detection, temperature detection
Hardware Features
Q-Flash, 2x Copper PCB, 6 Layer PCB, Q-Flash Plus, Dr.MOS MOSFET, Audio Noise Guard, RGB FUSION, M.2 Thermal Guard, pre-mounted I/O shield, GIGABYTE Smart Fan 6, MultiKey, Enlarged Heatsink Armor, 60A Power Stage, PCIe EZ Latch, High-end Audio Capacitors, 8+2+2 Phase Power Design
Included Accessories
2 aerials, 1 x M.2 screw
Cables Included
2 x Serial ATA cable
Software Included
Realtek Gaming LAN Bandwidth Control, GIGABYTE Control Center, Norton Internet Security (OEM Version)
Compliant Standards
DisplayPort 1.4, HDCP 2.3
Width
30.5 cm
Depth
24.4 cm
