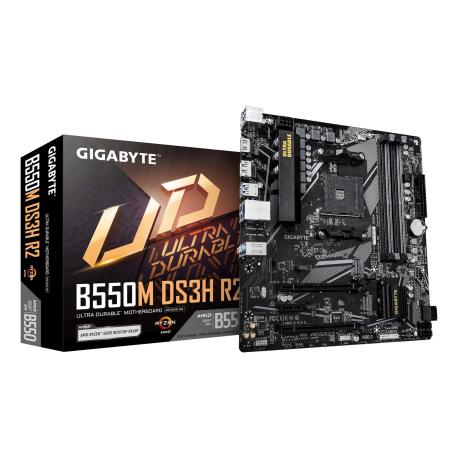

Gigabyte B550M DS3H R2 - Motherboard - micro ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B550M DS3H R2 - Motherboard - micro ATX - Socket AM4 - AMD B550 Chipset - USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•GIGABYTE
Reference
•B550M DS3H R2
Article
•4243130
Intrastat
•84717020
Total quantity in stocks
•109
Nearest delivery
•16.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
AMD B550
Processor Socket
Socket AM4
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 3000 Series/ 3000 G-Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Max Size
128 GB
Technology
DDR4
Bus Clock
4733 MHz (O.C.), 4600 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4133 MHz (O.C.), 4000 MHz (O.C.), 3866 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3466 MHz (O.C.), 3400 MHz (O.C.), 3200 MHz, 2933 MHz, 2667 MHz, 2400 MHz, 2133 MHz
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1220
Compliant Standards
High Definition Audio
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 3nd Generation Ryzen with Radeon Graphics CPU)) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2
Interfaces
1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0
Internal Interfaces
2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Hardware Monitoring
System voltage, temperature detection, fan speed detection, CPU overheating protection, fan fail warning, fan control
Hardware Features
Q-Flash, HDCP compliant, On/Off Charge, Q-Flash Plus, Game Boost, RGB FUSION
Included Accessories
IO shield, Wi-Fi aerial
Cables Included
2 x Serial ATA cable
Software Included
Norton Internet Security (OEM Version), @BIOS, EasyTune, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
Width
24.4 cm
Depth
24.4 cm
