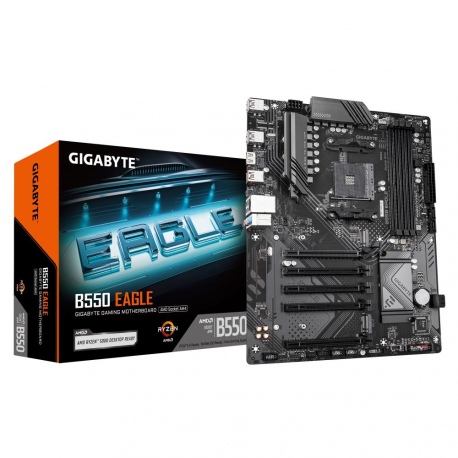

Gigabyte B550 EAGLE - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte B550 EAGLE - Motherboard - ATX - Socket AM4 - AMD B550 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•GIGABYTE
Reference
•B550 EAGLE 1.0
Article
•4249418
Intrastat
•84717020
Total quantity in stocks
•15
Nearest delivery
•16.03.2026
Product Type
Motherboard - ATX
Chipset Type
AMD B550
Processor Socket
Socket AM4
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 3000 Series/ 3000 G-Series/ 4000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Max Size
128 GB
Technology
DDR4
Bus Clock
1600 MHz, 1467 MHz, 1333 MHz, 1200 MHz, 1067 MHz
Supported RAM Integrity Check
Non-ECC, ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Controller
Realtek RTL8851BE
Network Interfaces
Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 4 x PCIe 4.0 x1 ¦ 2 x M.2 socket (22110/2280)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10
Interfaces
1 x HDMI ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 3.2 Gen 1 ¦ 1 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x USB-C 3.2 Gen 1 ¦ LAN (Gigabit Ethernet)
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
Hardware Monitoring
Fan fail warning, fan control, system voltage, temperature detection, water cooling flow rate, fan speed detection
Hardware Features
10+3+1 Phase Power Design, 4 Layer PCB, Server-Grade Mid-Loss PCB, EZ Plug, M.2 EZ Latch, GIGABYTE Smart Fan 6, RGB FUSION, DIY Friendly Design
Included Accessories
M.2 screw package, rubber pad, IO shield
Cables Included
2 x SATA Express cable
Software Included
GIGABYTE Control Center, Norton Internet Security (OEM Version), LAN manager
Width
30.5 cm
Depth
24.4 cm
