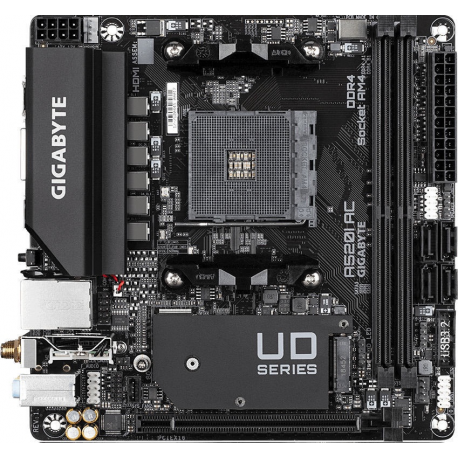

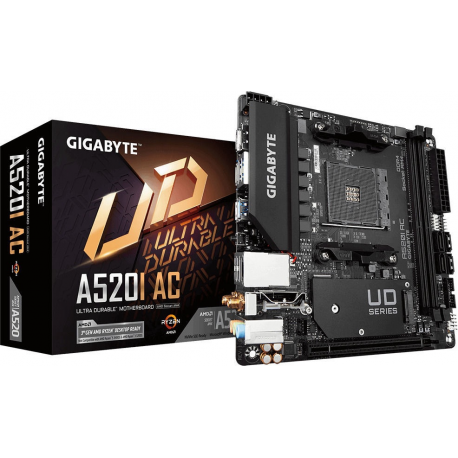

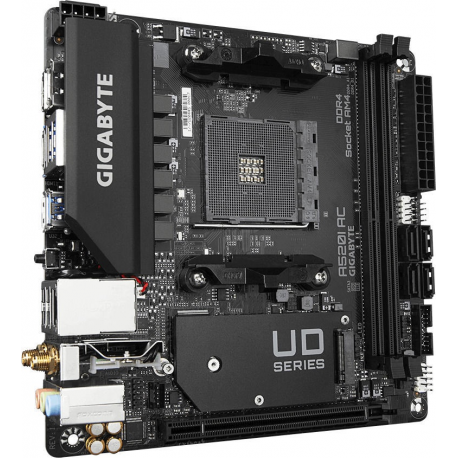

Gigabyte A520I AC - 1.0 - motherboard - mini ITX - Socket AM4 - AMD A520 - USB 3.2 Gen 1 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Gigabyte A520I AC - 1.0 - motherboard - mini ITX - Socket AM4 - AMD A520 - USB 3.2 Gen 1 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•GIGABYTE
Reference
•A520I AC
Article
•1749973
Intrastat
•84717020
Total quantity in stocks
•16
Nearest delivery
•16.03.2026
Product Type
Motherboard - mini ITX
Chipset Type
AMD A520
Processor Socket
Socket AM4
Max Processors Qty
1
Compatible Processors
Ryzen (supports 3rd Generation Ryzen / 3rd Generation Ryzen with Radeon Graphics)
Max Size
64 GB
Technology
DDR4
Bus Clock
2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3333 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 4866 MHz (O.C.), 5200 MHz (O.C.), 5100 MHz (O.C.), 5300 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC887
Compliant Standards
High Definition Audio
Network Interfaces
Gigabit Ethernet, 802.11a/b/g/n/ac, Bluetooth 4.2
Expansion Slots
1 x CPU
2 x DIMM 288-pin
1 x PCIe 3.0 x16
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
SATA-600 / PCIe 3.0 -connectors: 1 x M.2

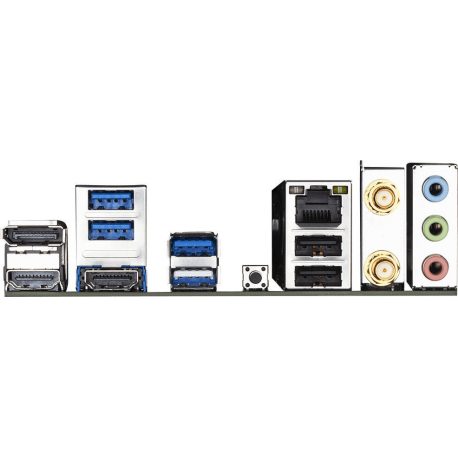

Interfaces
1 x LAN (Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x DisplayPort
2 x HDMI
4 x USB 3.2 Gen 1
2 x USB 2.0
Internal Interfaces
2 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x audio - header
1 x serial - header
1 x speaker - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support
Hardware Monitoring
CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, CPU core voltage
Hardware Features
Q-Flash, On/Off Charge, 6 Phase Power Design, Ultra Durable, Q-Flash Plus, Dr.MOS MOSFET, Game Boost, GIGABYTE Double Locking Bracket, Anti-Sulfur Design, GIGABYTE Smart Fan 5, Solid Pin Power Connectors, RGB FUSION 2.0
Software Included
Norton Internet Security, @BIOS, EasyTune, Xpress Install, GIGABYTE App Center, GIGABYTE Fast Boot, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control
Width
17 cm
Depth
17 cm
