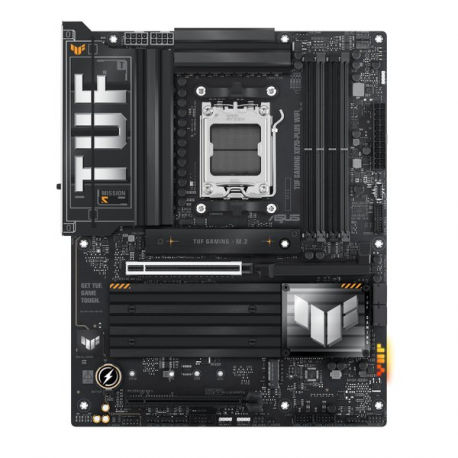

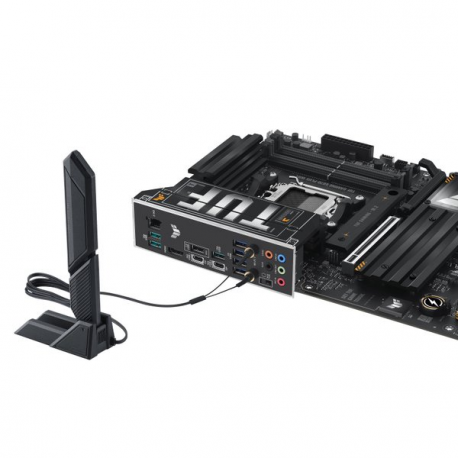

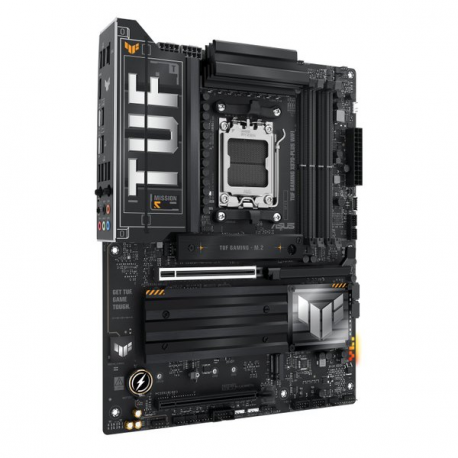

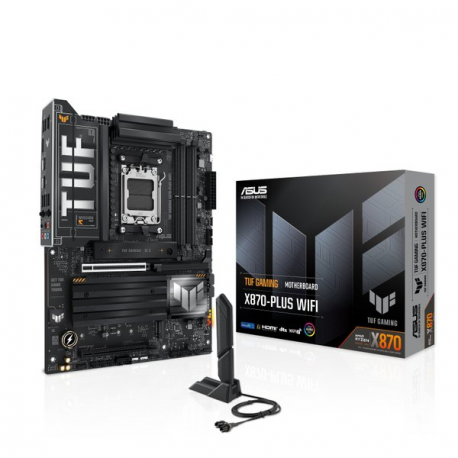

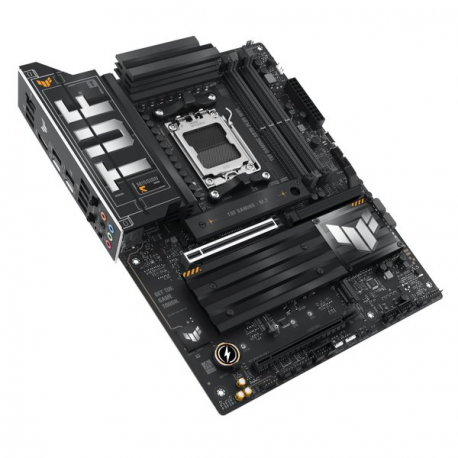

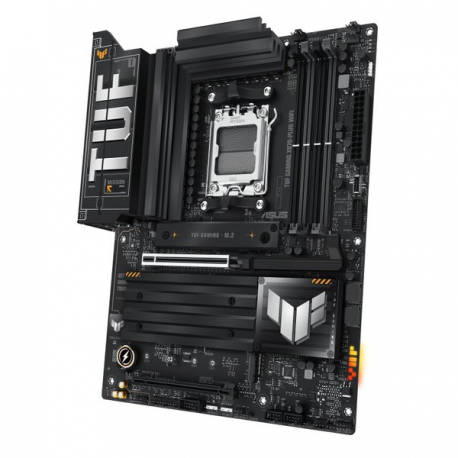

ASUS TUF GAMING X870-PLUS WIFI - Motherboard - ATX - Socket AM5 - AMD X870 Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS TUF GAMING X870-PLUS WIFI - Motherboard - ATX - Socket AM5 - AMD X870 Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASUS
Reference
•90MB1IU0-M0EAY0
Article
•4149779
Intrastat
•84717020
Shipping weight
•2.19 kg
Total quantity in stocks
•9
Nearest delivery
•21.04.2026
Product Type
Motherboard - ATX
Chipset Type
AMD X870
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
(supports Ryzen 7000/8000/9000 Series)
Max Size
192 GB
Technology
DDR5
Bus Clock
4000 MHz (O.C.)
Supported RAM Integrity Check
On-die ECC, non-ECC, ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1220P
Compliant Standards
High Definition Audio
Network Interfaces
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
3 x M.2 socket (2280 M.2 Key M slot)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1
PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features
AMD RAID Xpert2 Technology

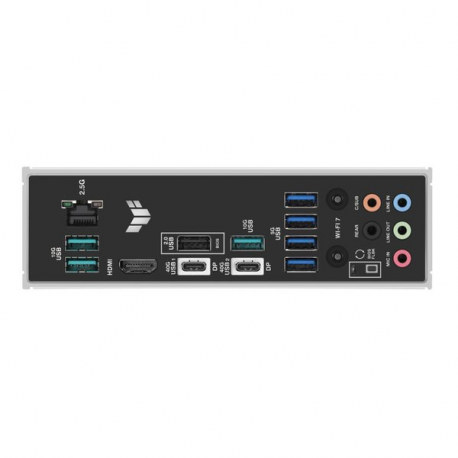

Interfaces
1 x HDMI
2 x aerial
2 x Thunderbolt 4/DisplayPort/USB4
3 x USB-C 3.2 Gen 2
4 x USB 3.2 Gen 1
1 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x audio line-in - mini-jack
1 x microphone - mini-jack
1 x audio line-out - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (rear) - mini-jack
Internal Interfaces
4 x USB 2.0 - header
2 x USB 3.2 Gen 1 - header
1 x USB-C 3.2 Gen 2x2 - header
1 x serial - header
1 x audio - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), TUF LANGuard, BIOS FlashBack button, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ASUS TUF Protection, BIOS FlashBack LED, ESD Guards, M.2 heatsink, M.2 Q-Latch, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, VRM heatsink design, 16+2+1 Phase Power Design, AI Overclocking, AI Cooling II, AI Networking II, chipset heatsink, AMD Precision Boost Overdrive (PBO), 8 Layer PCB
Included Accessories
2 x M.2 rubber package, ASUS Wi-Fi Q-antenna, M.2 screw package, TUF GAMING sticker
Cables Included
2 x Serial ATA cable
Software Included
Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, ASUS TUF GAMING CPU-Z, DTS Audio Processing, Norton 360 for Gamers (60 days trial), TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)
Width
30.5 cm
Depth
24.4 cm
