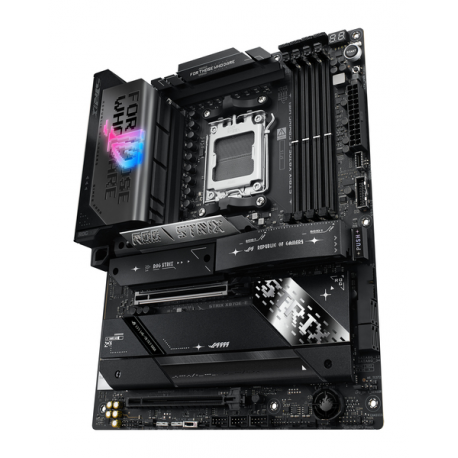

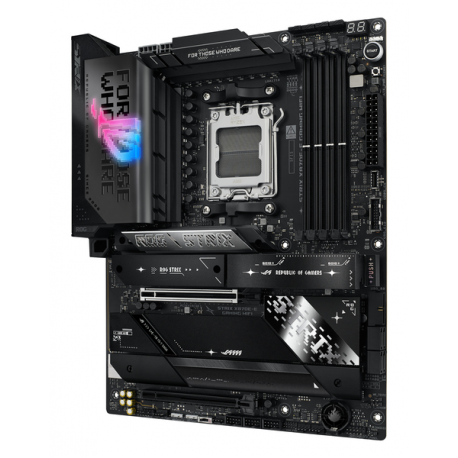

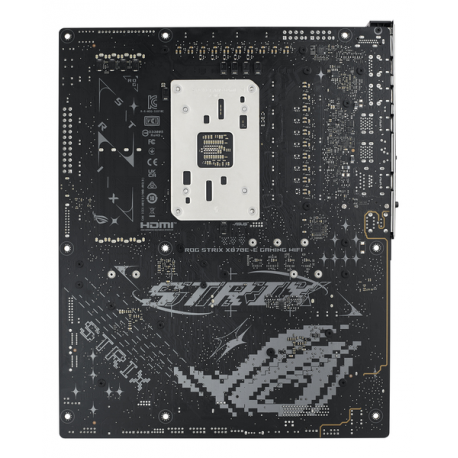

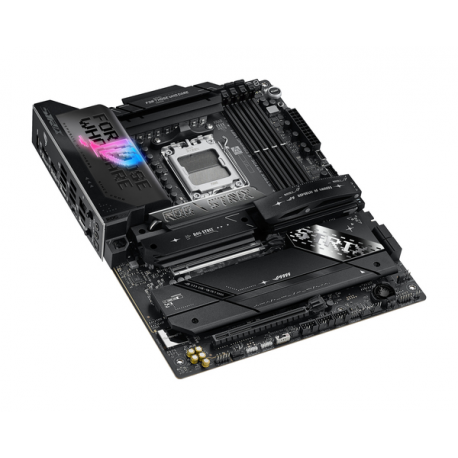

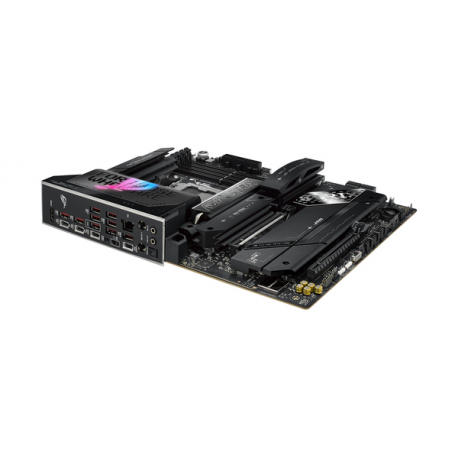

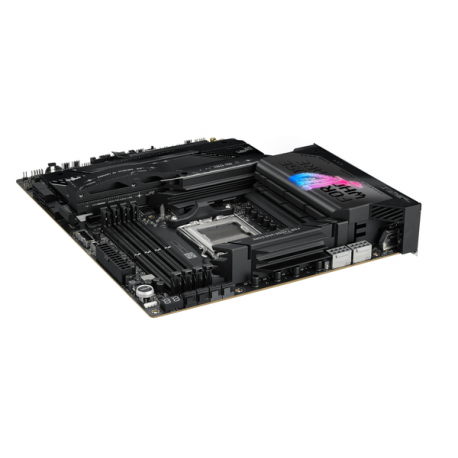

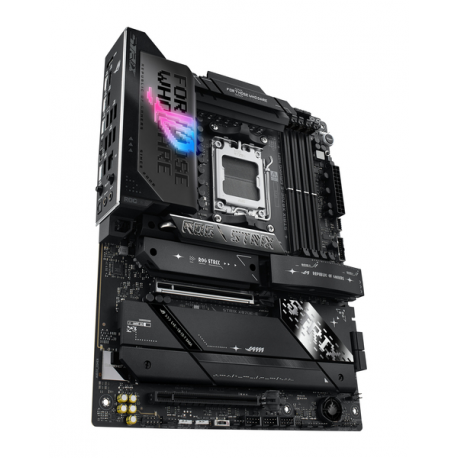

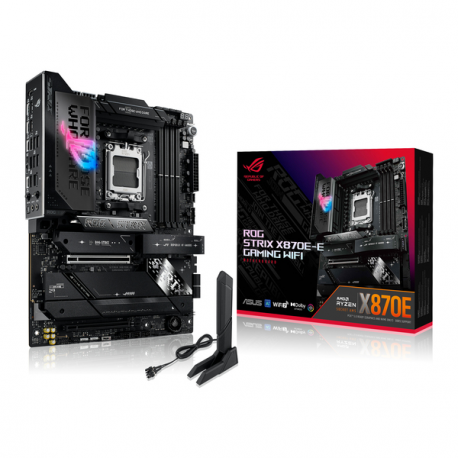

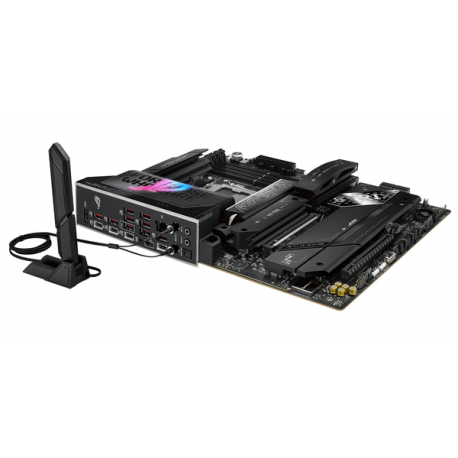

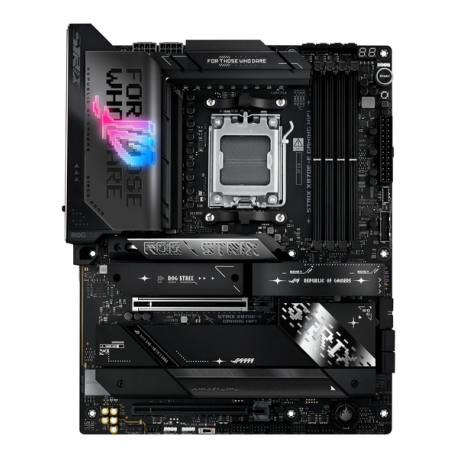

ASUS ROG STRIX X870E-E GAMING WIFI - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 5 Gigabit Ethernet, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS ROG STRIX X870E-E GAMING WIFI - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 5 Gigabit Ethernet, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASUS
Reference
•90MB1IB0-M0EAY0
Article
•4153313
Intrastat
•84717020
Total quantity in stocks
•12
Nearest delivery
•16.03.2026
Product Type
Motherboard - ATX
Chipset Type
AMD X870E
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000/9000 Series)
Max Size
192 GB
Technology
DDR5
Bus Clock
4000 MHz (O.C.), 4200 MHz (O.C.)
Supported RAM Integrity Check
On-die ECC, non-ECC, ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC4080
Compliant Standards
High Definition Audio
Network Interfaces
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet, Bluetooth 5.4
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x8/x4 mode)
1 x PCIe 4.0 x16 (x4 mode)
4 x M.2 socket (2242/2260/2280 M.2 Key M slot)
2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
2 x M.2 socket (2280 M.2 slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 3 x M.2
PCIe 5.0 -connectors: 3 x M.2
RAID Features
AMD RAID Xpert2 Technology

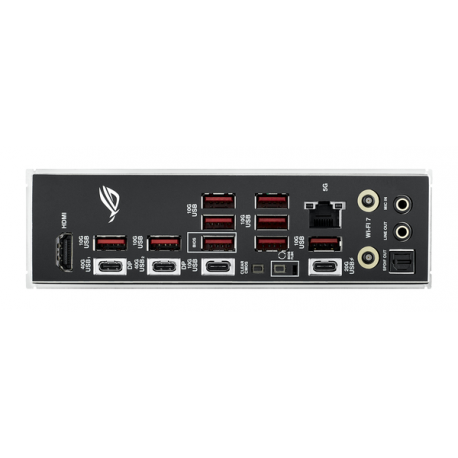

Interfaces
2 x aerial
1 x HDMI
1 x LAN (5Gigabit Ethernet)
2 x USB4
1 x USB-C 3.2 Gen2x2
1 x USB-C 3.2 Gen 2
9 x USB 3.2 Gen 2
1 x SPDIF out
1 x microphone - mini-jack
1 x audio line-out - mini-jack
Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header
4 x USB 3.2 Gen 1 - header
6 x USB 2.0 - header
1 x audio - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
CrashFree BIOS 3, ASUS EZ DIY, 18+2+2 Phase Power Design, 5K Black Metallic Capacitors, ASUS Extreme Engine Digi+, ASUS Q-Design, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Code, Q-Dashboard, Q-DIMM, Q-LED, Q-Slot, M.2 heatsink backplate, VRM heatsink design, BIOS FlashBack button, Clear CMOS Button, ASUS ProCool II, pre-mounted I/O shield, ASUS SafeSlot, SafeDIMM, ASUS Aura Sync

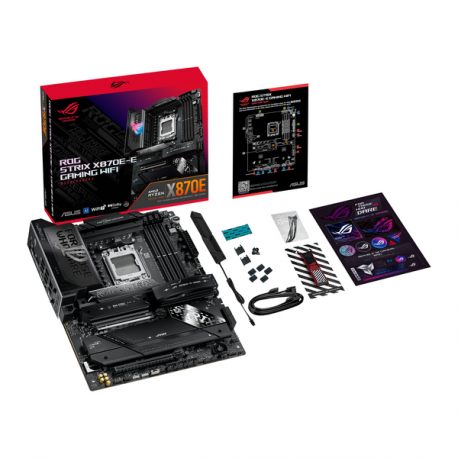

Included Accessories
ASUS Wi-Fi moving aerial, cable ties, M.2 Q-Latch, ROG key chain, 2 x M.2 Q-Slides, ROG Strix sticker, 5 x M.2 rubbers
Cables Included
2 x Serial ATA cable
Software Included
ROG CPU-Z, Armoury Crate, AIDA64 Extreme (60 days trial), ASUS AURA Creator, ASUS Fan Xpert 4, ROG GameFirst Utility, HWiNFO, ASUS GlideX, TurboV Core, ASUS DriverHub, USB Wattage Watcher, Adobe Creative Cloud (free trial), Norton 360 for Gamers (60 days trial), WinRAR (40 days trial)
Width
30.5 cm
Depth
24.4 cm
