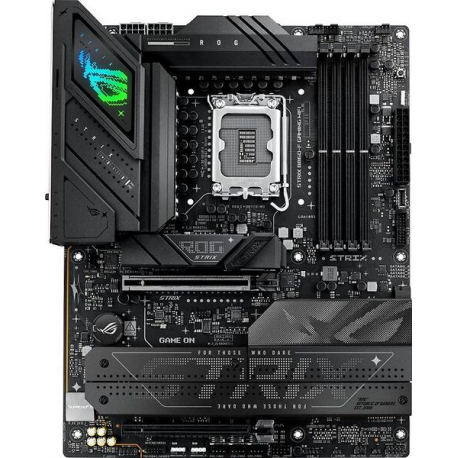

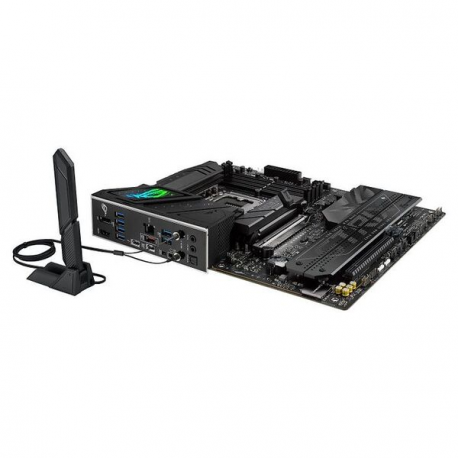

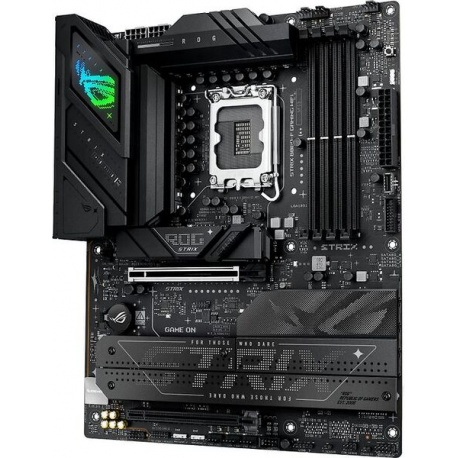

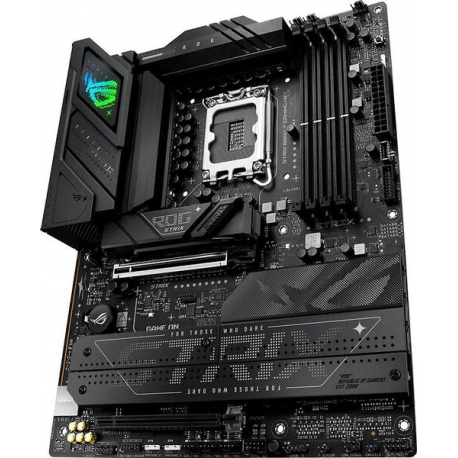

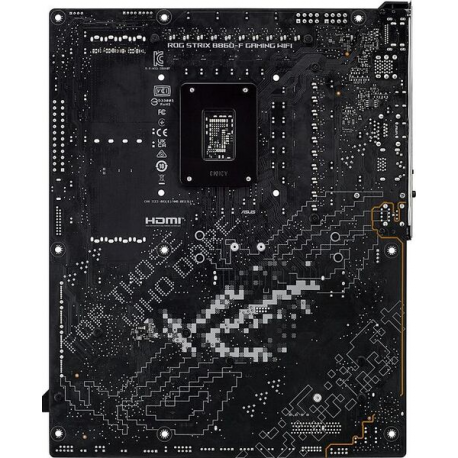

ASUS ROG STRIX B860-F GAMING WIFI - Motherboard - ATX - LGA1851 Socket - B860 Chipset - USB4, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS ROG STRIX B860-F GAMING WIFI - Motherboard - ATX - LGA1851 Socket - B860 Chipset - USB4, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 - Wi-Fi 7, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASUS
Reference
•90MB1JG0-M0EAY0
Article
•4200639
Intrastat
•84717020
Total quantity in stocks
•9
Nearest delivery
•21.04.2026
Product Type
Motherboard - ATX
Chipset Type
Intel B860
Processor Socket
LGA1851 Socket
Max Processors Qty
1
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Max Size
256 GB
Technology
DDR5
Bus Clock
4533 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered, clocked unbuffered
Features
Intel Extreme Memory Profiles (XMP), dual channel memory architecture
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC4080
Compliant Standards
High Definition Audio, Dolby Atmos
Network Interfaces
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, Bluetooth 5.4
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 3 x M.2
RAID Features
Intel Rapid Storage Technology
Interfaces

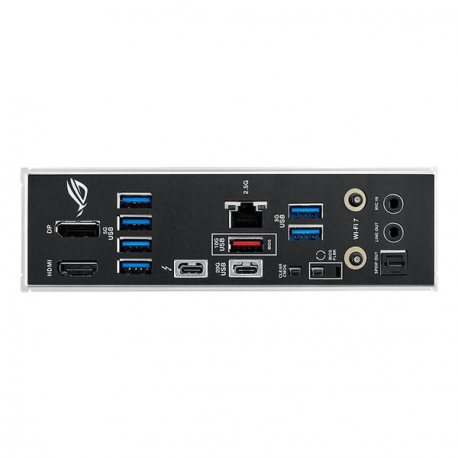

1 x LAN (2.5Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x Thunderbolt 4 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB 3.2 Gen 2 ¦ 6 x USB 3.2 Gen 1 ¦ 2 x aerial ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 3 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt 4 - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode
Hardware Features
Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS Enhanced Memory Profile (AEMP) III, CUDIMM support, Clear CMOS Button, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, ASUS Q-Design, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim, Q-Antenna, Q-Dashboard, Q-Slot, M.2 heatsink backplate, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, BIOS FlashBack button, BIOS FlashBack LED, CPU Socket lever protector, ASUS ProCool, pre-mounted I/O shield, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, 16+1+2+1 Phase Power Design, 80A Power Stage, NPU Boost

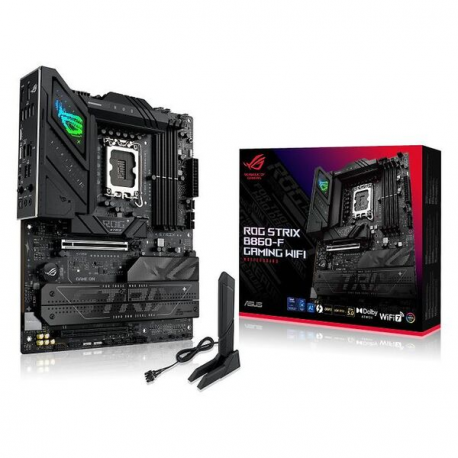

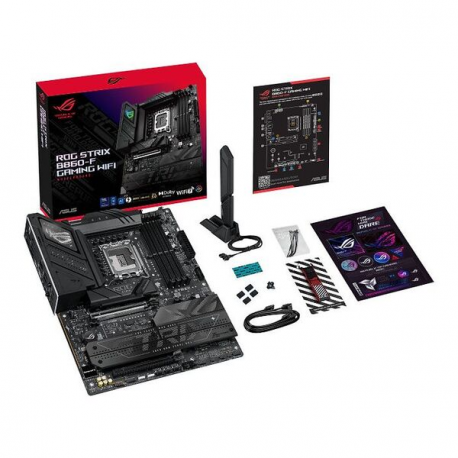

Included Accessories
ASUS Wi-Fi Q-antenna, cable ties, M.2 Q-Latch, M.2 Q-Slide, ROG key chain, ROG Strix sticker, 4 x M.2 rubbers
Cables Included
2 x Serial ATA cable
Software Included
Armoury Crate, ROG CPU-Z, ASUS Fan Xpert 4, AIDA64 Extreme (60 days trial), HWiNFO, ASUS GlideX, TurboV Core, Adobe Creative Cloud (1 month trial), Norton 360 for Gamers (60 days trial), WinRAR (40 days trial)
Width
30.5 cm
Depth
24.4 cm
Package Details
Box
