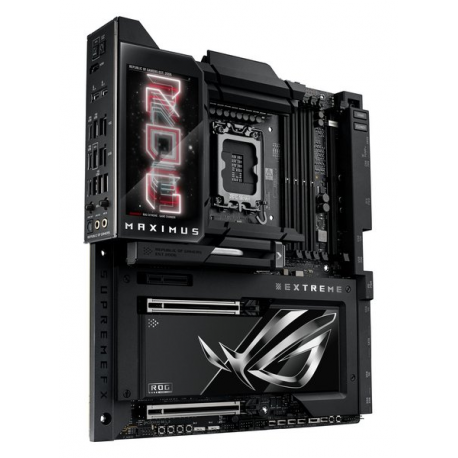

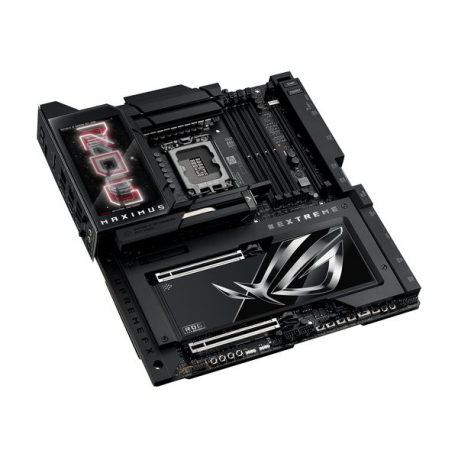

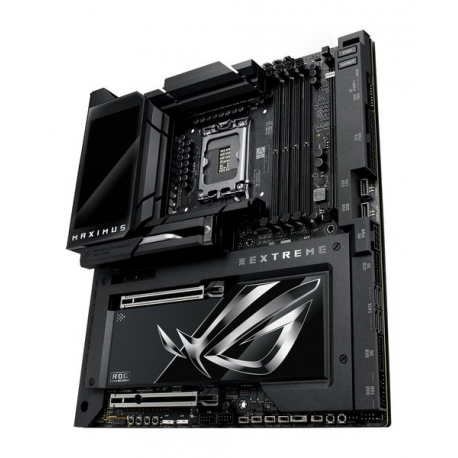

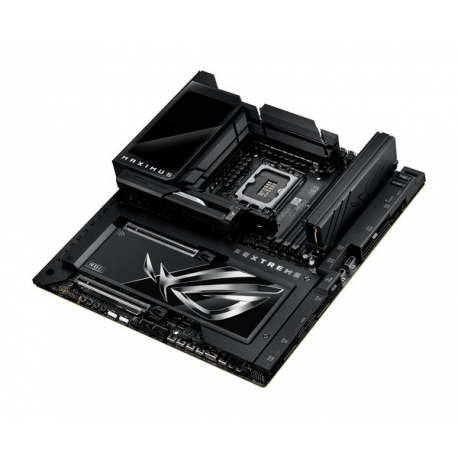

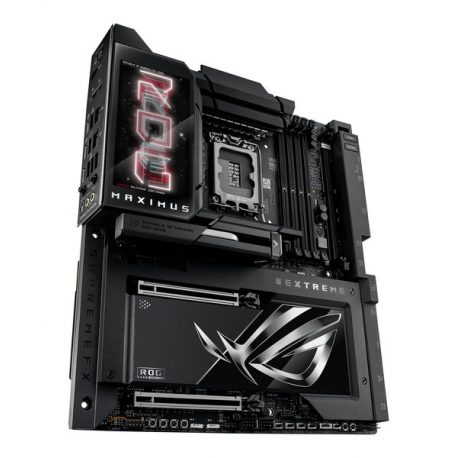

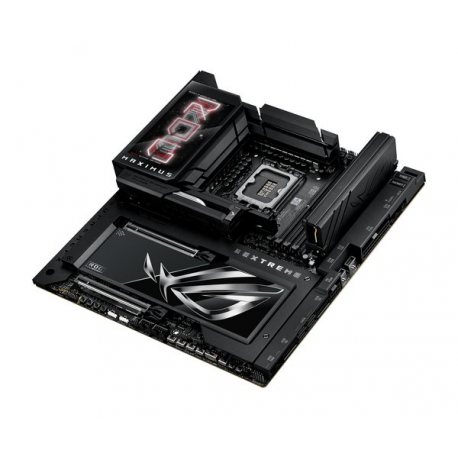

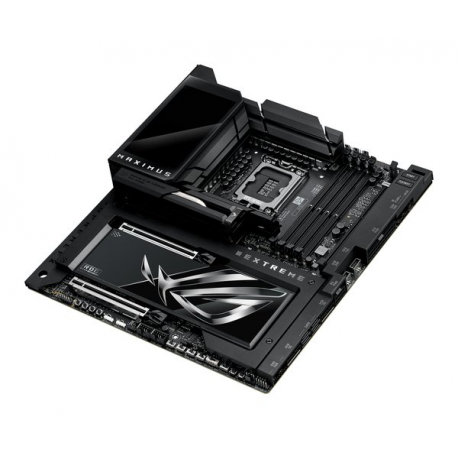

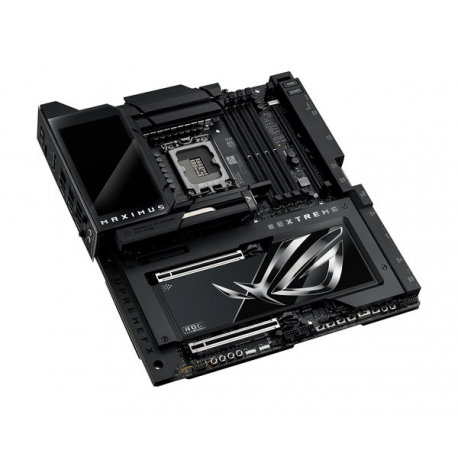

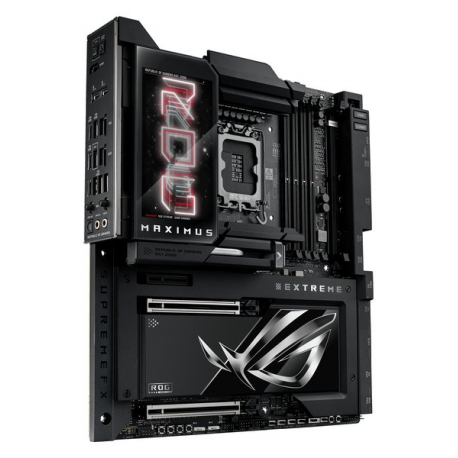

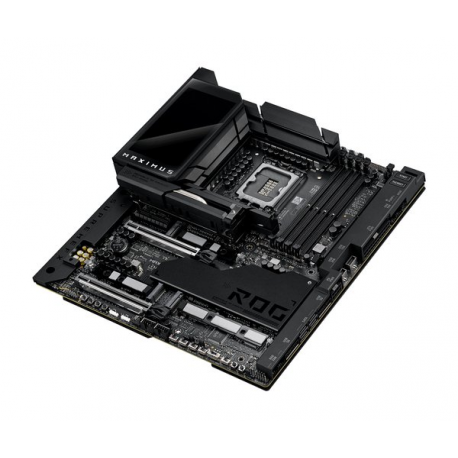

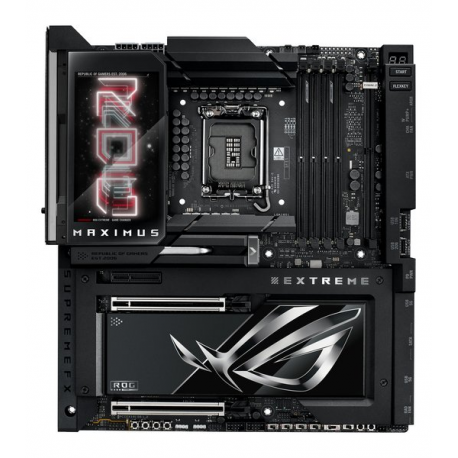

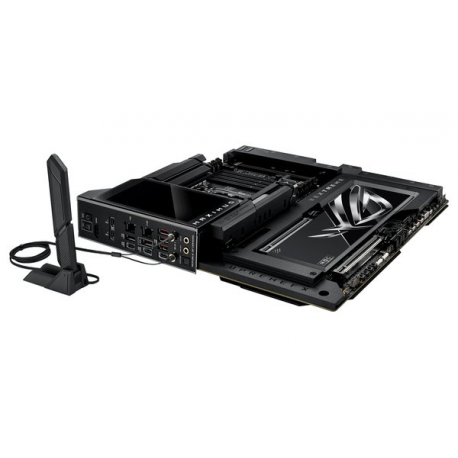

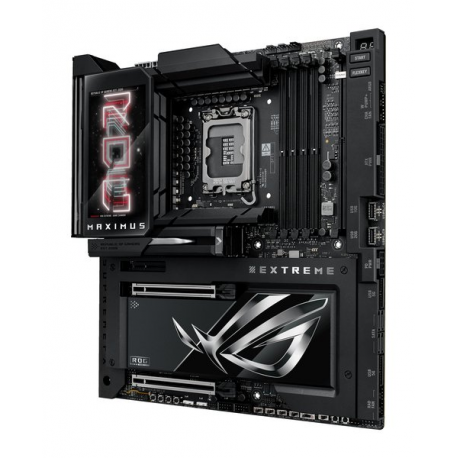

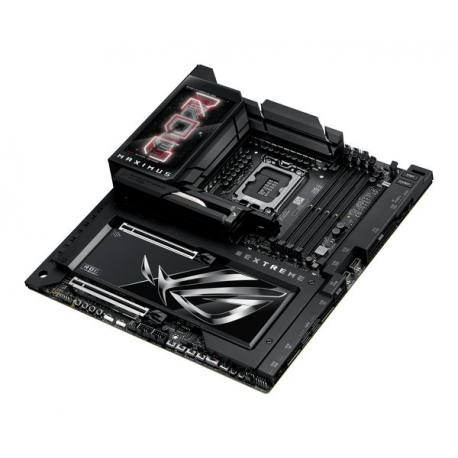

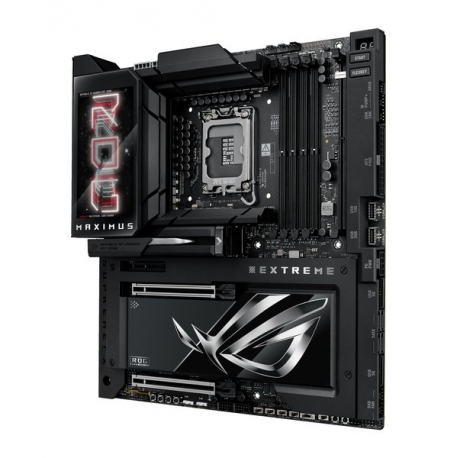

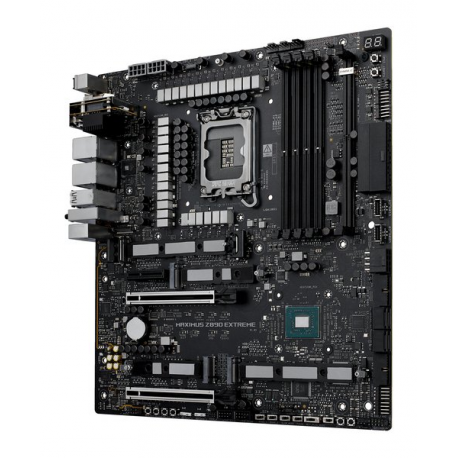

Motherboard - ATX

Intel Z890

LGA1851 Socket

1

(supports Intel Core Ultra processors (Series 2))

192 GB

DDR5

4600 MHz (O.C.)

Non-ECC

Unbuffered

Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), NitroPath technology

HD Audio (8-channel)

SupremeFX ALC4082 / ESS ES9219

High Definition Audio, Dolby Atmos

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 10 Gigabit Ethernet

1 x CPU 4 x DIMM 288-pin 2 x PCIe 5.0 x16 1 x PCIe 4.0 x4 4 x M.2 socket (2242/2260/2280 M.2 Key M slot) 2 x DIMM.2 socket (2242/2260/2280/22110 M.2 Key M slot)

SATA-600 -connectors: 4 x 7pin Serial ATA PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5

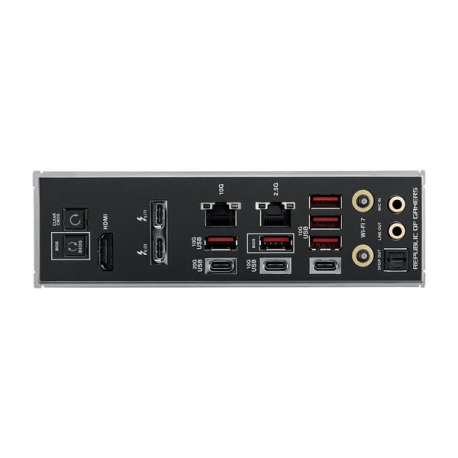

1 x LAN (2.5Gigabit Ethernet) 1 x LAN (10Gigabit Ethernet) 1 x HDMI 2 x aerial 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x SPDIF out 2 x Thunderbolt 5 5 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen2x2 2 x USB-C 3.2 Gen 2

1 x USB-C 3.2 Gen 2x2 - header 1 x USB-C 3.2 Gen 2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x Thunderbolt 5 - header

24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector

AMI

UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode

Wake on LAN (WOL), wake on PME

Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS Enhanced Memory Profile (AEMP) III, CUDIMM support, CrashFree BIOS 3, Quick Charge 4+, LANGuard, BIOS FlashBack button, Clear CMOS Button, ReTry button, Start button, ASUS Extreme OC Kit, 10K Black Metallic Capacitors, ASUS Aura Sync, ASUS Extreme Engine Digi+, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Connector, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, CPU Socket lever protector, M.2 heatsink, M.2 heatsink backplate, M.2 Q-Latch, M.2 Q-Release, metal backplate, MicroFine Alloy Chokes, pre-mounted I/O shield, Q-Antenna, Q-Code, Q-Dashboard, Q-LED, Q-Release Slim, Q-Slot, VRM heatsink design, ROG M.2 PowerBoost, AI Cooling II, 24+1+2+2 Phase Power Design, AI Networking II, AI Overclocking, DIY Friendly Design, chipset heatsink, 4 BCLK buttons, LN2 Switch, ProbeIt, RSVD switch, Safe boot button, Slow Mode switch, dual BIOS, 5" LCD full-colour display

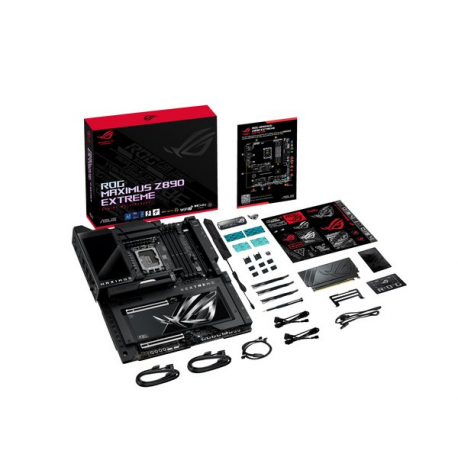

ARGB RGB extension cable, DDR5 fan holder, 2 x thermal pads for M.2 SSD, ASUS Wi-Fi Q-antenna, Q-Connector, M.2 Q-Latch, 2 x M.2 Q-Slide, ROG stickers, 6 x M.2 backplate rubber package, ROG thank you card, ROG bottle opener, USB drive, ROG Q-DIMM.2 with heatsink, ROG screwdriver, ROG VIP card

4 x SATA Express cable

ROG CPU-Z, AIDA64 Extreme (1 year licence), Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, Adobe Creative Cloud (free trial), ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, HWiNFO, ROG GameFirst Utility, Thunderbolt Share, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)

DisplayPort 2.1

30.5 cm

24.4 cm
