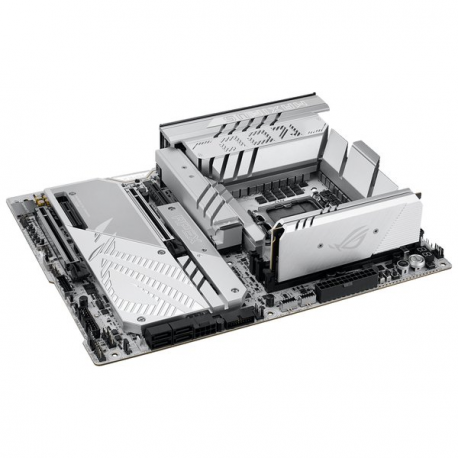

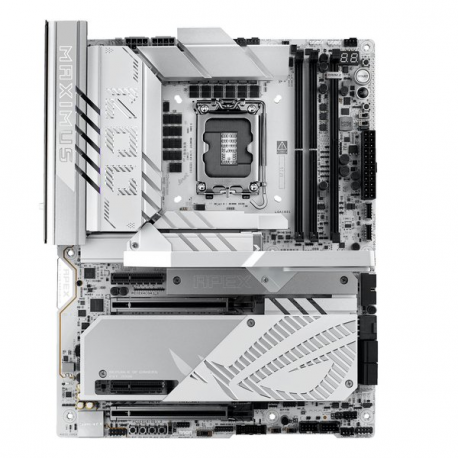

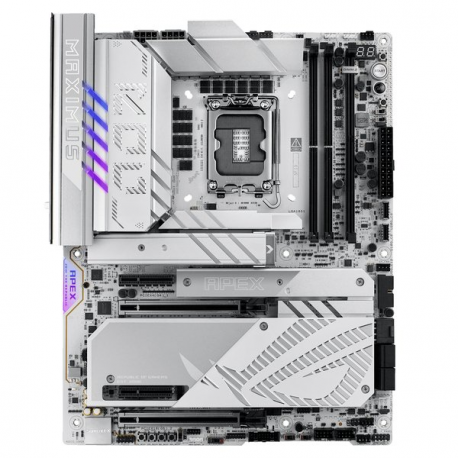

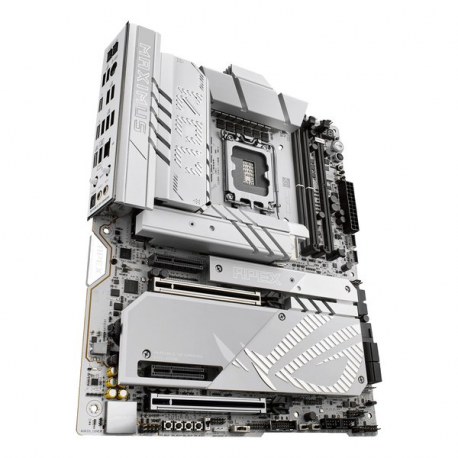

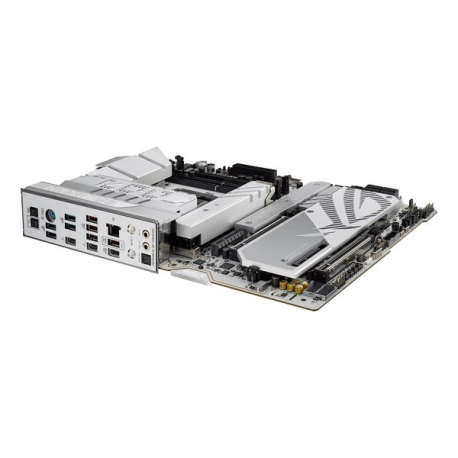

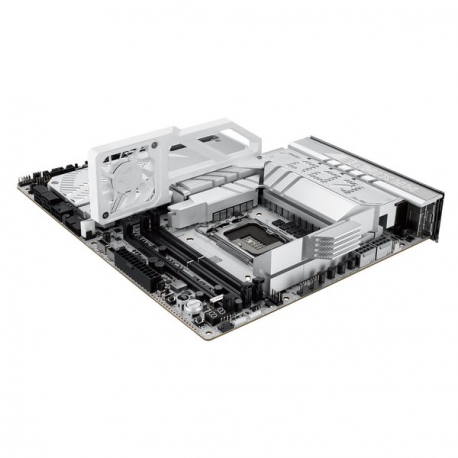

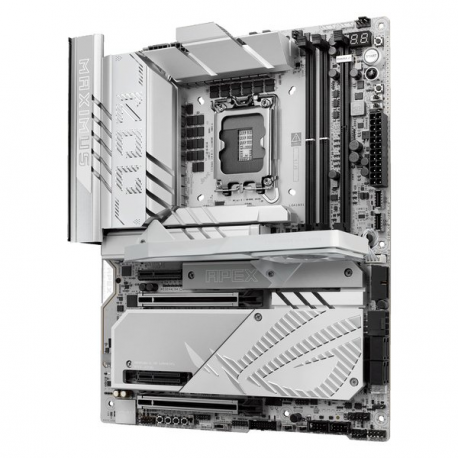

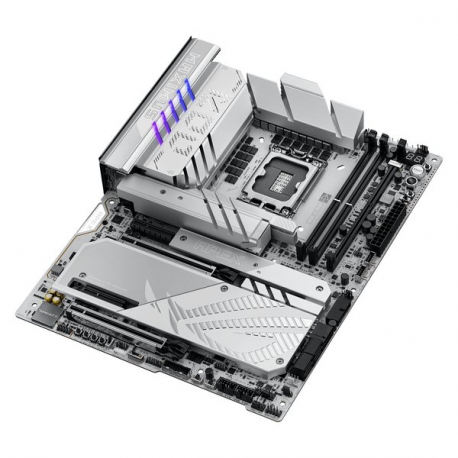

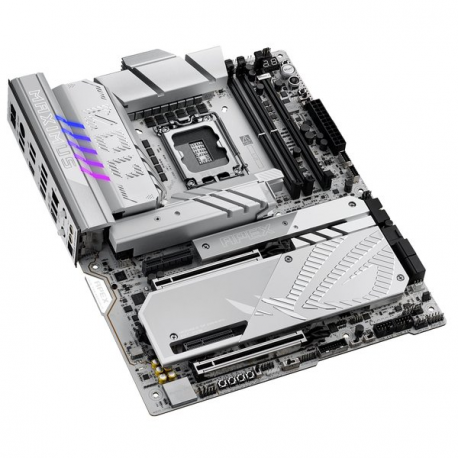

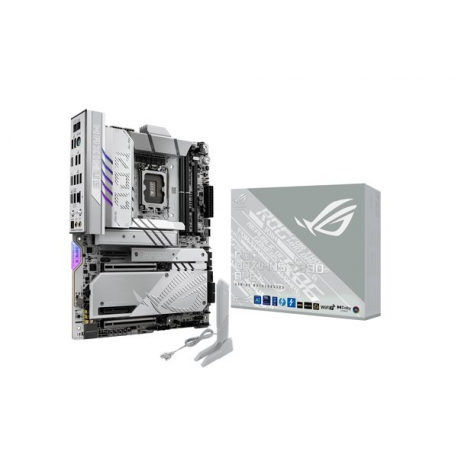

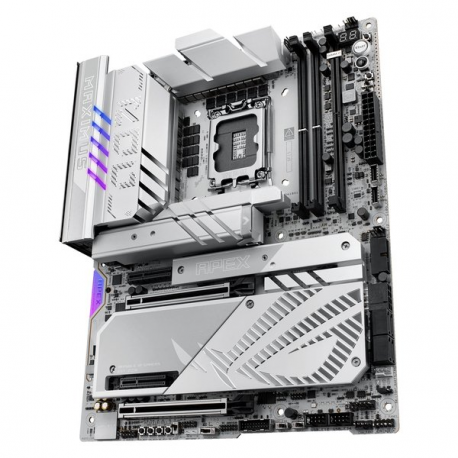

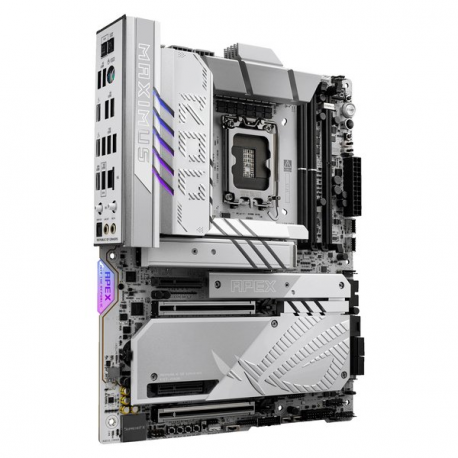

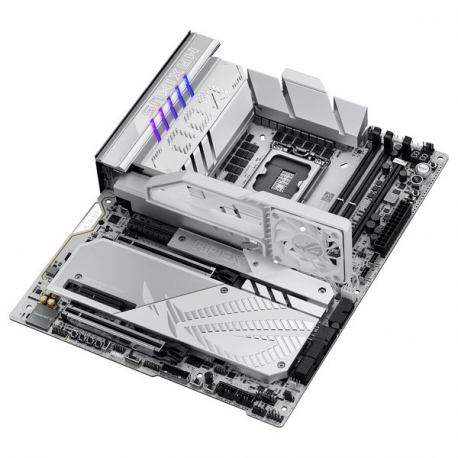

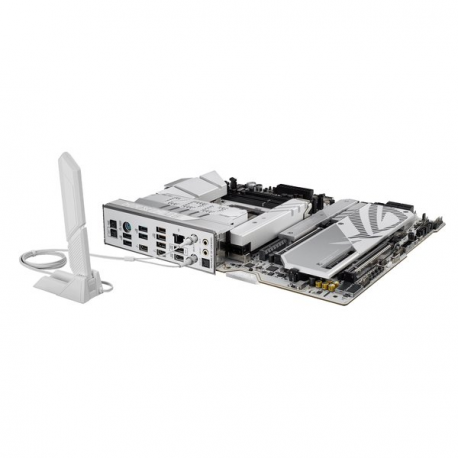

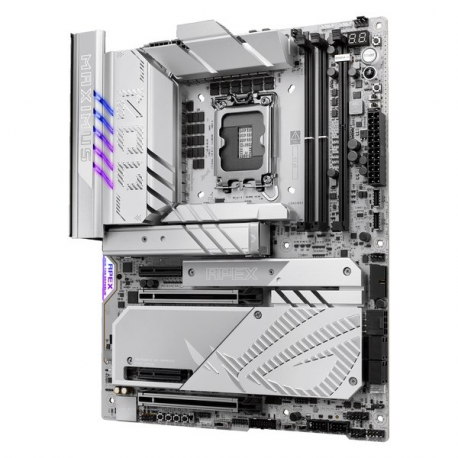

ASUS ROG MAXIMUS Z890 APEX - Motherboard - ATX - LGA1851 Socket - Z890 Chipset - USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 1 - 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS ROG MAXIMUS Z890 APEX - Motherboard - ATX - LGA1851 Socket - Z890 Chipset - USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 1 - 5 Gigabit Ethernet, Wi-Fi 7, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASUS
Reference
•90MB1IP0-M0EAY0
Article
•4165725
Intrastat
•84717020
Shipping weight
•3 kg
Total quantity in stocks
•1
Nearest delivery
•30.03.2026
Product Type
Motherboard - ATX
Chipset Type
Intel Z890
Processor Socket
LGA1851 Socket
Max Processors Qty
1
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Max Size
96 GB
Technology
DDR5
Bus Clock
4800 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Type
HD Audio (8-channel)
Audio Codec
SupremeFX (ALC4080)
Compliant Standards
High Definition Audio, Dolby Atmos
Network Interfaces
5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Expansion Slots
1 x CPU
2 x DIMM 288-pin
2 x PCIe 5.0 x16
2 x PCIe 4.0 x4
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
3 x M.2 socket (2242/2260/2280 M.2 Key M slot)
2 x DIMM.2 socket (2230/2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA
PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

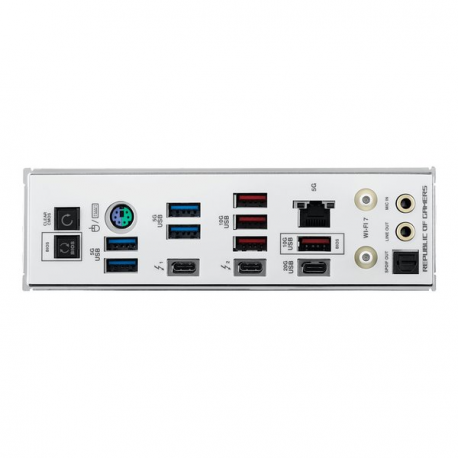

Interfaces
2 x Thunderbolt 4/DisplayPort/USB4
1 x USB-C 3.2 Gen2x2
4 x USB 3.2 Gen 2
4 x USB 3.2 Gen 1
2 x aerial
1 x LAN (5Gigabit Ethernet)
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x SPDIF out
1 x PS/2 keyboard / mouse
Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header
1 x USB-C 3.2 Gen 2 - header
4 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x Thunderbolt 4 - header
1 x audio - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, CrashFree BIOS 3, ASUS Enhanced Memory Profile (AEMP) III, CUDIMM support, LANGuard, FlexKey button, LN2 Switch, ASUS Extreme Engine Digi+, ASUS Extreme OC Kit, ReTry button, ProbeIt, Safe boot button, Slow Mode switch, Start button, MicroFine Alloy Chokes, SMD Capacitor, ASUS Q-Design, M.2 Q-Latch, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Connector, ASUS SafeDIMM, ASUS SafeSlot, BIOS FlashBack button, Clear CMOS Button, CPU Socket lever protector, DualBIOS, M.2 heatsink backplate, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Code, Q-Dashboard, Q-DIMM, Q-LED, Q-Release Slim, Q-Slot, Quick Charge 4+, VRM heatsink design, 22+1+2+2 Phase Power Design, AI Cooling II, AI Networking II, AI Overclocking, NPU Boost, chipset heatsink

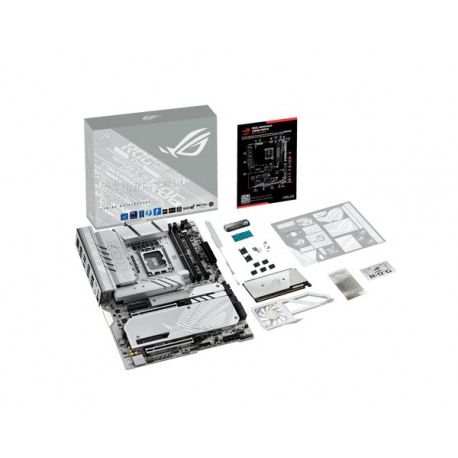

Included Accessories
2 ROG DIMM.2 M.2 screw packages, ROG DIMM.2 M.2 pad, ROG DIMM.2 with heatsink, thermal pad for M.2 SSD, ROG Memory Fan Kit, ASUS Wi-Fi Q-antenna, Q-Connector, ROG VIP card, 3 x M.2 Q-Slide, 5 x M.2 backplate rubber package, ROG bottle opener, USB drive
Software Included
ROG CPU-Z, Armoury Crate, Drivers & Utilities, Adobe Creative Cloud (free trial), AIDA64 Extreme (1 year licence), ASUS AI Advisor, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, ROG GameFirst Utility, TurboV Core, Thunderbolt Share, USB Wattage Watcher, WinRAR (40 days trial)
Compliant Standards
DisplayPort 2.1
Width
30.5 cm
Depth
24.4 cm
