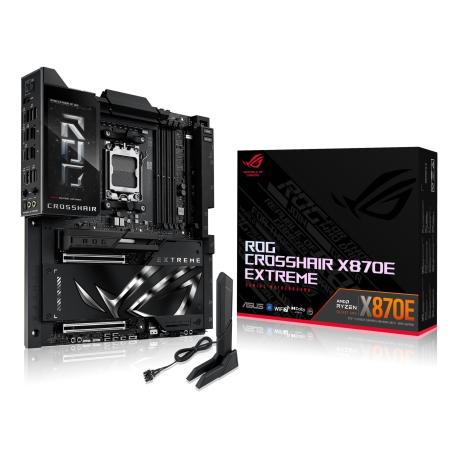

ASUS ROG CROSSHAIR X870E EXTREME - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 - Wi-Fi 7, Bluetooth, 5 Gigabit Ethernet, 10 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS ROG CROSSHAIR X870E EXTREME - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1 - Wi-Fi 7, Bluetooth, 5 Gigabit Ethernet, 10 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASUS
Reference
•ROG CROSSHAIR X870E EXTREME
Article
•4455023
Intrastat
•84717020
Shipping weight
•5.661 kg
Total quantity in stocks
•5
Nearest delivery
•16.03.2026
Product Type
Motherboard - ATX
Chipset Type
AMD X870E
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000/9000 Series)
Max Size
256 GB
Technology
DDR5
Bus Clock
8200 MT/s (O.C.), 9000 MT/s (O.C.), 8000 MT/s (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, AMD EXPO technology
Type
HD Audio (8-channel)
Audio Codec
SupremeFX ALC4082 / ESS ES9219
Compliant Standards
High Definition Audio, Dolby Atmos
Network Controller
Marvell AQtion
Network Interfaces
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet, 10 Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 ¦ 2 x M.2 socket (22110 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 slot) ¦ 2 x DIMM.2 socket (22110 M.2 Key M slot) ¦ 1 x PCIe 4.0 x4 (SlimSAS)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 3 x M.2 ¦ PCIe 4.0 -connectors: 2 x M.2 ¦ PCIe 4.0 -connectors: 1 x SlimSAS
RAID Features
AMD RAID Xpert2 Technology
Interfaces
2 x USB4 ¦ 2 x USB-C 3.2 Gen 2 ¦ 8 x USB 3.2 Gen 2 ¦ 1 x HDMI ¦ 1 x LAN (5Gigabit Ethernet) ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x audio line-out ¦ 1 x microphone ¦ 1 x SPDIF out
Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x USB 3.2 Gen 2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), Clear CMOS Button, BIOS FlashBack button, 10K Black Metallic Capacitors, ASUS Aura Sync, ASUS Extreme Engine Digi+, ASUS Extreme OC Kit, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Connector, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, FlexKey button, M.2 heatsink, M.2 heatsink backplate, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, metal backplate, MicroFine Alloy Chokes, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Code, Q-Dashboard, Q-LED, Q-Release Slim, Q-Slot, Quick Charge 4+, Start button, VRM heatsink design, Polymo Lighting II, 20+2+2 Phase Power Design, AI Cooling II, AI Networking II, AI Overclocking, AMD Precision Boost Overdrive (PBO), Core Flex technology, chipset heatsink
Included Accessories
1 to 2 ARGB LED splitter cable, 1 to 3 ARGB LED splitter cable, 1 to 4 fan splitter cable, 3 in 1 thermistor cables pack, ROG DIMM.2 with heatsink, M.2 pad package for ROG Q-DIMM.2, 2 x thermal pad for ROG Q-DIMM.2, ROG fan kit, ASUS fan holder, thermal pad for M.2 SSD, ASUS Wi-Fi Q-antenna, Q-Connector, ROG logo plate sticker, ROG screwdriver, ROG VIP card, M.2 Q-Slide, 5 x M.2 backplate rubber package, ROG bottle opener, USB drive
Cables Included
4 x Serial ATA cable
Software Included
Adobe Creative Cloud (free trial), AIDA64 Extreme (1 year licence), Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, ROG CPU-Z, ROG GameFirst Utility, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial), Drivers & Utilities
Width
30.5 cm
Depth
24.4 cm
