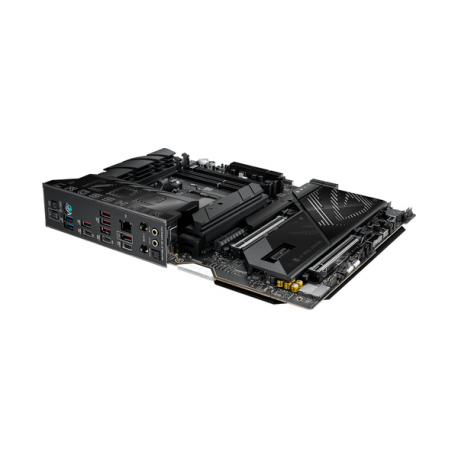

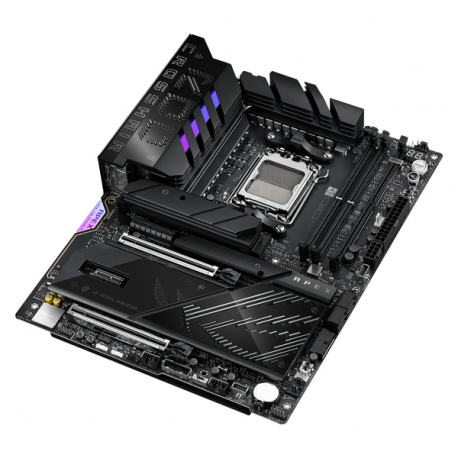

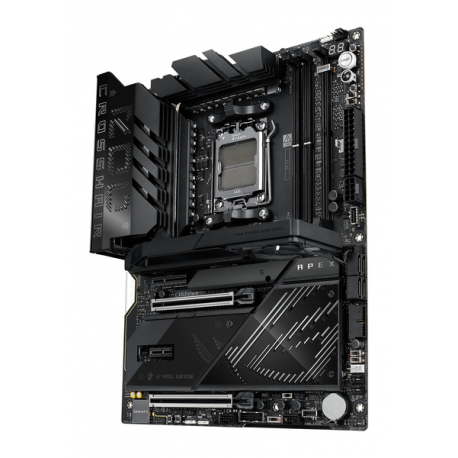

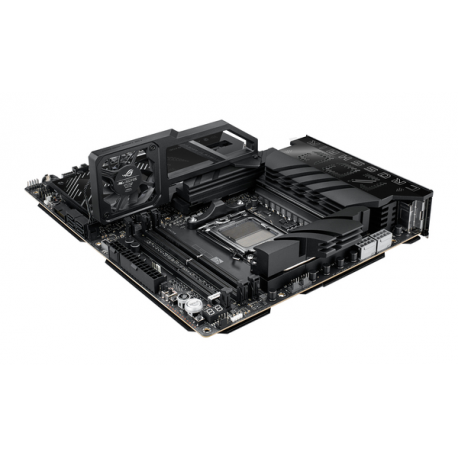

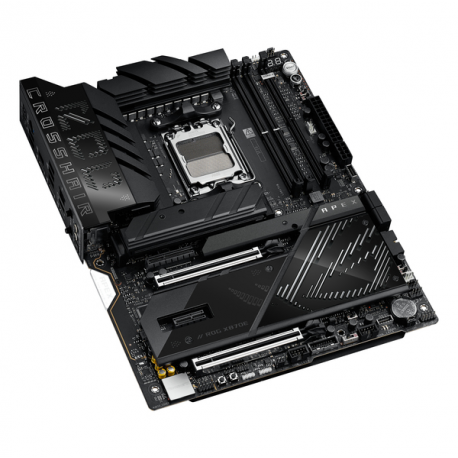

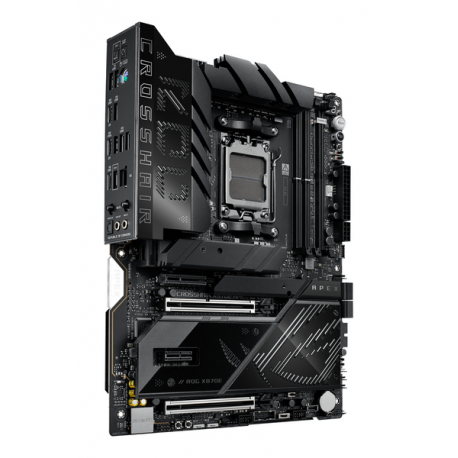

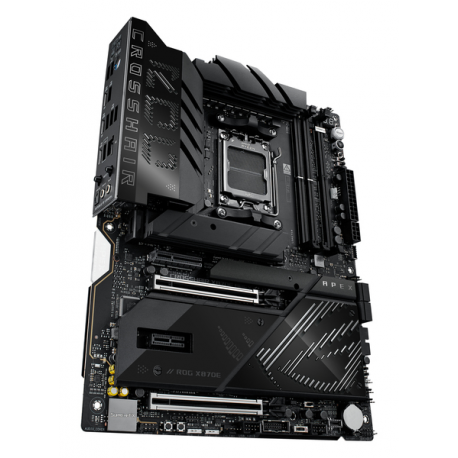

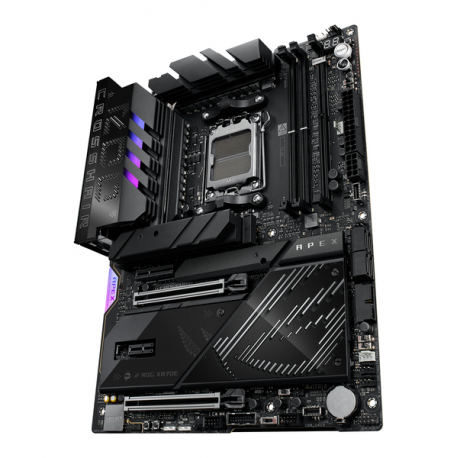

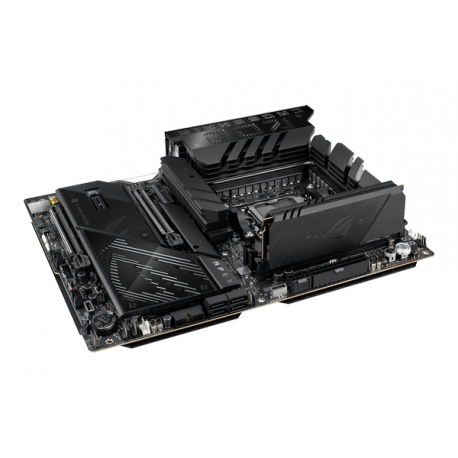

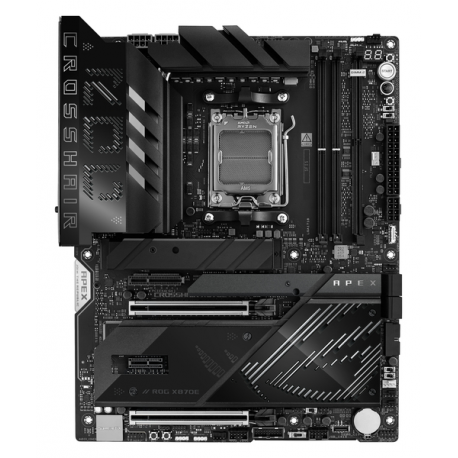

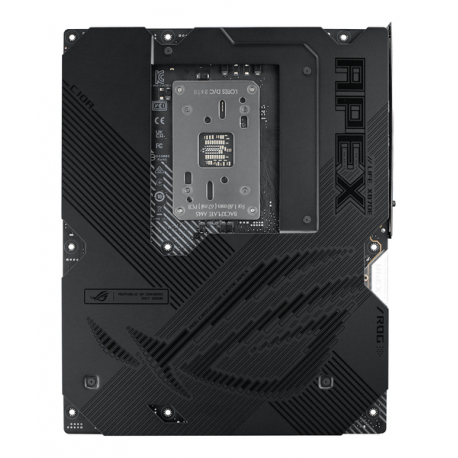

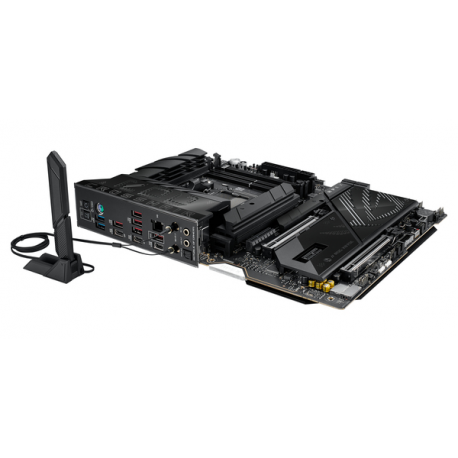

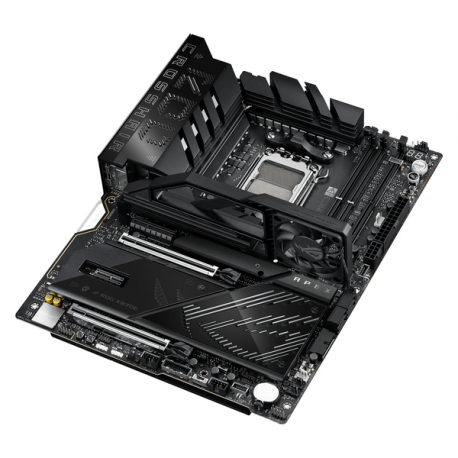

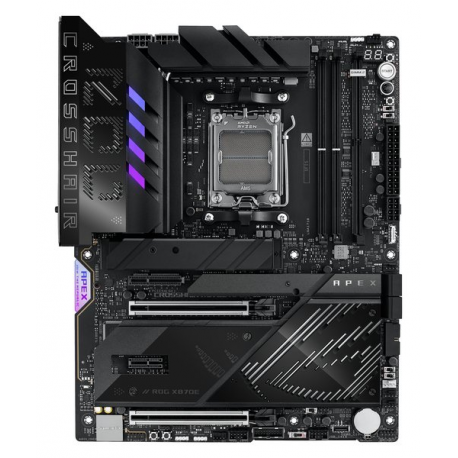

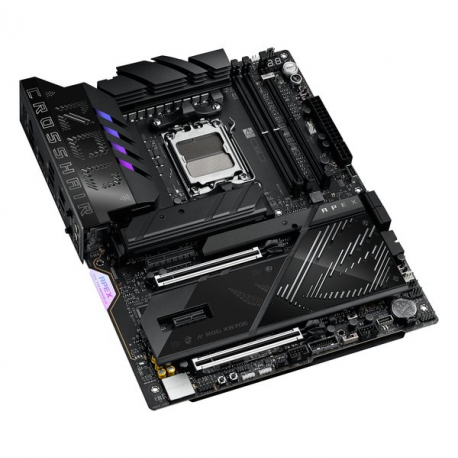

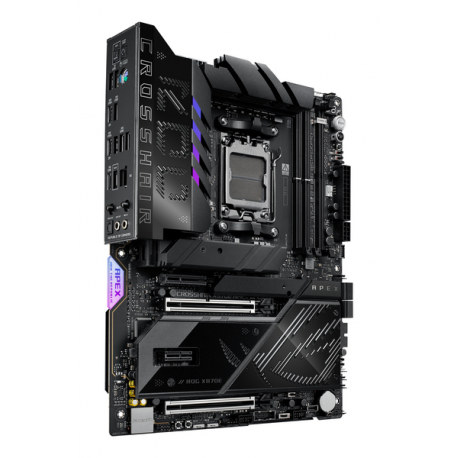

ASUS ROG CROSSHAIR X870E APEX - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - Wi-Fi 7, Bluetooth, 5 Gigabit Ethernet - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS ROG CROSSHAIR X870E APEX - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 - Wi-Fi 7, Bluetooth, 5 Gigabit Ethernet - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASUS
Reference
•90MB1KR0-M0EAY0
Article
•4318046
Intrastat
•84717020
Total quantity in stocks
•5
Nearest delivery
•30.03.2026
Product Type
Motherboard - ATX
Chipset Type
AMD X870E
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000/8000/9000 Series)
Max Size
128 GB
Technology
DDR5
Bus Clock
4100 Mhz (O.C), 4000 MHz (O.C.), 4800 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC, ECC, on-die ECC
Registered or Buffered
Unbuffered
Features
AMD EXPO technology, dual channel memory architecture
Type
HD Audio (8-channel)
Audio Codec
SupremeFX (ALC4080)
Compliant Standards
High Definition Audio
Network Interfaces
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 2 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x4 ¦ 1 x PCIe 3.0 x1 ¦ 3 x M.2 socket (2280 M.2 Key M slot) ¦ 2 x M.2 socket (22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 3 x M.2 ¦ PCIe 4.0 -connectors: 2 x M.2
RAID Features
AMD RAID Xpert2 Technology
Interfaces

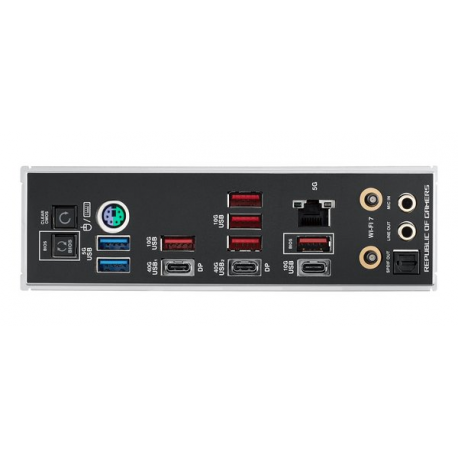

2 x USB4 ¦ 5 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x LAN (5Gigabit Ethernet) ¦ PS/2 keyboard / mouse ¦ 1 x audio line-out ¦ 1 x microphone ¦ 1 x SPDIF out
Internal Interfaces
2 x USB-C 3.2 Gen 2x2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors, 8-pin PCI Express power connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), Clear CMOS Button, BIOS FlashBack button, 10K Black Metallic Capacitors, ASUS Aura Sync, ASUS Extreme Engine Digi+, ASUS Extreme OC Kit, ASUS EZ DIY, ASUS ProCool II, ASUS Q-Connector, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, FlexKey button, M.2 heatsink, M.2 heatsink backplate, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, metal backplate, MicroFine Alloy Chokes, PCIe Slot Q-Release, pre-mounted I/O shield, Q-Antenna, Q-Code, Q-Dashboard, Q-LED, Q-Release Slim, Q-Slot, Quick Charge 4+, Start button, VRM heatsink design, Polymo Lighting II, 18+2+2 Phase Power Design, AI Cooling II, AI Networking II, AI Overclocking, AMD Precision Boost Overdrive (PBO), Core Flex technology, chipset heatsink

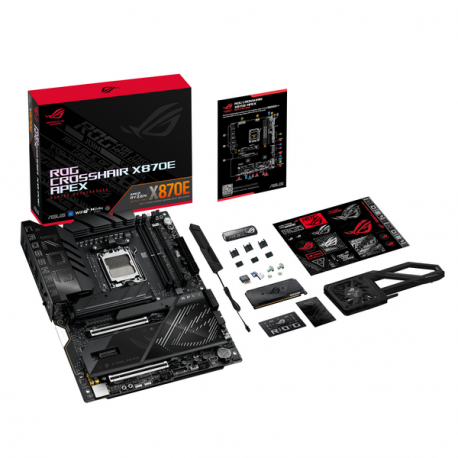

Included Accessories

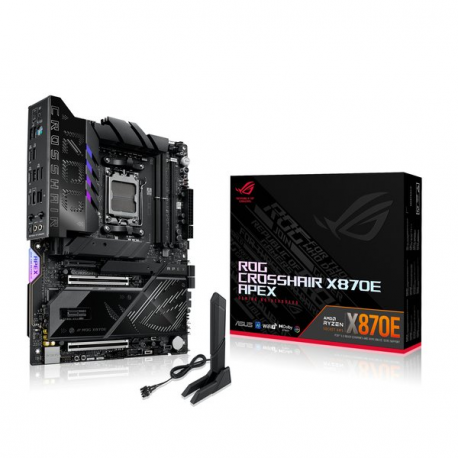

ROG DIMM.2 with heatsink, ROG DIMM.2 M.2 pad, 2 ROG DIMM.2 M.2 screw packages, ROG Memory Fan Kit, Wi-Fi aerial, Q-Connector, 3 x M.2 Q-Slide, 3 x M.2 rubber package, ROG stickers, ROG thank you card, ROG bottle opener, USB drive
Software Included
Adobe Creative Cloud (free trial), AIDA64 Extreme (1 year licence), Armoury Crate, ASUS AURA Creator, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, HWiNFO, ROG CPU-Z, ROG GameFirst Utility, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial), Drivers & Utilities
Width
30.5 cm
Depth
24.4 cm
