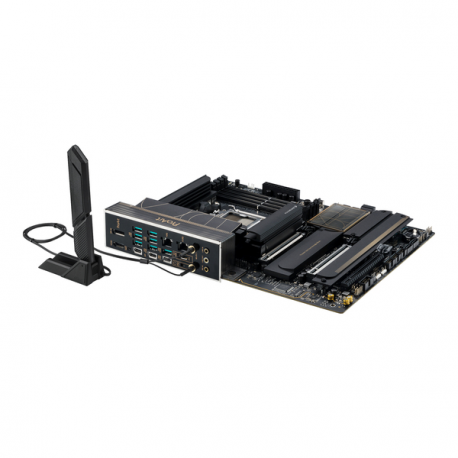

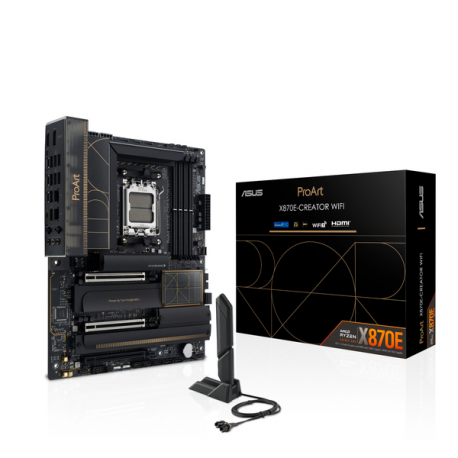

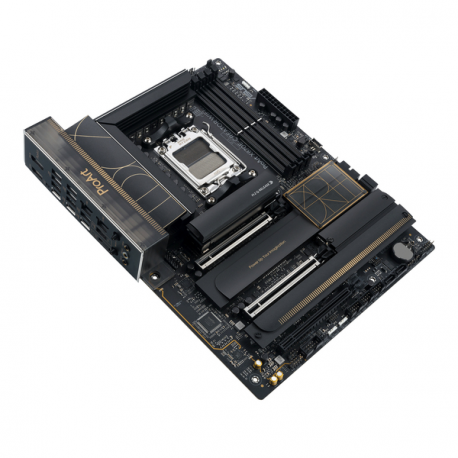

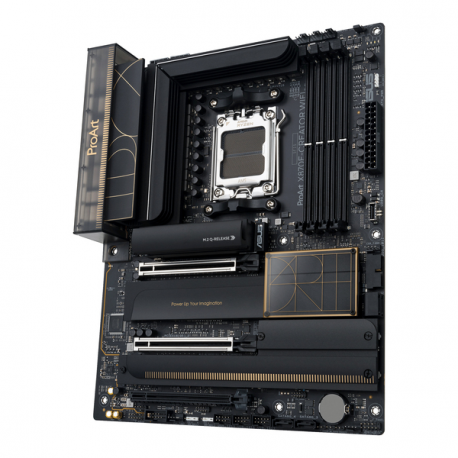

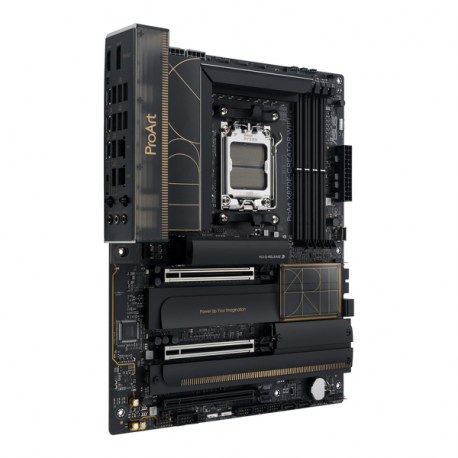

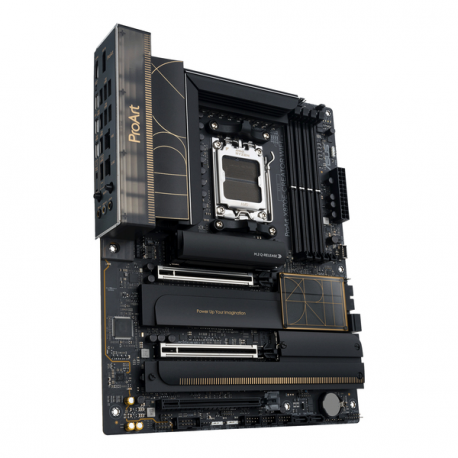

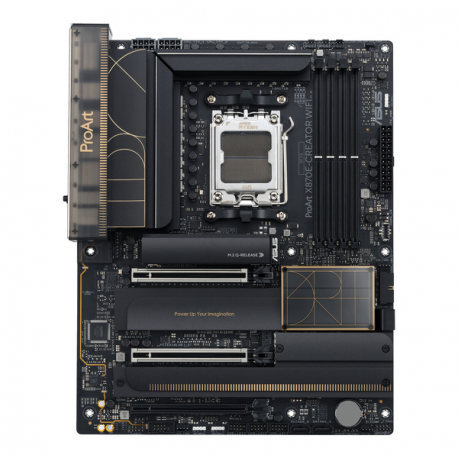

ASUS ProArt X870E-CREATOR WIFI - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 10 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS ProArt X870E-CREATOR WIFI - Motherboard - ATX - Socket AM5 - AMD X870E Chipset - USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB 3.2 Gen 1 - Wi-Fi 7, 10 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASUS
Reference
•90MB1IG0-M0EAY0
Article
•4153311
Intrastat
•84717020
Total quantity in stocks
•34
Nearest delivery
•23.03.2026
Product Type
Motherboard - ATX
Chipset Type
AMD X870E
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
(supports Ryzen 7000/8000/9000 Series)
Max Size
192 GB
Technology
DDR5
Bus Clock
4000 MHz (O.C.)
Supported RAM Integrity Check
On-die ECC, non-ECC, ECC
Registered or Buffered
Unbuffered
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1220P
Compliant Standards
High Definition Audio
Network Interfaces
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 10 Gigabit Ethernet, Bluetooth 5.4
Expansion Slots
1 x CPU
4 x DIMM 288-pin
2 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
3 x M.2 socket (2242/2260/2280 M.2 Key M slot)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features
AMD RAID Xpert2 Technology

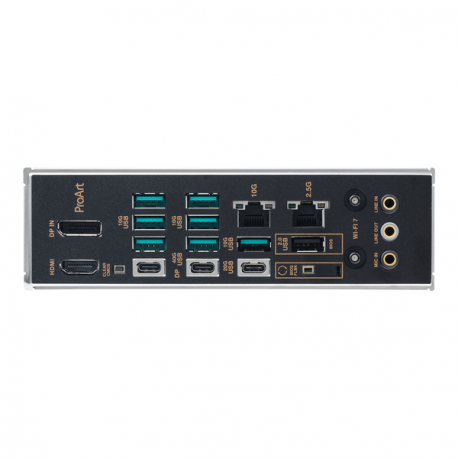

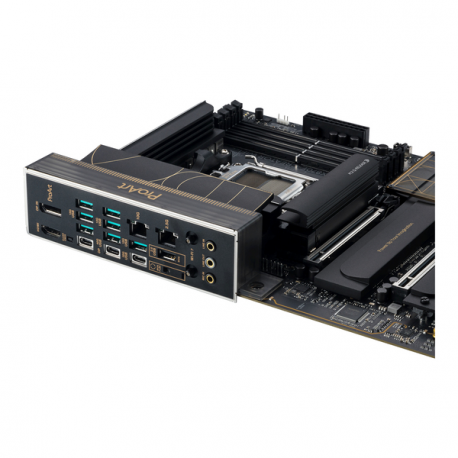

Interfaces
1 x LAN (2.5Gigabit Ethernet)
1 x LAN (10Gigabit Ethernet)
1 x DisplayPort input
1 x HDMI
2 x aerial
2 x Thunderbolt 4/DisplayPort/USB4
1 x USB-C 3.2 Gen2x2
7 x USB 3.2 Gen 2
1 x microphone - mini-jack
1 x audio line-out - mini-jack
1 x audio line-in - mini-jack
Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header
2 x USB 3.2 Gen 1 - header
6 x USB 2.0 - header
1 x audio - header
1 x serial - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
ASUS Enhanced Memory Profile (AEMP), CrashFree BIOS 3, Preboot eXecution Environment (PXE), LANGuard, BIOS FlashBack button, Clear CMOS Button, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, ASUS Overvoltage Protection, ASUS Q-Design, ASUS SafeSlot, ASUS Stainless Steel Back I/O, ESD Guards, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, PCIe Slot Q-Release, ASUS Aura Sync, ASUS EZ DIY, ASUS ProCool, ASUS Q-Connector, ASUS SafeDIMM, M.2 heatsink, M.2 heatsink backplate, pre-mounted I/O shield, Q-Antenna, Q-DIMM, Q-LED, Q-Release Slim, Q-Slot, Quick Charge 4+, VRM heatsink design, 16+2+2 Phase Power Design, Core Flex technology, 8 Layer PCB, AI Cooling II, AI Networking II, AI Overclocking
Included Accessories
ASUS Wi-Fi Q-antenna, M.2 Q-Latch, M.2 Q-Slide, Q-Connector, thermal pad for M.2 SSD, 2 x M.2 rubber package, ASUS ProArt ruler, ACC Express Activation Key Card
Cables Included
4 x Serial ATA cable
Software Included
ASUS Control Center Express, Adobe Creative Cloud (free trial), Armoury Crate, ASUS AURA Creator, ASUS CPU-Z, ASUS DriverHub, ASUS Fan Xpert 4, ASUS GlideX, ASUS ProArt Creator Hub, CreationFirst, Norton 360 Deluxe (60 days trial), TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)
Compliant Standards
DisplayPort 1.4
Width
30.5 cm
Depth
24.4 cm
