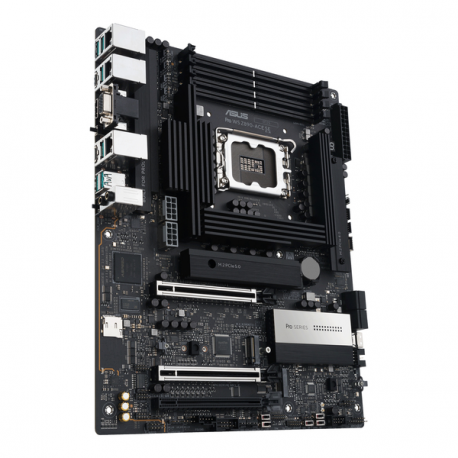

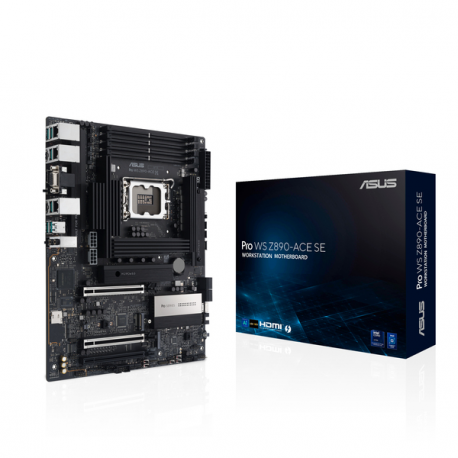

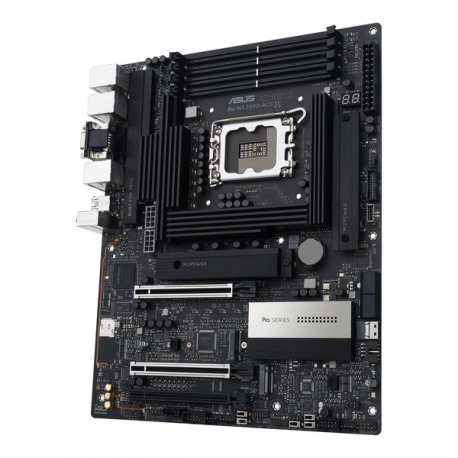

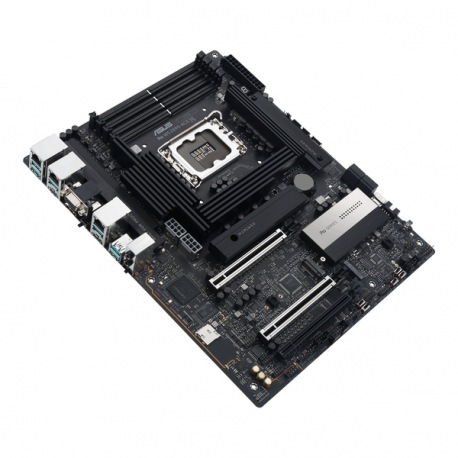

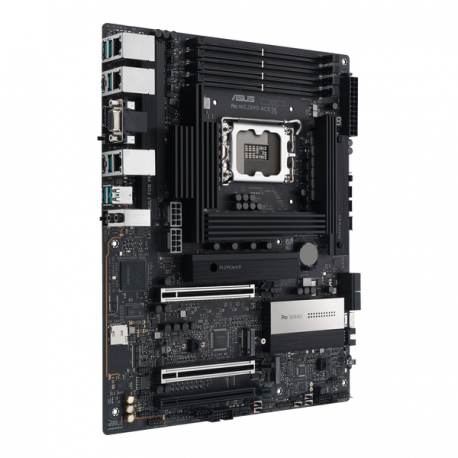

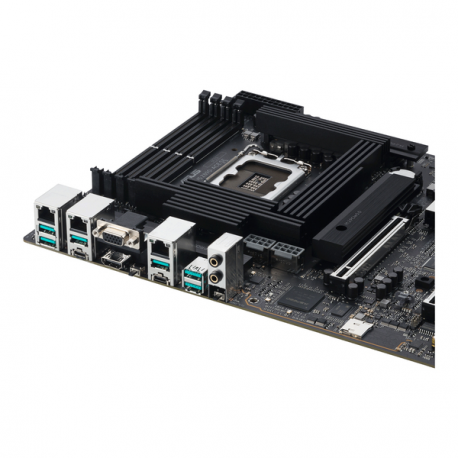

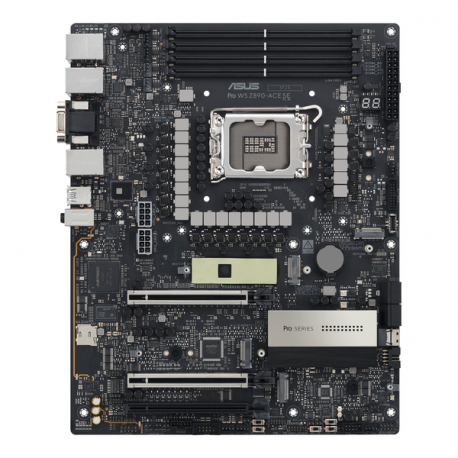

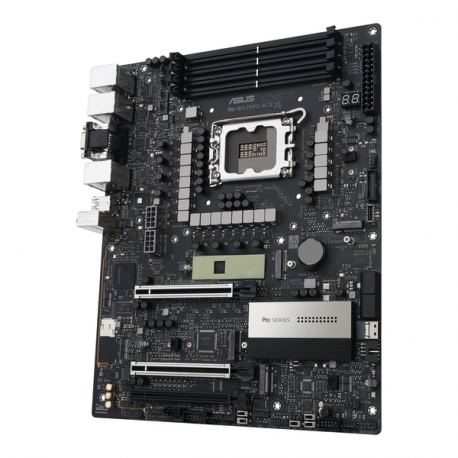

ASUS PRO WS Z890-ACE SE - Motherboard - ATX - LGA1851 Socket - Z890 Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB4, USB 3.2 Gen 1 - 10 Gigabit LAN, 2.5 Gigabit LAN, Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS PRO WS Z890-ACE SE - Motherboard - ATX - LGA1851 Socket - Z890 Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 2, USB4, USB 3.2 Gen 1 - 10 Gigabit LAN, 2.5 Gigabit LAN, Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASUS
Reference
•90MB1JC0-M0EAY0
Article
•4183619
Intrastat
•84717020
Total quantity in stocks
•5
Nearest delivery
•30.03.2026
Product Type
Motherboard - ATX
Chipset Type
Intel Z890
Processor Socket
LGA1851 Socket
Max Processors Qty
1
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Max Size
256 GB
Technology
DDR5
Bus Clock
4533 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered, clocked unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Graphics Controller
ASPEED AST2600
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1220P
Compliant Standards
High Definition Audio
Network Interfaces
10 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x SlimSAS
RAID Features
Intel Rapid Storage Technology
Interfaces

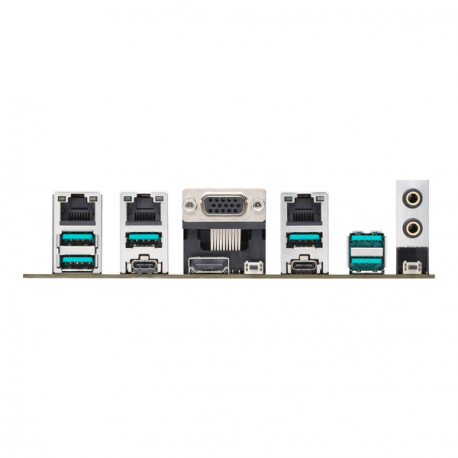

1 x LAN (Gigabit Ethernet)/management ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x USB-C 3.2 Gen2x2 ¦ 6 x USB 3.2 Gen 2 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x Thunderbolt 4
Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x Thunderbolt 4 - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS Enhanced Memory Profile (AEMP) III, CUDIMM support, CrashFree BIOS 3, Preboot eXecution Environment (PXE), BIOS FlashBack button, Clear CMOS Button, NPU Boost, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS EZ DIY, ASUS Overvoltage Protection, ASUS ProCool II, ASUS Q-Design, ASUS SafeDIMM, ASUS SafeSlot, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, BIOS FlashBack LED, CPU Socket lever protector, ESD Guards, LANGuard, M.2 heatsink, M.2 Q-Latch, overcurrent protection, Q-Code, Q-Connector, Q-DIMM, Q-LED, Q-Release Slim, Q-Slot, VRM heatsink design, DIY Friendly Design, 16+1+2+2 Phase Power Design, BMC remote management, 8 Layer PCB, AI Overclocking, AI Cooling II

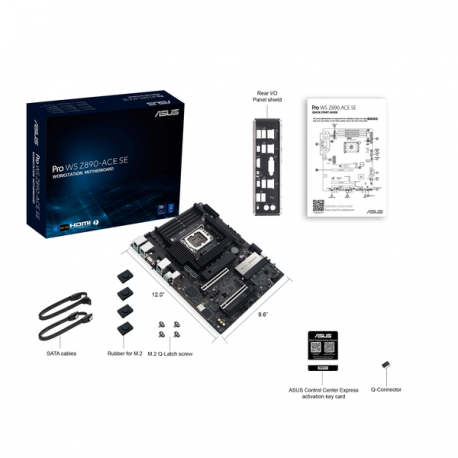

Included Accessories

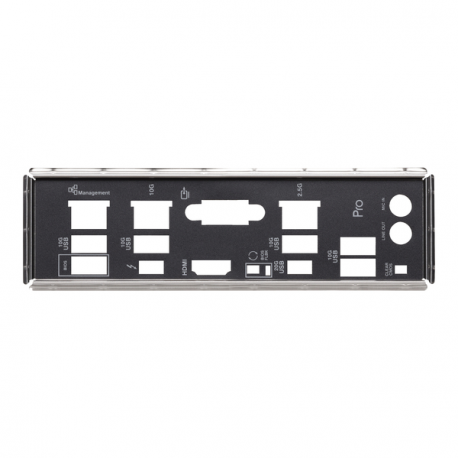

2 x M.2 Q-Latch, IO shield, AMI licence sticker, 2 x M.2 rubber package, Q-Connector, ACC Express Activation Key Card
Cables Included
2 x SATA Express cable
Software Included
Armoury Crate, ASUS Fan Xpert 4, ASUS DriverHub, TurboV Core, Adobe Creative Cloud (free trial), Norton 360 for Gamers (60 days trial), WinRAR (40 days trial), ASUS Control Center Express
Width
30.5 cm
Depth
24.4 cm
