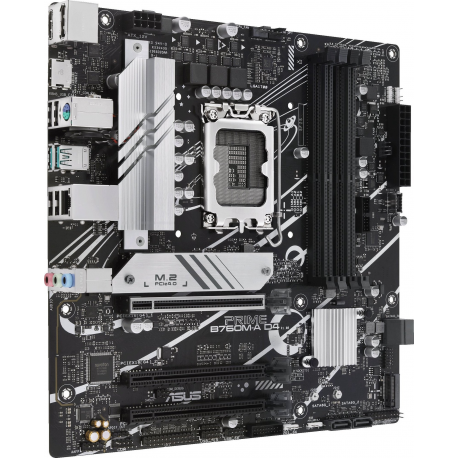

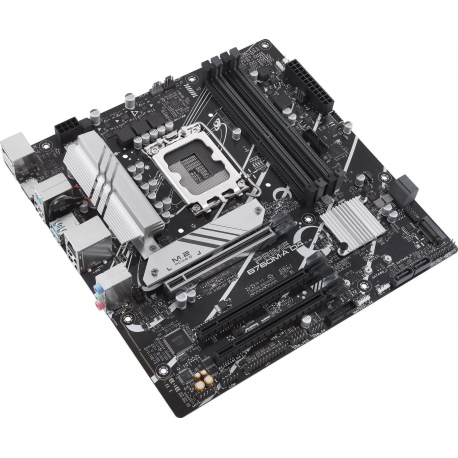

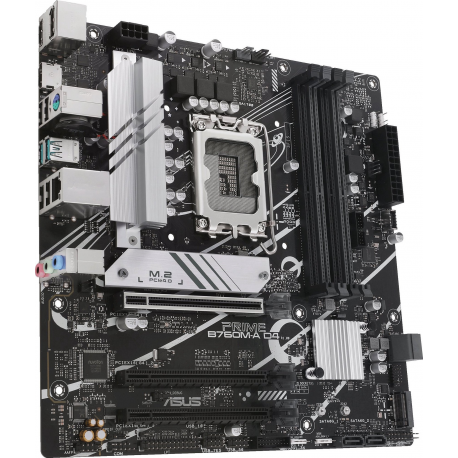

ASUS PRIME B760M-A D4-CSM - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASUS PRIME B760M-A D4-CSM - Motherboard - micro ATX - LGA1700 Socket - B760 Chipset - USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASUS
Reference
•90MB1D00-M1EAYC
Article
•3368881
Intrastat
•84717020
Total quantity in stocks
•54
Nearest delivery
•30.03.2026
Product Type
Motherboard - micro ATX
Chipset Type
Intel B760
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max Size
128 GB
Technology
DDR4
Bus Clock
2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 4000 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 5000 MHz (O.C.), 5066 MHz (O.C.), 5333 MHz (O.C.)
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Type
HD Audio (8-channel)
Compliant Standards
High Definition Audio
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 4.0 x16
1 x PCIe 4.0 x16 (x4 mode)
1 x PCIe 4.0 x16 (x1 mode)
2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 2 x M.2

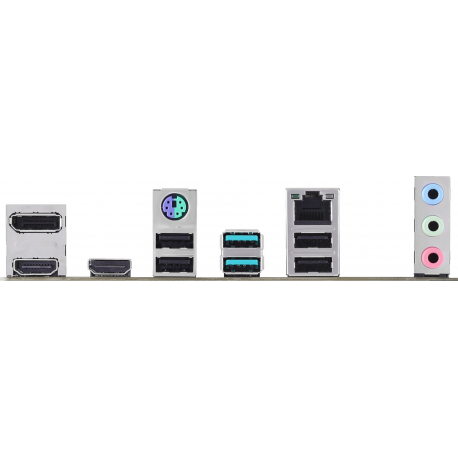

Interfaces
2 x HDMI
1 x DisplayPort
2 x USB 3.2 Gen 2
4 x USB 2.0
1 x LAN (2.5Gigabit Ethernet)
1 x PS/2 keyboard / mouse
1 x microphone - mini-jack
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
Internal Interfaces
5 x USB 2.0 - header
1 x USB-C 3.2 Gen 1 - header
4 x USB 3.2 Gen 1 - header
1 x serial - header
1 x SPI - header
1 x SPDIF out - header
1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, ASUS EZ DIY, CrashFree BIOS 3, Preboot eXecution Environment (PXE), ASUS OptiMem II, ASUS Fan Xpert 2+, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS SafeSlot Core+, ASUS Overvoltage Protection, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, ASUS Stainless Steel Back I/O, ASUS 5X Protection III, ASUS ProCool, VRM heatsink design, LANGuard

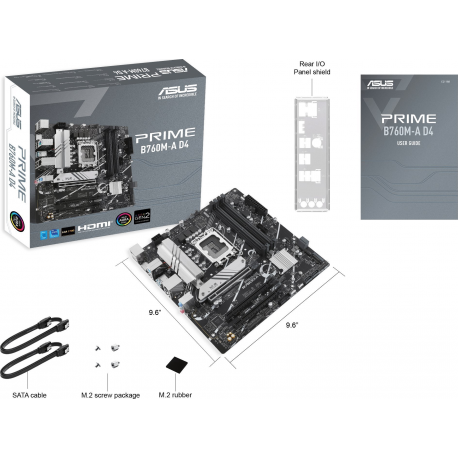

Included Accessories
IO shield, 1 x M.2 rubber package, M.2 SSD screw package, ACC Express Activation Key Card
Cables Included
2 x Serial ATA cable
Software Included
Norton 360 Deluxe (60 days trial), WinRAR, PC Cleaner, ASUS AI Suite III, Armoury Crate, ASUS AURA Creator, ASUS CPU-Z
Width
24.4 cm
Depth
24.4 cm
