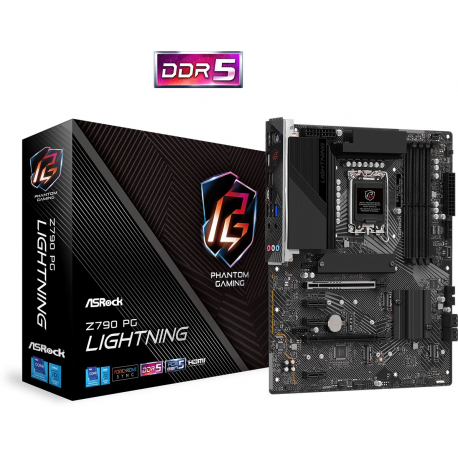

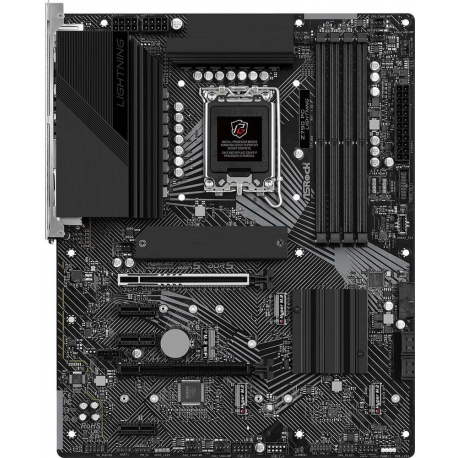

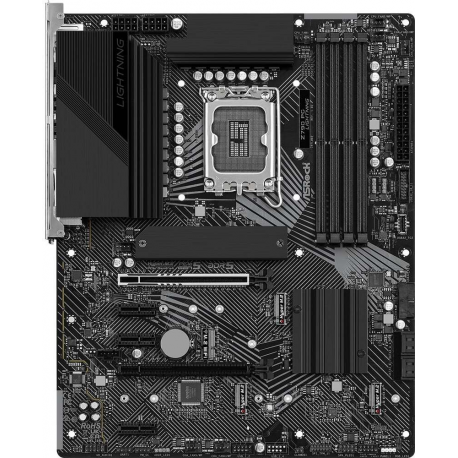

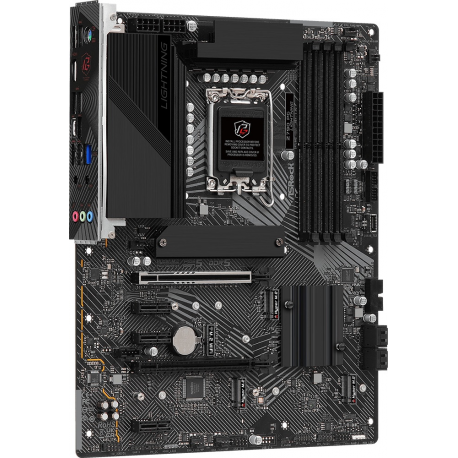

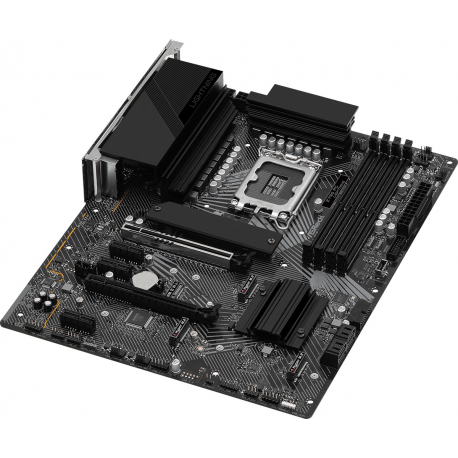

ASRock Z790 PG Lightning - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASRock Z790 PG Lightning - Motherboard - ATX - LGA1700 Socket - Z790 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASROCK
Reference
•90-MXBKA0-A0UAYZ
Article
•3124173
Intrastat
•84717020
Shipping weight
•1.47 kg
Product Type
Motherboard - ATX
Chipset Type
Intel Z790
Processor Socket
LGA1700 Socket
Max Processors Qty
1
Compatible Processors
(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Max Size
128 GB
Technology
DDR5
Bus Clock
4800 MHz (O.C.), 5600 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6800 MHz (O.C.), 3600 MHz, 4400 MHz
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Dragon RTL8125BG
Network Interfaces
2.5 Gigabit Ethernet
Expansion Slots
1 x CPU
4 x DIMM 288-pin
1 x PCIe 5.0 x16
1 x PCIe 4.0 x16 (x4 mode)
3 x PCIe 3.0 x1
1 x M.2 socket (2230 M.2 Key E slot)
3 x M.2 socket (2260/2280 M.2 Key M slot)
1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 3 x M.2 - RAID 0 / RAID 1 / RAID 5
SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5

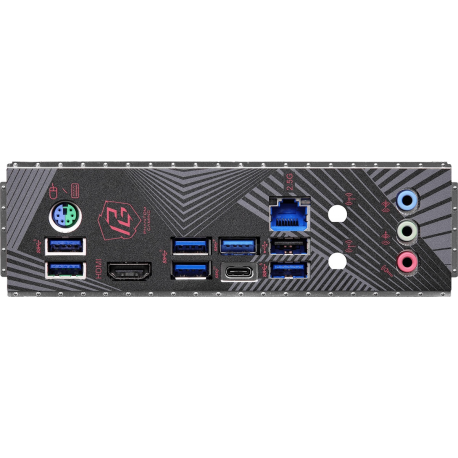

Interfaces
1 x HDMI
1 x USB 2.0
1 x USB-C 3.2 Gen2x2
1 x USB 3.2 Gen 2
5 x USB 3.2 Gen 1
1 x LAN (2.5Gigabit Ethernet)
1 x PS/2 keyboard / mouse
1 x microphone - mini-jack
1 x audio line-in - mini-jack
1 x audio line-out - mini-jack
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header
4 x USB 3.2 Gen 1 - header
2 x USB 2.0 - header
1 x audio - header
1 x Thunderbolt - header
1 x SPI - header
1 x Embedded DisplayPort (eDP) - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
UEFI BIOS
Hardware Features
ATI CrossFire technology support, ASRock Instant Flash, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, 6 Layer PCB, Dr.MOS MOSFET, ASRock EZ Mode, Hi-Density Power Connectors, Water Pump Header, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASRock POST Status Checker (PSC), reinforced PCIe slots, 14+1+1 Phase Power Design, Surface Mount Technology (SMT), Intel Hybrid Technology, ASRock Auto Driver Installer, Intel Adaptive Boost Technology (ABT), Intel Thermal Velocity Boost (TVB)
Included Accessories
Standoff for M.2 socket, 5 x M.2 screws
Cables Included
2 x Serial ATA cable
Software Included
ASRock Phantom Gaming Tuning, ASRock Phantom Gaming LAN Software
Compliant Standards
EuP Ready, ErP Ready, HDCP 2.3
Width
30.5 cm
Depth
24.4 cm
