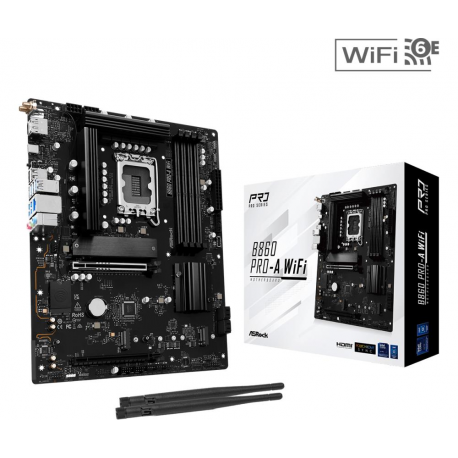

ASRock B860 Pro-A WiFi - Motherboard - micro ATX - LGA1851 Socket - B860 Chipset - USB-C Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 1 - Wi-Fi 6E, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
ASRock B860 Pro-A WiFi - Motherboard - micro ATX - LGA1851 Socket - B860 Chipset - USB-C Gen 2x2, USB-C 3.2 Gen 1, USB 3.2 Gen 1 - Wi-Fi 6E, 2.5 Gigabit LAN, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASROCK
Reference
•B860 PRO-A WIFI
Article
•4200660
Intrastat
•84717020
Product Type
Motherboard - micro ATX
Chipset Type
Intel B860
Processor Socket
LGA1851 Socket
Max Processors Qty
1
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Max Size
256 GB
Technology
DDR5
Bus Clock
8666 MHz (O.C.), 5600 MHz, 6800 MHz (O.C.), 6533 MHz (O.C.), 4800 MHz, 5600 MHz (O.C.), 4400 MHz
Supported RAM Integrity Check
Non-ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 3.0
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC897
Compliant Standards
High Definition Audio
Network Controller
Dragon RTL8125BG
Network Interfaces
802.11a/b/g/n/ac/ax (Wi-Fi 6E), 2.5 Gigabit Ethernet, Bluetooth 5.3
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x4 ¦ 1 x M.2 socket (Key E, for wireless module) ¦ 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot) ¦ 2 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
2 x aerial ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 6 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x speaker - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS
Hardware Features
10+1+1+1+1 Power Phase Design, ASRock EZ Mode, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, Intel Hybrid Technology, Intel Turbo Boost Max Technology 3.0, Intel Thermal Velocity Boost (TVB), Intel Adaptive Boost Technology (ABT), Dr.MOS MOSFET, VRM heatsink design, DIY Friendly Design, aluminium heatsink design, ASRock FAN-Tastic Tuning, Nahimic Audio Enhacer, ASRock Polychrome RGB, pre-mounted I/O shield
Software Included
ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning, Drivers & Utilities
Compliant Standards
FCC, EuP Ready, ErP Ready
Width
30.5 cm
Depth
24.4 cm
