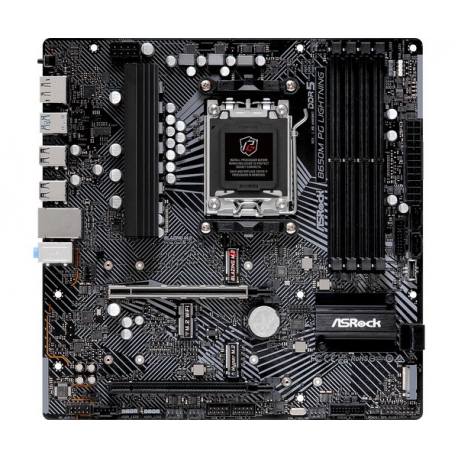

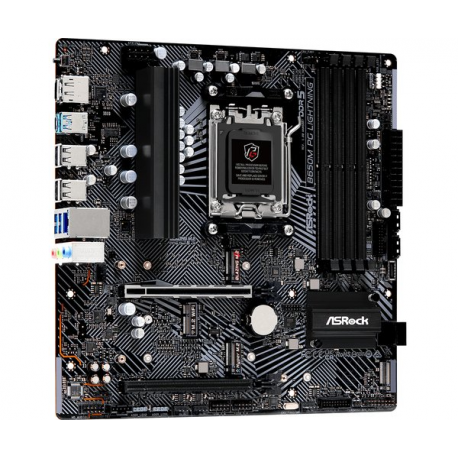

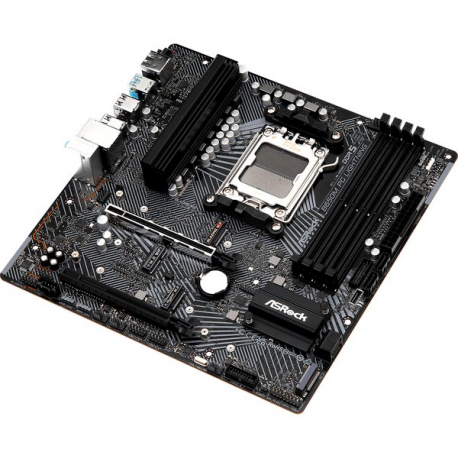

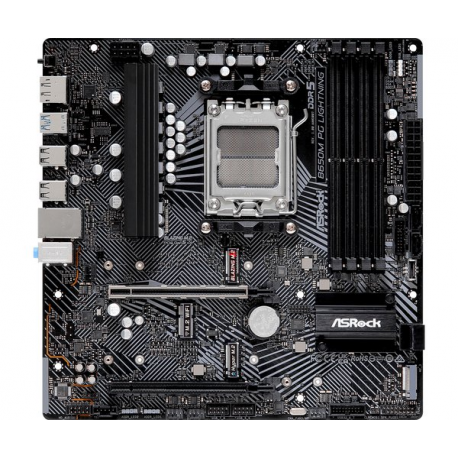

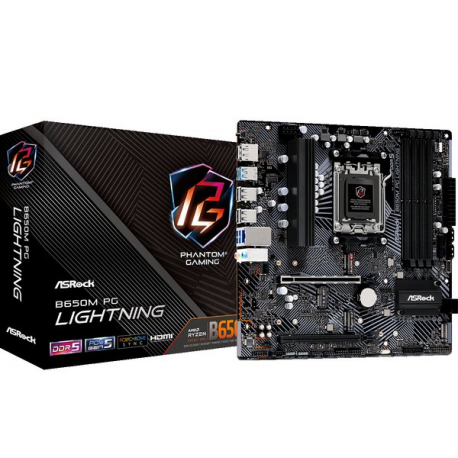

ASRock B650M PG Lightning - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
ASRock B650M PG Lightning - Motherboard - micro ATX - Socket AM5 - AMD B650 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 1 - 2.5 Gigabit LAN - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•ASROCK
Reference
•90-MXBMV0-A0UAYZ
Article
•3369882
Intrastat
•84717020
Total quantity in stocks
•100
Nearest delivery
•30.03.2026
Processor manufacturer
AMD
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 5 7th gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
Supported processor sockets
Socket AM5
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Maximum internal memory
192 GB
Memory slots type
DIMM
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
4400,4800,5200,5600,6000,6200,6400,6600,6800,7000,7200 MHz
Supported memory clock speed (max)
7200 MHz
Unbuffered memory
Yes
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Supported storage drive types
HDD & SSD
Number of storage drives supported
7
RAID support
Yes
RAID levels
0, 1, 10
Parallel processing technology support
CrossFire
Maximum resolution
3840 x 2160 pixels
HDCP
Yes
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of chassis fan connectors
3
Chassis intrusion connector
Yes
EPS power connector (8-pin)
Yes
TPM connector
Yes
Thunderbolt headers
1
12V power connector
Yes
RGB LED pin header
Yes
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Headphone outputs
3
Microphone in
Yes
USB connector type
USB Type-A, USB Type-C
Wi-Fi
No
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Dragon RTL8125BG
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Audio output channels
7.1 channels
Audio chip
Realtek ALC897
Product colour
Black
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Certification
FCC, CE, ErP/EuP
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
3
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Width
244 mm
Depth
244 mm
Cables included
SATA
Screws included
Yes
