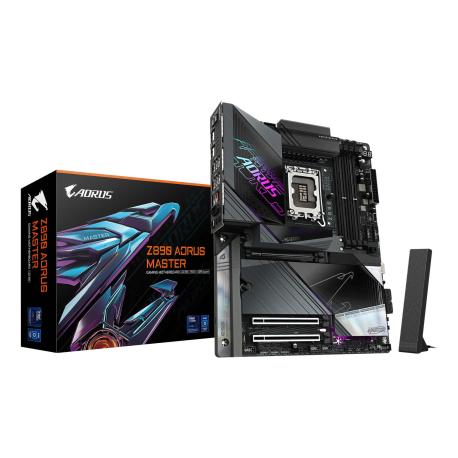

AORUS Z890 MASTER - Motherboard - ATX - LGA1851 Socket - Z890 Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB4 - 10 Gigabit LAN, Bluetooth, Wi-Fi 7 - onboard graphics (CPU required) - HD Audio (8-channel)
AORUS Z890 MASTER - Motherboard - ATX - LGA1851 Socket - Z890 Chipset - USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB4 - 10 Gigabit LAN, Bluetooth, Wi-Fi 7 - onboard graphics (CPU required) - HD Audio (8-channel)
Manufacturer
•GIGABYTE
Reference
•Z890 AORUS MASTER
Article
•4169962
Intrastat
•84717020
Shipping weight
•2.51 kg
Total quantity in stocks
•21
Nearest delivery
•18.03.2026
Product Type
Motherboard - ATX
Chipset Type
Intel Z890
Processor Socket
LGA1851 Socket
Max Processors Qty
1
Compatible Processors
(supports Intel Core Ultra processors (Series 2))
Max Size
256 GB
Technology
DDR5
Bus Clock
4750 MHz (O.C.), 4733 MHz (O.C.), 4667 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 4467 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 4133 MHz (O.C.), 4100 Mhz (O.C), 4000 MHz (O.C.), 3975 MHz (O.C.), 3950 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3700 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz, 3100 MHz, 3000 MHz, 2900 MHz, 2800 MHz
Supported RAM Integrity Check
Non-ECC, ECC
Registered or Buffered
Unbuffered
Features
Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Type
HD Audio (8-channel)
Audio Codec
Realtek ALC1220 / ES9118
Compliant Standards
High Definition Audio, DTS:X Ultra
Network Controller
Intel Wi-Fi 7 BE200NGW / Marvell AQtion AQC113C
Network Interfaces
10 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7)
Expansion Slots
1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x16 (x1 mode) ¦ 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) ¦ 2 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2280 M.2 Key M slot)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
Interfaces
2 x USB 2.0 ¦ 2 x aerial ¦ 4 x USB 3.2 Gen 1 ¦ 2 x Thunderbolt 4/DisplayPort/USB4 ¦ 6 x USB 3.2 Gen 2 ¦ 1 x LAN (10Gigabit Ethernet) ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x SPI - header
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
BIOS Type
AMI
BIOS Features
UEFI BIOS, PnP 1.0a support, DMI 2.7 support, WfM 2.0 support, SMBIOS 2.7 support, ACPI 5.0 support
Hardware Monitoring
Fan control, fan fail warning, fan speed detection, system voltage, temperature detection
Hardware Features
18+1+2 Phase Power Design, CUDIMM support, AI Perfdrive, WIFI EZ-Plug, AI SNATCH Engine, power button, reset button, Q-Flash Plus button, Clear CMOS Button, Q-Flash Plus, Q-Flash, M.2 EZ Latch click, M.2 EZ Latch plus, M.2 Thermal Guard XL, PCIe EZ Latch Plus, VRM Thermal Armor Advanced, 2x Copper PCB, 8 Layer PCB, EZ Debug LED, M.2 Thermal Guard Ext., Ultra Durable PCIe Armor, AI Overclocking, DIY Friendly Design, VRM heatsink design, GIGABYTE Smart Fan 6, RGB FUSION
Included Accessories
Wi-Fi aerial, DDR Wind Blade, noise detection cable, G-Connector, 2 x thermal pads for M.2 SSD, 3 x thermal pads for M.2 SSD thick/thin
Cables Included
2 x SATA Express cable
Software Included
GIGABYTE Control Center, Norton Internet Security (OEM Version), HWiNFO
Compliant Standards
HDCP 2.3, DisplayPort 2.1
Width
30.5 cm
Depth
24.4 cm
