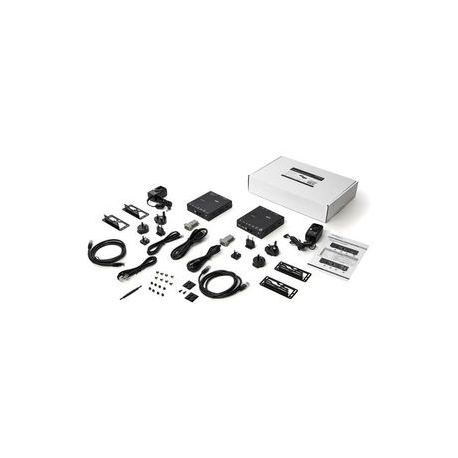

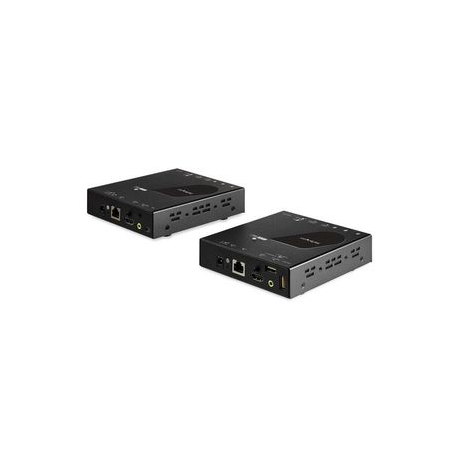

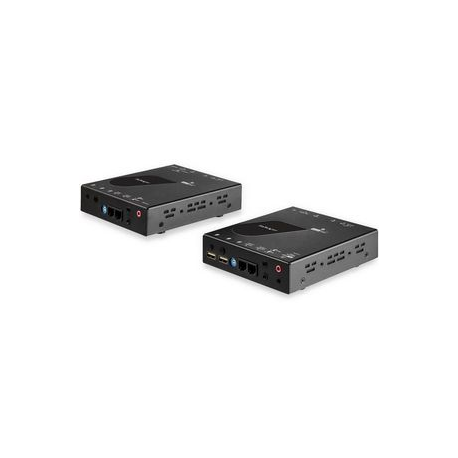

StarTech.com HDMI KVM Extender over IP - 4K 30Hz HDMI 2.0 & USB over IP LAN or CAT5e/CAT6 Ethernet (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit (SV565HDIP) - Video/audio extender - HDMI - up to 100 km - TAA Compliant
StarTech.com HDMI KVM Extender over IP - 4K 30Hz HDMI 2.0 & USB over IP LAN or CAT5e/CAT6 Ethernet (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit (SV565HDIP) - Video/audio extender - HDMI - up to 100 km - TAA Compliant
Manufacturer
•STARTECH
Reference
•SV565HDIP
Article
•1691913
Intrastat
•85441190
Shipping weight
•0.61 kg
Device Type
Video/audio extender
Form Factor
External
Colour
Black
Connectivity Technology
Wired
Data Link Protocol
HDMI
Data Transfer Rate
12 Mbps
Max Resolution
3840 x 2160 @ 30 Hz
Max Transfer Distance
100 km
Status Indicators
Video, connection status
Features
7.1 channel audio support, EDID Pass-Through

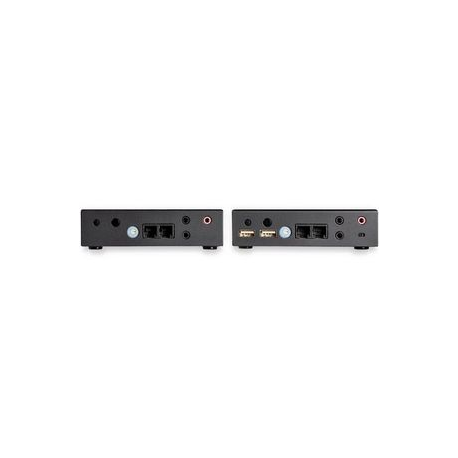

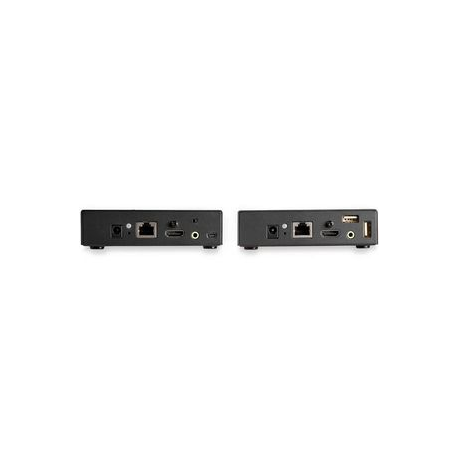

Interfaces
1 x HDMI (input) - 19 pin HDMI Type A female
1 x network (input) - RJ-45
2 x network (input) - RJ-11
1 x USB (input) - mini-USB Type B
2 x audio (input) female
2 x (input) - mini jack female
1 x HDMI (output) - 19 pin HDMI Type A female
1 x network (output) - RJ-45
2 x network (output) - RJ-11 female
2 x USB 2.0 (output) - Type A female
2 x USB (output) - Type A
2 x audio (output) female
2 x (output) - mini jack female
Included Accessories
8 rubber feet, screwdriver, 2 x DB9 serial adapters
Cables Included
2 x network cable
2 x serial cable
1 x HDMI cable - 1.2 m
1 x USB cable - 1.5 m
Mounting Kit
Included
MTBF
60,000 hour(s)
Compliant Standards
FCC, RoHS, WEEE, REACH
TAA Compliant
Yes
Power Device
External power adapter
Installed Qty
2
Voltage Required
AC 100 - 240 V
Power Consumption Operational
18 Watt
Width
11.7 cm
Depth
13 cm
Height
2.8 cm
Weight
610 g
Shipping Width
36.5 cm
Shipping Depth
19.5 cm
Shipping Height
32.5 cm
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 80%
