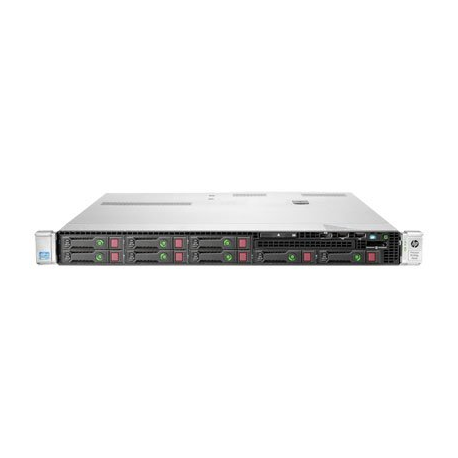

HPE ProLiant DL360p Gen8 - Server - rack-mountable - 1U - 2-way - 1 x Xeon E5-2620 / 2 GHz - RAM 8 GB - SAS - hot-swap 2.5" bay(s) - no HDD - DVD-Writer - Matrox G200 - GigE - monitor: none
HPE ProLiant DL360p Gen8 - Server - rack-mountable - 1U - 2-way - 1 x Xeon E5-2620 / 2 GHz - RAM 8 GB - SAS - hot-swap 2.5" bay(s) - no HDD - DVD-Writer - Matrox G200 - GigE - monitor: none
Manufacturer
•HPE
Reference
•470065-654
Article
•2825474
Shipping weight
•14.5 kg
Type
Server
Recommended Use
Small business, corporate business
Product Form Factor
Rack-mountable - 1U
Server Scalability
2-way
Front Accessible Bays Qty
1
Hot-Swap Bays Qty
8
CPU
Intel Xeon E5-2620
Clock Speed
2 GHz
Max Turbo Speed
2.5 GHz
Number of Cores
6-core
64-bit Computing
Yes
CPU Qty
1
Max CPU Qty
2
CPU Upgradability
Upgradable
Processor Main Features
Hyper-Threading Technology, Intel Turbo Boost Technology
Chipset Type
Intel C600
Installed Size
L3 Cache - 15 MB
Cache Per Processor
15 MB
Installed Size
8 GB / 192 GB (max)
Technology
DDR3 SDRAM - ECC
Effective Memory Speed
1333 MHz
Rated Memory Speed
1333 MHz
Memory Specification Compliance
PC3L-10600
Form Factor
DIMM 240-pin
Slots
24 (Total) / 22 (empty)
Features
Registered, single rank, quad channel memory architecture, HP SmartMemory
Configuration Features
2 x 4 GB
RAM Supported
96 GB unbuffered - ECC ¦ 192 GB registered - ECC ¦ 384 GB Load-Reduced - ECC
Type
No HDD
Type
1 x RAID - plug-in card - PCIe 3.0 x8
Controller Interface Type
SATA 6Gb/s / SAS 6Gb/s
Storage Controller Name
Smart Array P420i with 1GB FBWC
RAID Level
RAID 0, RAID 1, RAID 5, RAID 10, RAID 50
Buffer Size
1 GB
Type
DVD-RW DVD-Writer - SATA
Monitor Type
None.
Type
Integrated
Graphics Processor
Matrox G200
Video Interfaces
VGA
Type
Mouse, keyboard
Type
Integrated
Ethernet Ports
4 x Gigabit Ethernet
Ethernet Controller
HP 331FLR
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol
IPMI 2.0, SMASH CLP
Remote Management Controller
Integrated Lights-Out 4
Features
Wake on LAN (WoL), PXE support
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP)
Bays
1 (total) / 0 (free) x external 5.25" x 1/2H ¦ 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots
24 (total) / 22 (free) x DIMM 240-pin ¦ 2 (total) / 1 (free) x CPU ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile ¦ 1 (total) / 1 (free) x SD card (internal)
Interfaces
1 x serial ¦ 1 x VGA ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x HPE iLO ¦ 6 x USB 2.0 (2 front, 4 rear)
Features
Administrator password, power-on password, keyboard password, serial port I/O control, quick lock
Compliant Standards
ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, BSMI CNS 13438
Device Type
Power supply - hot-plug
Power Redundancy
Yes
Power Redundancy Scheme
1+1 (with optional power supply)
Installed Qty
2
Max Supported Qty
2
Voltage Required
AC 120/230 V (50/60 Hz)
Power Provided
460 Watt
80 PLUS Certification
80 PLUS Gold
OS Certified
SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris
Service & Support
Limited warranty - parts and labour - 3 years - on-site
Width
43.5 cm
Depth
69.9 cm
Height
4.3 cm
Weight
14.5 kg
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
10 - 90% (non-condensing)
