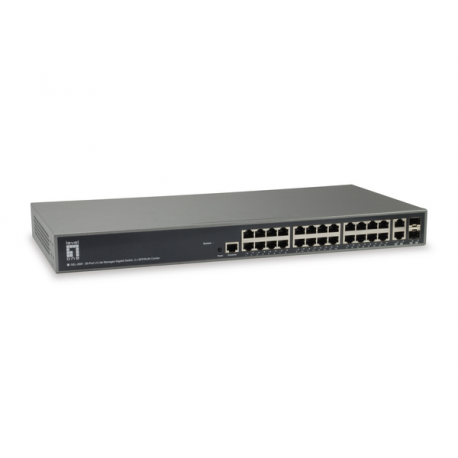

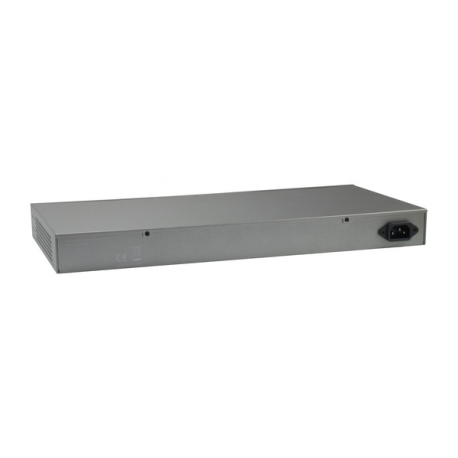

26-Port Lite Managed GB Switch
26-Port Lite Managed GB Switch
Manufacturer
•LEVELONE
Reference
•GEL-2681
Article
•2247892
Shipping weight
•3 kg
Total quantity in stocks
•4
Nearest delivery
•23.04.2026
Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes
Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
24
Combo SFP ports quantity
2
Console port
RJ-45
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring
Yes
Flow control support
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes
Cable length detection
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Voice VLAN, Tagged VLAN, Port-based VLAN
MAC address table
8000 entries
Switching capacity
52 Gbit/s
Forwarding rate
38.68 Mpps
Store-and-forward
Yes
Static route
Yes
Jumbo frames support
Yes
Jumbo frames
9600
DHCP features
DHCP server, DHCP snooping, DHCP relay, DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
IGMP proxy
Yes
Security algorithms
802.1x RADIUS
SSH/SSL support
Yes
Loop protection
Yes
BPDU filtering/protection
Yes
Supported network protocols
IPv4/IPv6
GARP VLAN Registration Protocol (GVRP)
Yes
Rack mounting
Yes
Product colour
Black
Reset button
Yes
LED indicators
Activity, Link, Speed
Country of origin
Taiwan
Safety
LVD
Certification
CE, FCC Part 15 Class A, VCCI, RoHS
Internal memory
128 MB
Flash memory
32 MB
Firmware upgradeable
Yes
Buffer size
512 KB
Telnet
Yes
sFlow
Yes
Mean time between failures (MTBF)
463931 h
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (typical)
16.79 W
Power over Ethernet (PoE)
No
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-20 - 75 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%
Heat dissipation
73.87 BTU/h
Width
442 mm
Depth
211 mm
Height
44 mm
Weight
2.6 kg
Cables included
AC, LAN (RJ-45)
Quick start guide
Yes
Package type
Box
Rack mount kit
Yes
Resource CD
Yes
Package width
300 mm
Package depth
520 mm
Package height
90 mm
Package weight
3 kg
Master (outer) case width
482 mm
Master (outer) case length
540 mm
Master (outer) case height
324 mm
Harmonized System (HS) code
85176990
Master (outer) case gross weight
16.2 kg
Products per master (outer) case
5 pc(s)
