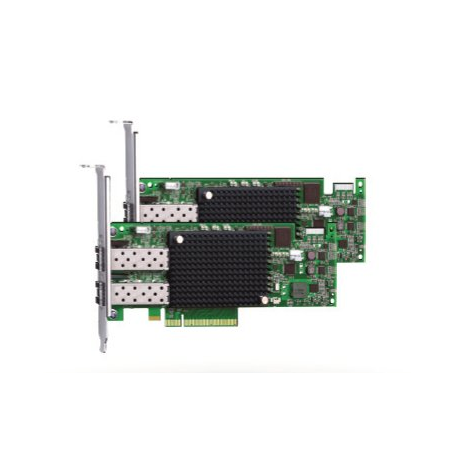

Emulex LPe16002B-M6 Gen 5 (16Gb), dual-port HBA - Host bus adapter - PCIe 3.0 x8 low profile - 16Gb Fibre Channel Gen 5 x 2
Emulex LPe16002B-M6 Gen 5 (16Gb), dual-port HBA - Host bus adapter - PCIe 3.0 x8 low profile - 16Gb Fibre Channel Gen 5 x 2
Manufacturer
•EMULEX
Reference
•LPE16002B-M6
Article
•2828398
Total quantity in stocks
•8
Nearest delivery
•30.03.2026
Device Type
Host bus adapter
Form Factor
Plug-in card - low profile
Interface (Bus) Type
PCI Express 3.0 x8
PCI Specification Revision
PCIe 2.0, PCIe 3.0
Ports
16Gb Fibre Channel Gen 5 x 2
Connectivity Technology
Wired
Data Link Protocol
16Gb Fibre Channel Gen 5 (Short Wave)
Fibre Channel
FC-AL, FC-AL-2, FC-DA, FC-FLA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-Tape, FC-SP, FCP-4, FCP, FCP-2, FC-PI-2, FC-FS-2, FC-GS-5, FC-PI-4, FC-GS-6, FC-HBA, FC-PI-5, FC-LS-2, FC-SP-2, FC-MJS, FC-SB-4
Data Transfer Rate
14.025 Gbps
Features
Auto-negotiation, LDAP support
Expansion Slots
2 (total) / 0 (free) x SFP+
Interfaces
2 x 16Gb Fibre Channel Gen 5 (Short Wave) - LC - x 2
Included Accessories
Full-height bracket
Compliant Standards
UL, TUV, C-Tick, EN55024, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, FCC Part 15 A, MIC Class A, BSMI Class A, KCC Class A, CAN/CSA C22.2 No. 60950-1-07, Directive 2004/108/EC, AS/NZS, Directive 2011/65/EU, VCCI Class A, MSIP Class A, China RoHS, CNS13438:2006, EN 55022 Class A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011
OS Required
Linux, Microsoft Windows Server, Oracle Solaris
Depth
16.764 cm
Height
6.891 cm
Service & Support
Limited warranty - 3 years
Min Operating Temperature
0 °C
Max Operating Temperature
55 °C
Humidity Range Operating
5 - 95% (non-condensing)
