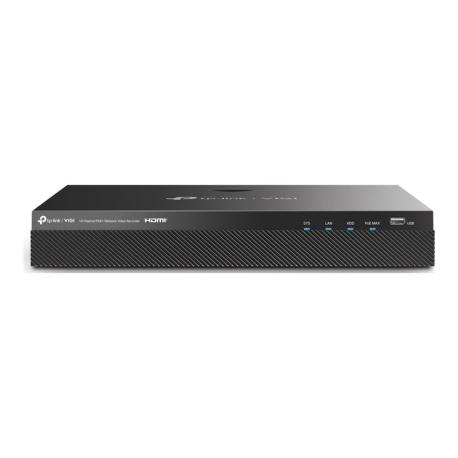

TP-Link VIGI NVR2016H-16MP V1 - NVR - 16 channels - networked
TP-Link VIGI NVR2016H-16MP V1 - NVR - 16 channels - networked
Manufacturer
•TP-LINK
Reference
•VIGI NVR2016H-16MP
Article
•3365426
Intrastat
•84716070
Shipping weight
•4.1 kg
Total quantity in stocks
•5
Nearest delivery
•30.03.2026
Device Type
NVR
Video Channels
16
Image Resolution
3840x2160, 1920x1080, 1680x1050, 1440x900, 1280x1024, 1280x720
Compression Format
H.265+, H.265, H.264+, H.264, G.711A, G.711u, G.726
Package Content
External power adapter, power cables, HDD power cables, HDD data cable, mounting accessories, mouse
Compliant Standards
Plug and Play, IEEE 802.3af, IEEE 802.3at, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
Frame Rate (Record)
30 fps
Video Recording Resolution
8 Megapixels, 5 Megapixels, 4 Megapixels, 3 Megapixels, 1920x1080, 1280x720
Display Modes
Full screen, 4 split screens, 6 split screens, 8 split screens, 9 split screens, 16 split screens
Playback Search
Instant, date / time, tag, event
Record Events
Scheduled, motion detection, manual, video loss, line crossing detection, intrusion detection, object removal detection
Networked
Yes
Features
Vehicle detection, human detection, 80Mbps Incoming Bandwidth, 60Mbps Outgoing Bandwidth, Power over Ethernet (PoE), Video Tampering Alerts, region entrance, region exiting, object left detection
Quantity Supported
2
Interface
Serial ATA
Supported Max Total Capacity
20 TB
Network Interfaces
Ethernet 10Base-T/100Base-TX/1000Base-T
Supported Protocols
NTP, UPnP, CGI
Features
140W PoE power budget, ONVIF support, two-way audio support, reset button, built-in buzzer, LED status indicators
Video Input Ports
RJ-45 x 16
Video Output Ports
HDMI x 1, VGA x 1
Audio Input Ports
RCA x 1
Audio Output Ports
RCA x 1
Network Port
10/100Base-TX x 16 (PoE+) / 1000Base-T x 1
Other Ports
USB 2.0 x 2, eSATA x 1
Voltage
53.5 V
Power Consumption
6.2 Watt
Power Consumption Details
Without HDD
Width
33 cm
Depth
28.5 cm
Height
4.5 cm
Weight
2.1 kg
Shipping Weight
4.1 kg
Min Operating Temperature
-10 °C
Max Operating Temperature
55 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
