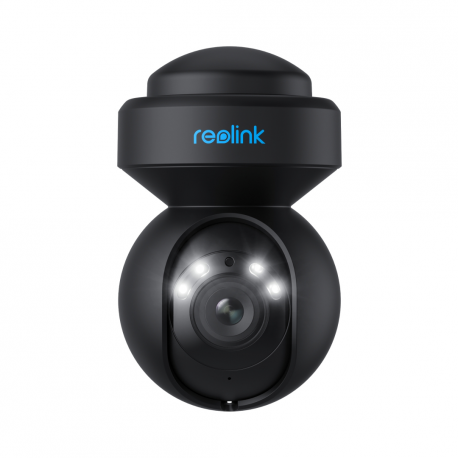

Reolink | Smart WiFi Camera with Motion Spotlights | E Series E540 | PTZ | 5 MP | 2.8-8/F1.6 | IP65 | H.264 | Micro SD, Max. 256
Reolink | Smart WiFi Camera with Motion Spotlights | E Series E540 | PTZ | 5 MP | 2.8-8/F1.6 | IP65 | H.264 | Micro SD, Max. 256
Manufacturer
•REOLINK
Reference
•WCEO5MP06PTAFB
Article
•4184794
Intrastat
•84716070
Shipping weight
•1.2 kg
Total quantity in stocks
•18
Nearest delivery
•16.03.2026
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired & Wireless
Virtual assistant
Google Assistant
Infrared (IR) cut-off filter
Yes
Mounting type
Ceiling
Product colour
Black
Form factor
Spherical
International Protection (IP) code
IP65
Lens viewing angle, horizontal
48 - 90°
Lens viewing angle, vertical
37 - 68°
Tilt angle range
0 - 50°
Pan range
0 - 355°
Sensor type
CMOS
Number of sensors
1
Optical sensor size
25.4 / 2.7 mm (1 / 2.7")
Number of lenses
1
Focal length range
2.8 - 8 mm
Maximum aperture number
1.6
Night vision
Yes
Night vision distance
12 m
LED type
IR/White
Number of illumination LEDs
12
Infra-red wavelength
850 nm
Maximum resolution
2560 x 1920 pixels
Total megapixels
5 MP
Video formats supported
H.264
Video compression formats
H.264
Supported graphics resolutions
2560 x 1920
Video recording
Yes
Frame rate
20 fps
Video streaming
Yes
Bit rate
64 Kbps - 5120 Kbps
Built-in speaker(s)
Yes
Audio system
2-way
Built-in microphone
Yes
Ethernet LAN
Yes
Wi-Fi
Yes
Bluetooth
No
Ethernet interface type
Fast Ethernet
Networking standards
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols
HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Number of users
20 user(s)
User access level
Administrator, User
Live view
Yes
Built-in HDD
No
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)
Maximum memory card size
256 GB
Ethernet LAN (RJ-45) ports
1
DC-in jack
Yes
Video motion detection
Yes
Security algorithms
WPA, WPA2
Human and vehicle targets classification
Yes
Reset button
Yes
Power source type
DC
Power consumption (max)
12 W
DC output voltage
12
DC output current
1 A
Operating temperature (T-T)
-10 - 50 °C
Operating relative humidity (H-H)
10 - 90%
Windows operating systems supported
Yes
Mac operating systems supported
Yes
Mobile operating systems supported
Android, iOS
Height
120 mm
Diameter
9 cm
Weight
415 g
Number of cameras
1
Mounting kit
Yes
Screws included
Yes
Manual
Yes
Packaging content
1* E Series E540-B
1* Security Bracket
1* Strap
1* Power Adapter
1* Reset Needle
1* Pack of Screws
1* 4.5m Power Extension Cable
1* 1m Network Cable
1* Mounting Template
1* Quick Start Guide
1* Surveillance Sticker
