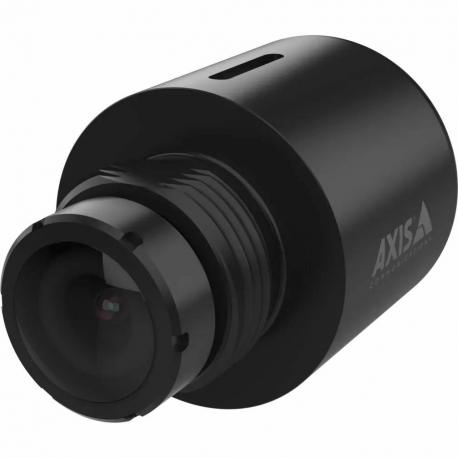

Camera sensor unit

Indoor, outdoor

Aluminium

2.98 cm

5.9 cm

2.98 cm

54 g

Black, NCS S 9000-N

5 megapixels, 110° horizontal viewing, rugged, SMA connector, IP66 protection, IP67 protection, forensic Wide Dynamic Range (WDR), lightfinder technology, CMOS sensor, 0.25 lux minimum illumination, maximum resolution: 2592 x 1944 at 50/60 fps, 2.8 mm focal length, 80° vertical viewing, M12 thread, fixed IR-cut filter, PVC free, BFR free, CFR free

IP6K9K, CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1, EN 61000-6-2, VCCI Class A, KS C 9835, KS C 9832 Class A, FCC Part 15 B Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, IEC/EN 62368-1 Third Edition, IEC/EN 60950-22, UN ECE R118, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-78, IEC TR 60721-4-5 Class 5M3, IEC/EN 60529, IEC/EN 61373 Category 1 Class B, ISO 21207 method B, ISO 20653, NEMA 250 Type 4X, ROHS Directive 2011/65/EU, ROHS Directive 2015/863/EU, EN/IEC 63000:2018, Directive 1907/2006/EC

Limited warranty - 5 years

-40 °C

60 °C
