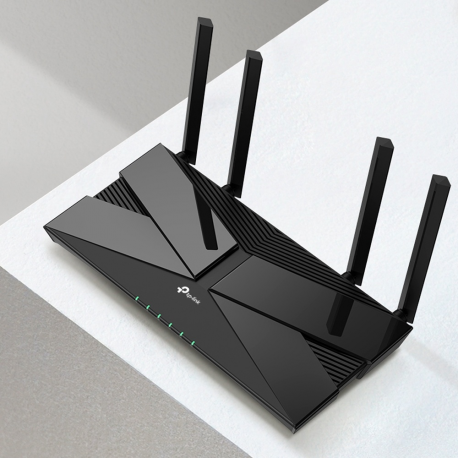

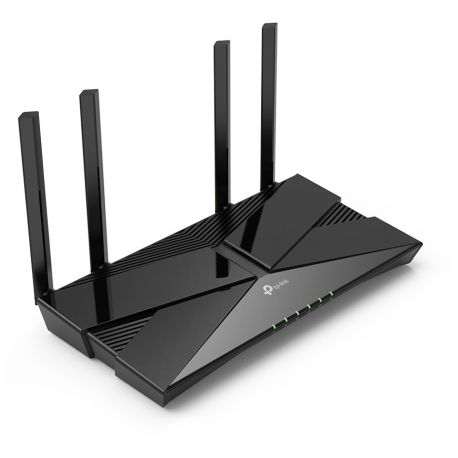

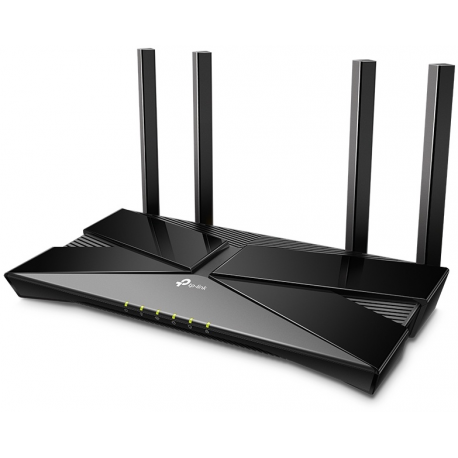

TP-Link Archer AX23 V1 - Wireless router - 4-port switch - GigE - 802.11a/b/g/n/ac/ax - Dual Band

  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
  • TP-Link Archer AX23 AX1800 Dual-Band Wi-Fi 6 Router, 574Mbps at 2.4 GHz + 1201 Mbps at 5 GHz, 802.3at POE and 12V DC, 4×Interna
images are for illustrative purposes only

New

Article: 1859186 Intrastat: 85176930 SKU: ARCHER AX23
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeWireless router - 4-port switch (integrated)
Enclosure TypeDesktop
Connectivity TechnologyWireless, wired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
Frequency Band2.4 GHz / 5 GHz
Data Transfer Rate1.8 Gbps
PerformanceMaximum data rate (2.4 GHz): 574 Mbps Maximum data rate (5 GHz): 1201 Mbps
CapacityStreams: 4
Network / Transport ProtocolPPTP, L2TP, PPPoE, DHCP, DDNS
Routing ProtocolStatic IP routing
Encryption AlgorithmWPA, WPA2, WPA-Enterprise, WPA2-Enterprise, WPA3
Wi-Fi RatingAX1800
FeaturesURL filtering, parental control, Quality of Service (QoS), Access Point+, Wi-Fi Protected Setup (WPS), reset button, port triggering, MU-MIMO technology, beamforming technology, dual band, Smart Connect, router mode, Airtime Fairness, DMZ support, OpenVPN server, IPTV support, WPS button, OneMesh support, auto firmware update, Guest Network
Compliant StandardsIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, UPnP, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6, FCC, RoHS
Line Coding FormatOFDMA

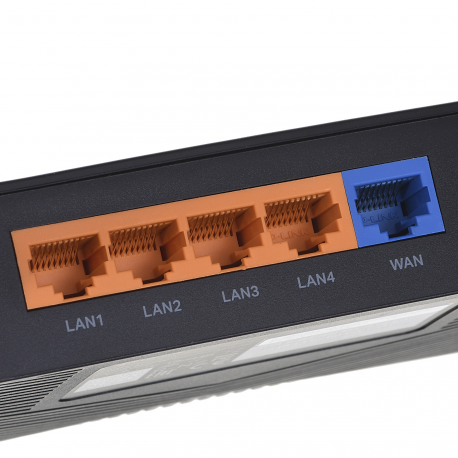

InterfacesLAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
AerialExternal
Antenna Qty4
Power DeviceExternal power adapter

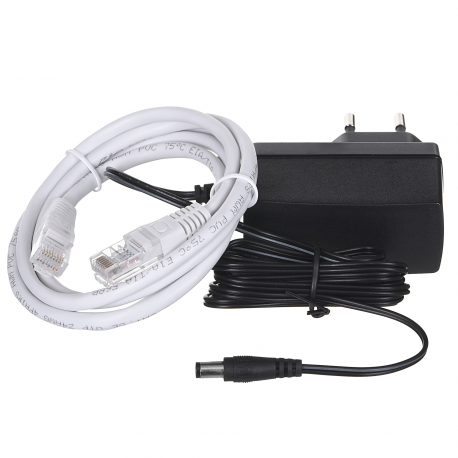

Cables Included1 x network cable
Width26.02 cm
Depth13.5 cm
Height4.16 cm
Min Operating Temperature0 °C
Max Operating Temperature40 °C
Humidity Range Operating10 - 90% (non-condensing)
