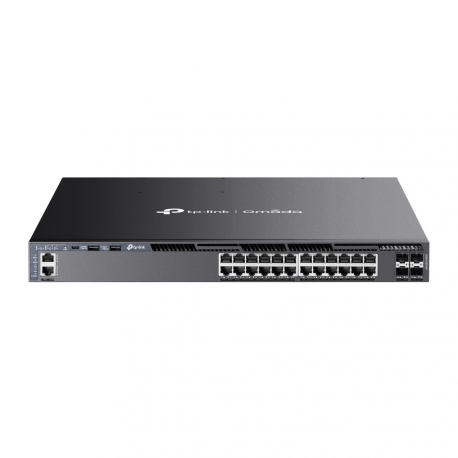

Switch - 24 ports - L3 - Managed - stackable

Front to back airflow rack-mountable

Gigabit Ethernet

24 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+

PoE+

720 W

Switching capacity: 128 Gbps ¦ Forwarding bandwidth: 64 Gbps ¦ Switching capacity with stacking: 512 Gbps ¦ Stacking bandwidth (full-duplex): 20 Gbps ¦ Packet forwarding rate: 95.2 Mpps ¦ Packet buffer size: 3 Mbit

Priority queues: 8 ¦ IPv6 interfaces: 256 ¦ IPv4 interfaces: 256 ¦ IPv4 routes (static): 1024 ¦ IPv6 routes (static): 512 ¦ Maximum host route table: 6100 ¦ RIP routes: 8190 ¦ OSPFv2 routes: 8190 ¦ OSPFv3 routes: 4097 ¦ VRRP groups: 64 ¦ ECMP entries: 256 ¦ ECMP next hops per route: 32 ¦ Static ARP entries: 512 ¦ Dynamic ARP: 7680 ¦ Dynamic IP pool: 8000 ¦ Binding entries: 1000 ¦ IGMP groups: 2048 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 200 ¦ VLAN VPN (QinQ) entries: 256 ¦ VLAN entries: 12 ¦ VLAN templates: 16 ¦ IP MAC port binding entries: 1024 ¦ IPv6 MAC port binding entries: 1024 ¦ Port security entries: 64

32K entries

9KB

4

Static IP routing, RIP, OSPF, ECMP, VRRP, PIM-DM, RIP-1, RIP-2, OSPFv2, OSPFv3, VRRPv2, VRRPv3, STP, IGMP, MLD, L2PT, PPPoE, RSTP, MSTP, IGMPv2, IGMPv3, MLDv2

HTTP, HTTPS, DHCP, CLI, SNMP, SNMP 1, SNMP 2c, SNMP 3, RMON, RMON 1, RMON 2, RMON 3, RMON 9, BOOTP, MIB, NTP, RSTP, IPv4, IPv6, TCP/IP, UDP, SSH, SSH-2, ICMP, TFTP, Telnet, RADIUS

SSL 3.0, TLS 1.2

RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2)

DHCP server, DHCP relay, ACL support, Port Security, DoS attack prevention, 802.1x authentication, ERPS, cloud managed, ARP inspection, MAB, ZTP, security lock slot (cable lock sold separately), 4 fans, QoS, port-based priority, DSCP support, scheduler, bandwidth control, rate limit, Storm Control, Voice VLAN, proxy ARP, ARP support, Link Aggregation, loopback detection, flow control, port mirroring, RSPAN, IGMP snooping, MLD snooping, fast leave, MVR, Multicast filtering function, device discovery, firmware upgradable, schedule reboot, DLDP support, DDM, sFlow, tagged VLAN, Multicast VLAN routing, VLAN management, GVRP, Private VLAN, port isolation, cpu defend policy, DAI, IP-MAC binding, IP source guard, DHCPv6 snooping, ND detection, ND snooping, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Unknown Storm Control, Guest VLAN, AAA, Cable Diagnostics Function, SNTP support, system log, EEE, LLDP-MED, store and forward, 6KV Surge protection, 15KV ESD Protector (air-gap discharge), 1

IEEE 802.3af, IEEE 802.3at, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ah, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.1s, IEEE 802.1w, IEEE 802.1x

X ARM: 1.5 GHz

4 GB DDR4 SDRAM

8 GB

Link/activity, power, system, fan, PoE max, management, stack

24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W ¦ 4 x 10GBase-X SFP ¦ 2 x USB 2.0 Type A ¦ 1 x USB-C console ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console RJ-45

Internal power supply - hot-plug

1

2

Yes

N+1

AC 100-240 V (50/60 Hz)

31.95 Watt

Rubber feet

1 x console cable

Included

753,531 h hours

FCC, RoHS

Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux

44 cm

42 cm

4.4 cm

0 °C

45 °C

10 - 90% RH (non-condensing)

-40 °C

70 °C

5 - 90% RH (non-condensing)
