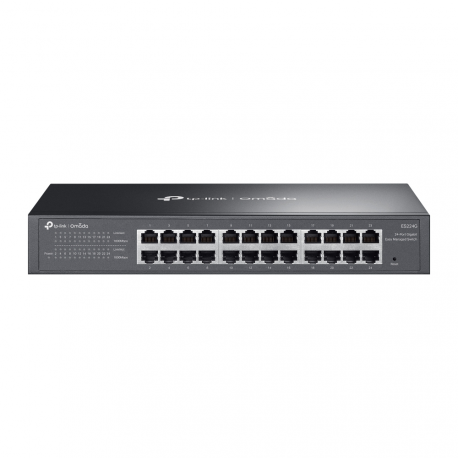

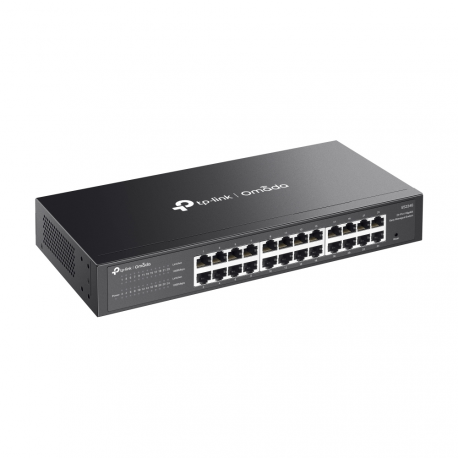

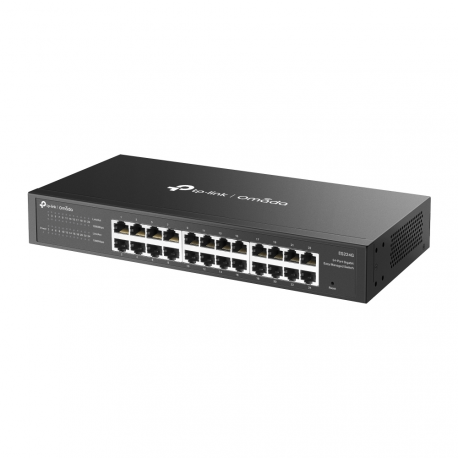

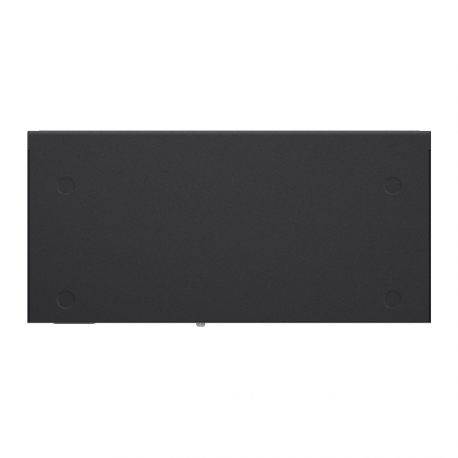

TP-Link Omada ES224G V1.6 - Switch - Managed - 24 x 10 / 100 / 1000Base-T - rack-mountable, desktop
TP-Link Omada ES224G V1.6 - Switch - Managed - 24 x 10 / 100 / 1000Base-T - rack-mountable, desktop
Manufacturer
•TP-LINK
Reference
•ES224G
Article
•4324454
Intrastat
•85176200
Total quantity in stocks
•11
Nearest delivery
•30.03.2026
Device Type
Switch - 24 ports - Managed
Enclosure Type
Rack-mountable, desktop
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000Base-T
Performance
Switching capacity: 48 Gbps ¦ Packet forwarding rate: 35.7 Mpps ¦ Packet buffer size: 4 Mbit
Capacity
Priority queues: 8 ¦ VLAN groups: 32 ¦ VLANs supported: 4000
MAC Address Table Size
8K entries
Jumbo Frame Support
15KB
Routing Protocol
IGMP, IGMPv2, IGMPv3
Remote Management Protocol
DHCP
Features
Reset button, cloud managed, VLAN support, port isolation, Cable Diagnostics Function, QoS, loop prevention, IGMP snooping, fanless, metal housing, traffic prioritisation, ZTP, security lock slot (cable lock sold separately), auto-negotiation, auto-uplink (auto MDI/MDI-X), 6KV Surge protection, DSCP based QoS, scheduler, WRR, bandwidth control, rate limit, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Static Link Aggregation, loopback detection, flow control, port mirroring, fast leave, VLAN Tagging, store and forward, DHCP client, automatic device discovery, firmware upgradable, 8KV ESD Protector (air-gap discharge), 4KV ESD Protector (contact discharge)
Compliant Standards
IEEE 802.1p, IEEE 802.3x, IEEE 802.1ab (LLDP), IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Flash Memory
64 MB
Status Indicators
Power, link/activity
Interfaces
24 x 10/100/1000 Base-T RJ-45
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Electric Current Required
0.6 A
Power Consumption Stand by
6 Watt
Included Accessories
4 rubber feet
Rack Mounting Kit
Included
MTBF
400,770 hours
Compliant Standards
Plug and Play, FCC, RoHS
Width
29.4 cm
Depth
14 cm
Height
4.4 cm
Min Operating Temperature
-5 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
