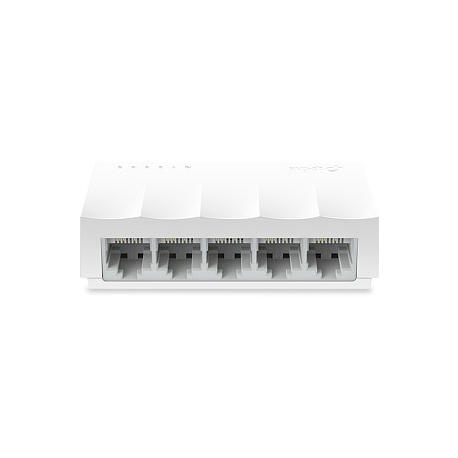

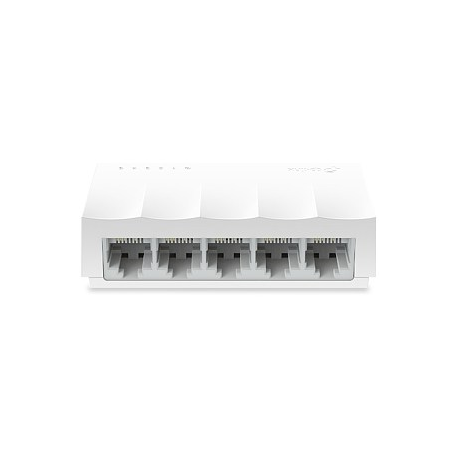

TP-Link LiteWave LS1005 - Switch - unmanaged - 5 x 10/100 - desktop
images are for illustrative purposes only
New
Article: 1685938 Intrastat: 85176200 SKU: LS1005
Pricing and stock details are available to registered users only.
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Networking standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support | N |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| MAC address table | 2000 entries |
| Switching capacity | 1 Gbit/s |
| Forwarding rate | 0.7 Mpps |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 2000 |
| Rack mounting | N |
| Product colour | White |
| Housing material | Plastic |
| LED indicators | Y |
| International Protection (IP) code | IP20, IP40 |
| Wall mountable | Y |
| Certification | CE, FCC, RoHS |
| Power supply included | Y |
| DC input voltage | 5 V |
| Input current | 0.6 A |
| Power consumption (max) | 1.65 W |
| Power over Ethernet (PoE) | N |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 5.627 BTU/h |
| Width | 83.6 mm |
| Depth | 45.7 mm |
| Height | 22.8 mm |
| Quick start guide | Y |
| Package type | Box |
| Package width | 88 mm |
| Package depth | 82 mm |
| Package height | 84 mm |
