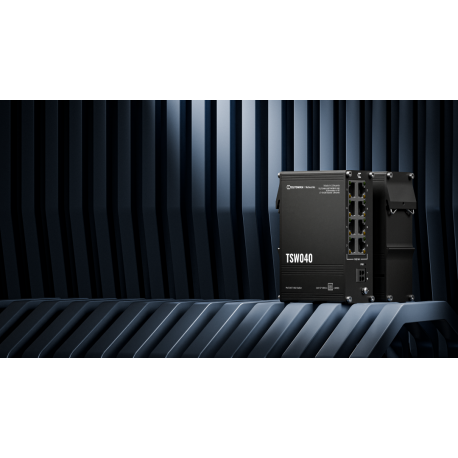

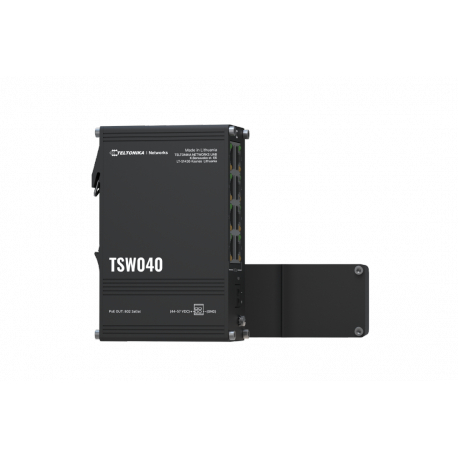

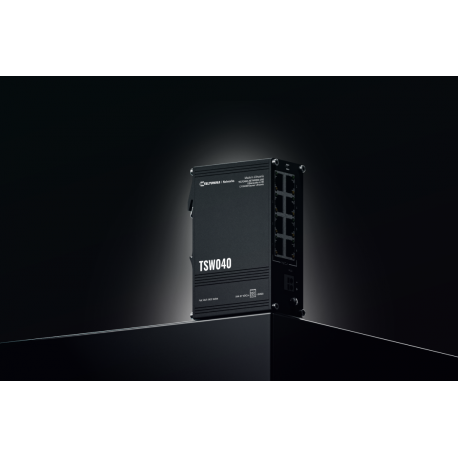

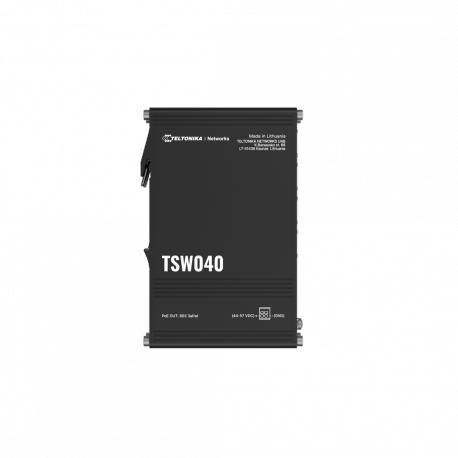

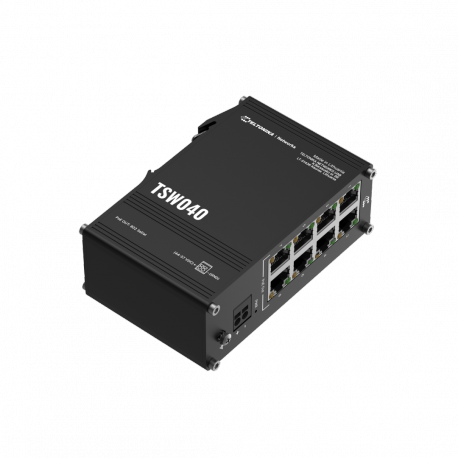

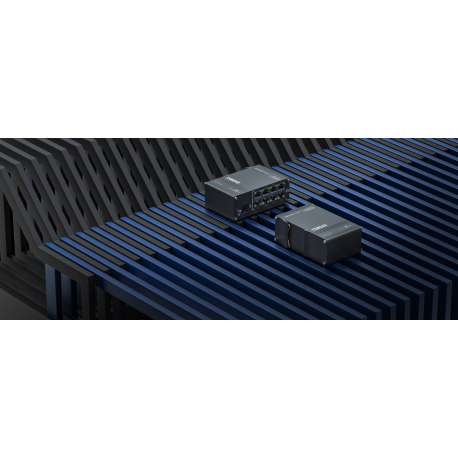

Teltonika TSW040 - Switch - Managed - 8 x 10 / 100 (PoE+) - DIN rail mountable - PoE+ (240 W)
Teltonika TSW040 - Switch - Managed - 8 x 10 / 100 (PoE+) - DIN rail mountable - PoE+ (240 W)
Manufacturer
•TELTONIKA
Reference
•TSW040
Article
•4244802
Intrastat
•85176200
Shipping weight
•0.28 kg
Total quantity in stocks
•18
Nearest delivery
•16.03.2026
Device Type
Switch - 8 ports - Managed

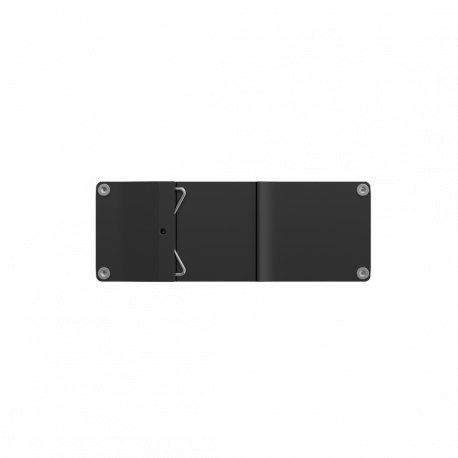

Enclosure Type
DIN rail mountable
Subtype
Fast Ethernet
Ports
8 x 10/100 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE Budget
240 W
Performance
Non-blocking bandwidth: 20 Gbps
Capacity
Packet buffer size: 128 KB
MAC Address Table Size
2K entries
Jumbo Frame Support
9216 bytes
Features
Auto-uplink (auto MDI/MDI-X), anodised aluminium housing
Compliant Standards
IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Status Indicators
Ethernet link/activity, power

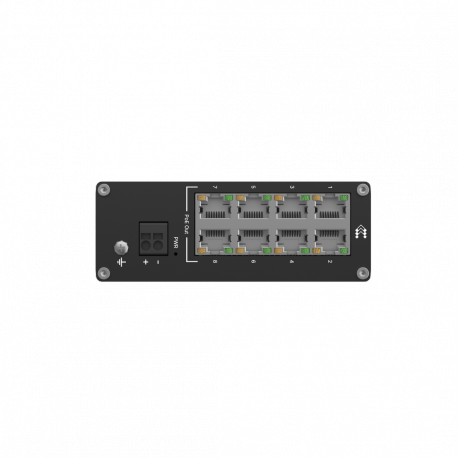

Interfaces
8 x 10/100 Base-T RJ-45 PoE+ - 30 W
Voltage Required
DC 7 - 57 V
Compliant Standards
IP30, UKCA, RCM, FCC, IC, CB, EAC, UCRF, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 61000-4-2:2009, EN 61000-4-3:2020, IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014+A1:2017, EN 61000-4-6:2014, EN IEC 61000-4-11:2020, IEC 62368-1:2018
Width
11.31 cm
Depth
7.46 cm
Height
4.12 cm
Weight
280 g
Shipping Width
11.85 cm
Shipping Depth
7.95 cm
Shipping Height
4.57 cm
Min Operating Temperature
-40 °C
Max Operating Temperature
75 °C
Humidity Range Operating
10 - 90% (non-condensing)
