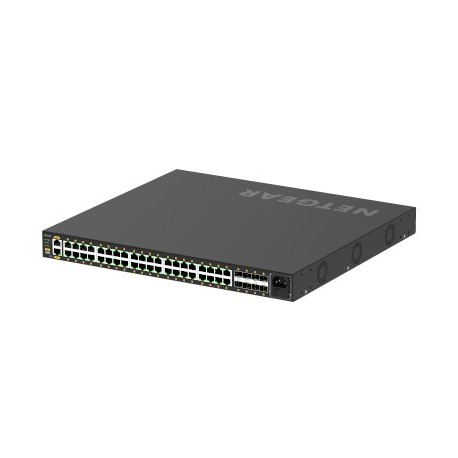

Switch - 40 ports - L3 - Managed

Side to side airflow rack-mountable 1U

Gigabit Ethernet

40 x 10/100/1000 (PoE+) + 8 x 1000Base-X SFP

PoE+

480 W

Switching capacity: 96 Gbps Firewall throughput (64-byte packet size): 71.42 Mpps 1 Gbps fibre latency (64-byte packets): 1.074 µs 1 Gbps fibre latency (512-byte packets): 1.109 µs 1 Gbps fibre latency (1024-byte packets): 1.106 µs 1 Gbps fibre latency (1518-byte packets): 1.102 µs 1 Gbps copper latency (64-byte packets): 2.027 µs 1 Gbps copper latency (512-byte packets): 2.343 µs 1 Gbps copper latency (1024-byte packets): 2.462 µs 1 Gbps copper latency (1518-byte packets): 2.358 µs

ARP entries: 4000 NDP entries: 4000 Packet buffer size: 32 MB VLANs supported: 4093 IGMP multicast groups: 4000 QoS hardware queues: 8 IPv4 routes (static): 64 IPv6 routes (static): 64 RIP application route scaling (IPv4): 32 IPv4 groups (Multicast): 512 IPv6 groups (Multicast): 128

16K entries

12KB

RIP-1, RIP-2, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, PIM-SMv6, PIM-DMv6, MSTP, RSTP, STP

SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, SFTP, ICMP, DHCP, TACACS+, RADIUS

AES, TLS 1.0, SSL 3.0, TLS 1.2

Secure Shell (SSH), RADIUS, TACACS+

Flow control, auto-sensing per device, BOOTP support, IGMP snooping, port mirroring, DiffServ support, store and forward, MAC address filtering, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, SNTP support, Weighted Random Early Detection (WRED), sFlow, DHCP snooping, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), LACP support, LLDP support, DHCP relay, Port Security, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Multicast VLAN Registration (MVR), dual firmware images, Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Strict Priority (SP), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), IGMP proxy, 802.1x authentication, Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, cable test, MLD proxy, IP source guard, GARP Multicast Registration Protocol (GM

IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX

X ARM: 1.8 GHz

2 GB

256 MB

Port status, power, fan, PoE max

40 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W 8 x 1000Base-X SFP 1 x management (Gigabit LAN) RJ-45 1 x management (RS-232) RJ-45 1 x USB-C 1 x USB Type A

Internal power supply

1

624.8 Watt

46.4 Watt

Rubber feet, rubber caps

1 x console cable 1 x USB-C to USB-A cable

Included

341,680 hours

cUL, EN 60950, UL 1950, CB, CCC, EN 60950-1, GB 4943, RCM, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, IEC 950, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011+A2:2013, ANSI C63.4:2014

Europe

44 cm

40 cm

4.32 cm

5.852 kg

Limited warranty - lifetime Limited warranty - technical support - 90 days

0 °C

45 °C

90% (non-condensing)

-20 °C

70 °C

95% (non-condensing)
