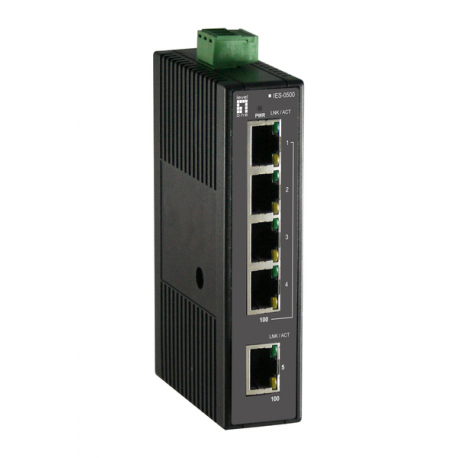

LevelOne Infinity IES-0500 - Switch - unmanaged - 5 x 10 / 100 - DIN rail mountable - DC power
LevelOne Infinity IES-0500 - Switch - unmanaged - 5 x 10 / 100 - DIN rail mountable - DC power
Manufacturer
•LEVELONE
Reference
•IES-0500
Article
•3115575
Intrastat
•85176200
Shipping weight
•0.46 kg
Total quantity in stocks
•42
Nearest delivery
•30.03.2026
Switch type
Unmanaged
Quality of Service (QoS) support
Y
Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Networking standards
IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support
N
Copper ethernet cabling technology
10BASE-T, 100BASE-FX, 100BASE-TX
Full duplex
Y
Flow control support
Y
Auto MDI/MDI-X
Y
Auto-negotiation
Y
MAC address table
2048 entries
Store-and-forward
Y
Packet forwarding rate (100 Mbps)
148810 pps
Packet forwarding rate (10 Mbps)
14880 pps
Packet buffer memory
0.384 MB
Product colour
Black
Housing material
Plastic
LED indicators
Activity
International Protection (IP) code
IP30
Country of origin
Taiwan
Certification
FCC
EN61000-6-4
EN55022
EN61000-3-2
EN61000-3-3
EN61000-6-2
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
EN61000-4-8
IEC60068-2-6 Fc
IEC60068-2-27 Ea
IEC60068-2-32 Ed
Mean time between failures (MTBF)
1677802 h
Power consumption (max)
4.3 W
Power over Ethernet (PoE)
N
Operating temperature (T-T)
-10 - 60 °C
Storage temperature (T-T)
-25 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Width
26 mm
Depth
70 mm
Height
110 mm
Weight
200 g
Quick start guide
Y
Manual
Y
Package width
180 mm
Package depth
79 mm
Package height
221 mm
Package weight
460 g
Harmonized System (HS) code
85176990
