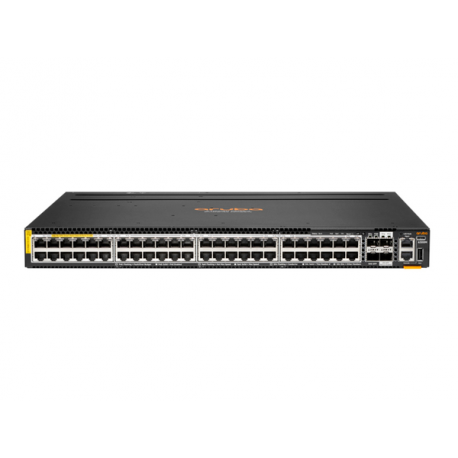

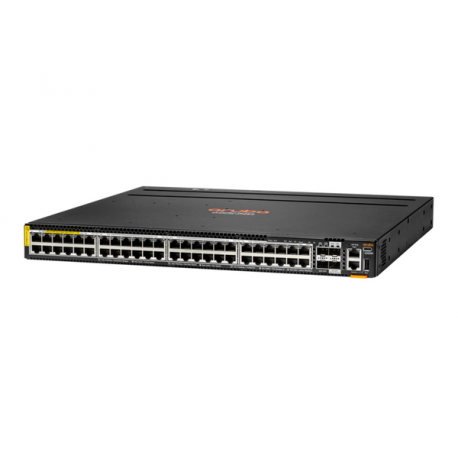

Switch - 48 ports - L3 - Managed - stackable

Front and side to back rack-mountable 1U

Gigabit Ethernet

48 x 100/1000/2.5G/5G (PoE++) + 2 x 1 Gigabit / 10 Gigabit / 25 Gigabit SFP + 2 x 10 Gigabit / 25 Gigabit / 50 Gigabit SFP (uplink / stacking)

PoE++

Switching capacity: 880 Gbps Throughput: 654 Mpps Latency (1 Gbps): 4.24 µs Latency (10 Gbps): 1.5 µs Latency (25 Gbps): 2.91 µs Latency (50 Gbps): 3.49 µs Stacking bandwidth: 200 Gbps

Switched virtual interfaces (SVIs): 1024 IPv4 host table capacity: 49152 IPv6 host table capacity: 49152 IPv4 routes (Unicast): 61000 IPv6 routes (Unicast): 61000 IPv4 routes (Multicast): 8192 IPv6 routes (Multicast): 8192 IGMP groups: 8192 MLD groups: 8192 IPv4 ACL entries (ingress): 20480 IPv6 ACL entries (ingress): 5120 MAC ACL entries (ingress): 20480 IPv4 ACL entries (egress): 8192 IPv6 ACL entries (egress): 2048 MAC ACL entries (egress): 8192

32768 entries

9198 bytes

OSPF, BGP-4, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, MSDP, ECMP, policy-based routing (PBR), MLD, Bidirectional Forwarding Detection (BFD), MSTP, RSTP, STP

SNMP, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI

FIPS 140-2

Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, IPv6 support, High Availability, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Deficit Weighted Round Robin (DWRR), LLDP support, fan tray, Management Information Base (MIB), DHCP protection, dual firmware images, Multiple VLAN Registration Protocol (MVRP), packet storm protection, Class of Service (CoS), broadcast storm protection, Type of Service (ToS), Bridge protocol data unit (BPDU), Virtual Extensible LAN (VXLAN), Multicast Storm Protection, Network Timing Protocol (NTP), RA guard, Zero-touch provisioning (ZTP), Protocol Independent Multicast (PIM), VLAN Tagging, Rapid Reconfiguration of Spanning Tree (RSTP), IPv4 and IPv6 dual stack, IP multicast, Bootstrap Router (BSR) Mechanism, Aruba Virtual Switching Framework (VSF), dynamic IPv6 lockdown, ND snooping, Unicas

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, IEEE 802.1AX, IEEE 802.3bt

1 x ARM: 1.8 GHz

8 GB DDR4 SDRAM

32 GB

48 x 100/1000/2.5G/5G (PoE++) RJ-45 2 x 1/10/25Gbit LAN SFP 2 x 10/25/50Gbit LAN SFP 1 x USB-C console 1 x USB Type A host 1 x console RJ-45

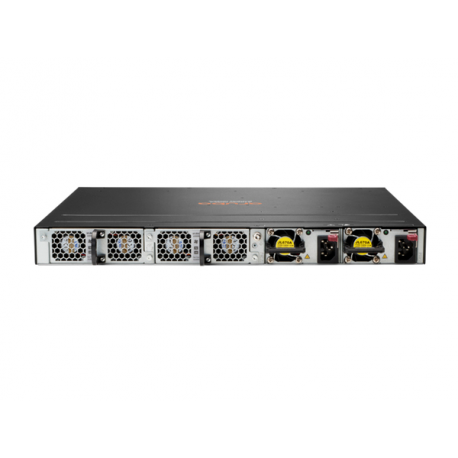

Internal power supply - hot-plug

1

2

Optional

1+1 (with optional power supply)

(50/60 Hz)

Rack kit (2 post)

Included

EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, ICES-003 Class A, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, VCCI Class A, IEC 60950-1:2005, EN 61000-3-3:2013, EN 61000-3-2:2014, EN 60825-1:2007, FCC CFR47 Part 15 B Class A, CNS 14336-1, IEC 60825-1:2007 Class 1, CISPR 32:2015+COR1:2016, EN 60950-1:2006+A1:2010+A11:2009+A2:2013+A12:2011, EN 55035:2017, EN 62368-1:2014+A11:2017, EN 55032:2015+AC:2016 Class A, IEC 62368-1: 2014, CISPR 35:2016 Class A

44.2 cm

38.5 cm

4.4 cm

5.48 kg

Limited warranty - lifetime

0 °C

45 °C

15 - 95% (non-condensing)

-40 °C

70 °C

15 - 95% (non-condensing)
