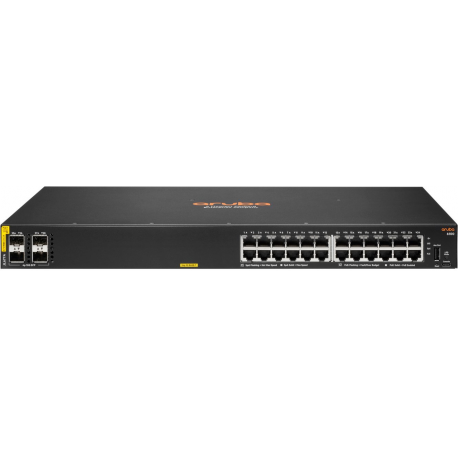

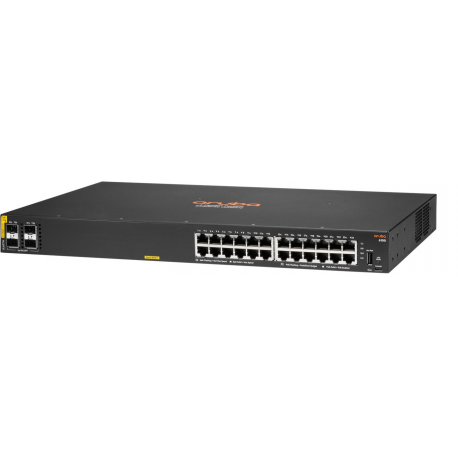

HPE Aruba 6100 24G Class4 PoE 4SFP+ - Switch - L3 - Managed - 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ - side to side airflow - rack-mountable - PoE+ (370 W)
HPE Aruba 6100 24G Class4 PoE 4SFP+ - Switch - L3 - Managed - 24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+ - side to side airflow - rack-mountable - PoE+ (370 W)
Manufacturer
•HPE
Reference
•JL677A#ABB
Article
•1813781
Intrastat
•85176200
Shipping weight
•5.46 kg
Total quantity in stocks
•6
Nearest delivery
•08.05.2026
Device Type
Switch - 28 ports - L3 - Managed - stackable
Enclosure Type
Side to side airflow rack-mountable 1U
Subtype
10 Gigabit Ethernet
Ports
24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE+
PoE Budget
370 W
Performance
Switching capacity: 128 Gbps
Throughput: 95.2 Mpps
Latency (1 Gbps): 1.5 µs
Latency (10 Gbps): 1.8 µs
Capacity
Switched virtual interfaces (SVIs): 16
ARP entries: 1024
IPv4 routes (Unicast): 512
IPv6 routes (Unicast): 512
IGMP groups: 512
MLD groups: 512
IPv4 ACL entries (ingress): 256
IPv6 ACL entries (ingress): 128
MAC ACL entries (ingress): 256
MAC Address Table Size
8192 entries
Routing Protocol
IGMPv2, IGMPv3
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, MLD snooping, LACP support, LLDP support, port based access control, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), EntityMIB, DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing
Compliant Standards
IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Processor
1 x ARM A9: 1.016 GHz
RAM
4 GB DDR3 SDRAM
Flash Memory
16 GB
Interfaces
24 x 10/100/1000 Base-T RJ-45
4 x 1/10Gbit LAN SFP+
1 x USB-C console
1 x USB Type A
Power Device
Internal power supply
Power Provided
500 Watt 2.3 A
Voltage Required
AC 230V (50/60 Hz)
Power Consumption Operational
22.9 Watt
Compliant Standards
FCC Class A certified, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, Laser Class 1, UL 60950-1 Second Edition, EN 60825, VCCI Class A, EN 60825-1:2007, CAN/CSA C22.2 No. 60950 Second Edition, IEC 60825-1:2007 Class 1, EN 55022/CISPR 22 Class A, RFC1213, RFC1493, RFC2674, IEC/EN 60950-1, RFC768, RFC2460, RFC2925, RFC1591, RFC783, RFC792
Localisation
English / Europe
Width
44.2 cm
Depth
26.82 cm
Height
4.39 cm
Weight
4.19 kg
Service & Support
Limited warranty - lifetime
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Humidity Range Storage
15 - 90% (non-condensing)
