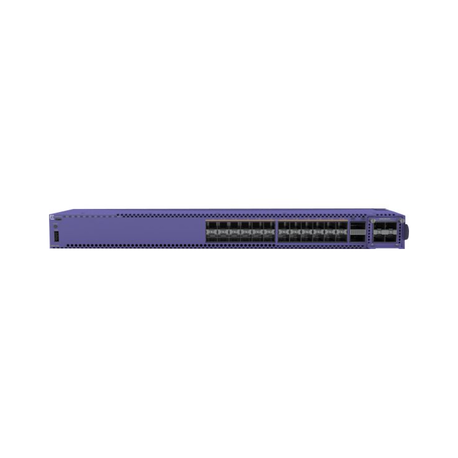

Switch - 24 ports - Managed - stackable

1 year XIQ Pilot subscription

Rack-mountable 1U

10 Gigabit Ethernet

24 x 10 Gigabit SFP+

Aggregate switching bandwidth: 1.08 Tbps Forwarding performance: 803.5 Mpps

8

3 fan trays, Energy-Efficient Ethernet (EEE), Media Access Control Security (MACsec), 2 fan modules

IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3by, IEEE 802.3bz

24 x 10GBase-X SFP+ 2 x network stack device QSFP28 stacking 1 x serial (console) RJ-45 1 x management (Gigabit LAN) RJ-45 2 x USB Type A 1 x console (micro-USB) Type B

1 (total) / 1 (free) x Versatile Interface Module (VIM)

Internal power supply

0 (installed) / 2 (max)

Optional

AC 120/230 V (50/60 Hz)

BSMI, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, SABS, EN55024, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-3, CCC, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, EN 6100-3-2, CDRH, VCCI Class A, EAC, EN 300 386 V1.6.1, RoHS 2011/65/EU, EN 6100-4-2, EN 55011 class A, CISPR 11 class A, WEEE 2012/19/EU, FCC CFR47 Part 15 A, LVD 2014/35/EU, GB 4943.1-2011, EN 6100-3-3, Directive 2014/30/EU, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, NRCS, EN/ETSI 300 753, ASTM D3580, CISPR 24:2010 Class A, ACMA RCM, CISPR 32 Class A, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, China RoHS SJ/T 11363-2006, RoHS CNS 15663, EN/ETSI 300 019-2-1 v2.1.2 - Class 1.2, EN/ETSI 300 019-2-2 v2.1.2 - Class 2.3, EN/ETSI 300 019-2-3 v2.1.2 - Class 3.1e, FCC CFR21 Part 1040.10, AS/NZS CISPR 32, GB/T9254-2008, CAN/CSA-C22.2 No. 62368-1-14

44.1 cm

44.2 cm

4.4 cm

6.25 kg

Limited warranty - lifetime

0 °C

50 °C

10 - 95% (non-condensing)

-40 °C

70 °C

10 - 95% (non-condensing)
