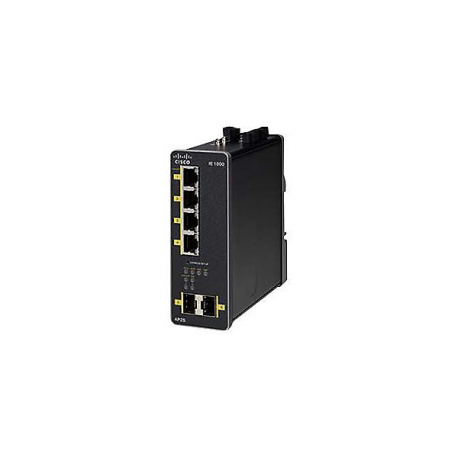

Cisco Industrial Ethernet 1000 Series - Switch - Managed - 4 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink) - DIN rail mountable - PoE+ - DC power
Cisco Industrial Ethernet 1000 Series - Switch - Managed - 4 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink) - DIN rail mountable - PoE+ - DC power
Manufacturer
•CISCO
Reference
•IE-1000-4P2S-LM
Article
•2754881
Intrastat
•85176200
Shipping weight
•0.969 kg
Total quantity in stocks
•7
Nearest delivery
•08.05.2026
Device Type
Switch - 6 ports - Managed
Enclosure Type
DIN rail mountable
Subtype
Gigabit Ethernet
Ports
4 x 10/100/1000 (PoE+) + 2 x 1000Base-X SFP (uplink)
Power Over Ethernet (PoE)
PoE+
Routing Protocol
IGMPv2, IGMP
Remote Management Protocol
SNMP 2, SNMP, RMON, SNMP 3, HTTP, SSH
Authentication Method
Secure Shell (SSH), RADIUS
Features
DHCP support, BOOTP support, IGMP snooping, Syslog support, full duplex mode, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, DHCP server, static IP mode, LLDP support, Port Security, Management Information Base (MIB), Class of Service (CoS), DiffServ Code Point (DSCP) support, Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Management Information Base (MIB) II
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM
128 MB
Flash Memory
160 MB
Interfaces
4 x 1000Base-T RJ-45
2 x 1000Base-X SFP
Voltage Required
DC 48 - 54 V
Power Consumption Operational
140.4 Watt
MTBF
374,052 hours
Compliant Standards
CISPR 22 Class A, EN55022, NOM, CB, EMC, ICES-003 Class A, RoHS, IEC 60068-2-30, KCC, WEEE, IEC 60068-2-27, IEC 60068-2-6, ANATEL, EN 61131-2, EN 61326-1, IEC 60068-2-64, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, CEM, EMI, IP30, IEC 60068-2-56, VCCI Class A, EN 50581, EAC, China RoHS, RCM, AS/NZS CISPR22:2004 Class A, NOM-001-SCFI-1993, CISPR 11 class A, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD, IEC60950-1, IEC 60068-2-3, FCC CFR47 Part 15 A, UL/CSA60950-1, UL/CSA/IEC/EN 61010-2-201, EN 55016-1-1 Class A, EN 55016-1-4 Class A, EN 55016-2-3 Class A, AS/NZS CISPR 24, NAL, IEC/EN/EN61000-4-2, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-9, IEC/EN 61000-4-29, IEC 60068-2-47, IEC/EN 61000-6-1, IEC/EN 61000-6-2, IEC/EN 61000-6-4
Width
13.4 cm
Depth
4.57 cm
Height
12.7 cm
Weight
770 g
Min Operating Temperature
-40 °C
Max Operating Temperature
70 °C
Humidity Range Operating
5 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
85 °C
Humidity Range Storage
5 - 95% (non-condensing)
