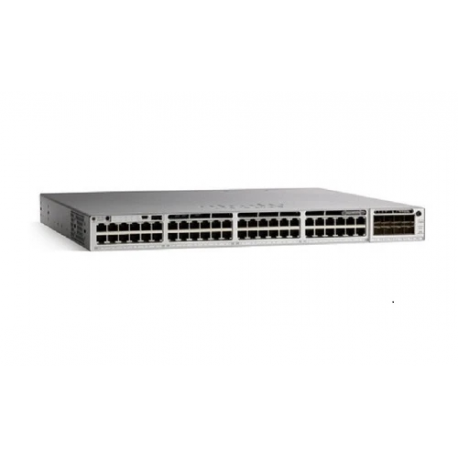

Cisco Catalyst 9300L - Network Essentials - switch - 48 ports - Managed - rack-mountable

Switch - 48 ports - L3 - Managed - stackable

Rack-mountable

Gigabit Ethernet

48 x 10/100/1000 (UPOE) + 4 x 10 Gigabit SFP+ (uplink)

UPOE

675 W

Switching capacity: 392 Gbps Switching capacity with stacking: 712 Gbps Forwarding rate: 291.66 Mpps Forwarding rate with stacking: 529.76 Mpps

IPv4 routes: 32000 IPv6 routes: 16000 Multicast scale: 8000 QoS scale entries: 5120 ACL scale entries: 5120 VLANs supported: 4094 Switched virtual interfaces (SVIs): 1000

32000 entries

9198 bytes

OSPF, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, gRPC, IPv4, IPv6, YANG

Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Energy Efficient Ethernet, Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, 16MB packet buffer, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Blue Beacon LED, Zero-touch provisioning (ZTP), secure boot, Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Trust Anchor module, Cisco Unified Access Data Plane (UADP) 2.0, Cisco StackWise-320 technology

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bt, Wi-Fi CERTIFIED 6

AC 120/230 V (50 - 60 Hz)

Optional

44.5 cm x 4.4 cm x 48.8 cm

7.65 kg

Limited lifetime warranty
