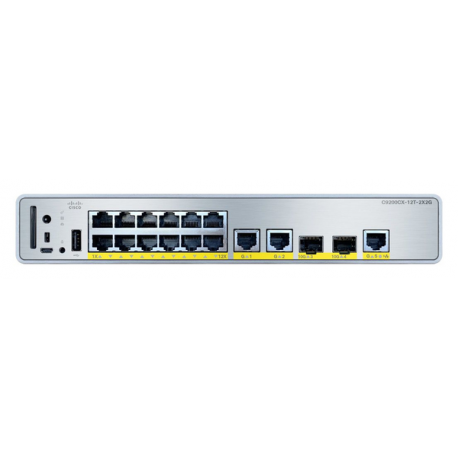

Cisco Catalyst 9200CX - Network Essentials - switch - compact - L3 - Managed - 12 x 1000Base-T + 3 x 1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - rack-mountable - UPOE+
Cisco Catalyst 9200CX - Network Essentials - switch - compact - L3 - Managed - 12 x 1000Base-T + 3 x 1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink) - rack-mountable - UPOE+
Manufacturer
•CISCO
Reference
•C9200CX-12T-2X2G-E
Article
•3035125
Intrastat
•85176200
Shipping weight
•2.872 kg
Total quantity in stocks
•3
Nearest delivery
•08.05.2026
Device Type
Switch - 12 ports - L3 - Managed
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
12 x 1000Base-T + 3 x 1000Base-T + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)
UPOE+
Performance
Switching capacity: 120 Gbps
Forwarding rate: 95.23 Mpps
Packet buffer size: 6 MB
Capacity
Virtual networks: 16
IPv4 routes: 14000
Direct IPv4 routes: 10000
Indirect IPv4 routes: 4000
IPv4 routing entries: 4000
IPv6 routing entries: 2000
Multicast scale: 1000
QoS scale entries: 1000
ACL scale entries: 1600
Flexible NetFlow entries: 16000
VLAN IDs: 4096
PVST instances: 128
STP Virtual Ports for PVST: 13000
STP Virtual Ports for MST: 13000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, YANG
Encryption Algorithm
256-bit AES
Features
Access Control List (ACL) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Zero-touch provisioning (ZTP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Unified Access Data Plane (UADP) 2.0, trustworthy systems
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at, IEEE 802.3bt
RAM
4 GB
Flash Memory
8 GB
Built-in Devices
RFID tag
Status Indicators
Power
Interfaces
12 x 1000Base-T RJ-45
2 x 1000Base-T RJ-45
2 x 1/10GBase-X SFP+ uplink
1 x 1000Base-T RJ-45 UPOE+ - 60 W
1 x console (micro-USB)
1 x USB 2.0
Expansion Slots
1 (total) / 1 (free) x SD Memory Card
Power Device
External power adapter
Power Provided
80 Watt
Voltage Required
AC 100-240 V
MTBF
755,270 hours
Compliant Standards
Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Software Included
Cisco IOS Universal 17.8
Width
26.9 cm
Depth
16.5 cm
Height
4.4 cm
Weight
1.81 kg
Service & Support
Limited warranty - replacement - lifetime - response time: next business day
Technical support - consulting - 90 days
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
