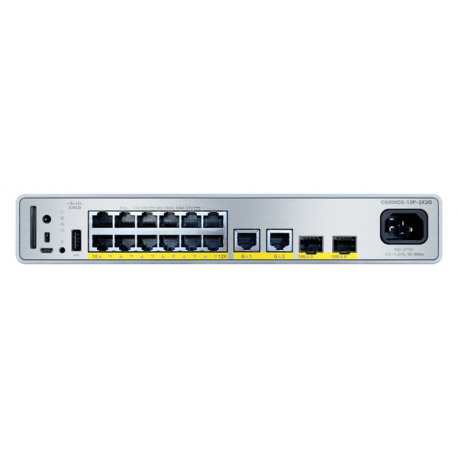

Switch - 12 ports - L3 - Managed

Rack-mountable 1U

Gigabit Ethernet

12 x 10/100/1000 (PoE+) + 2 x 1000Base-T + 2 x 10 Gigabit SFP+ (uplink)

PoE+

240 W

Switching capacity: 68 Gbps ¦ Forwarding rate: 50.59 Mpps

Virtual networks: 16 ¦ IPv4 routes: 14000 ¦ Direct IPv4 routes: 10000 ¦ Indirect IPv4 routes: 4000 ¦ IPv4 routing entries: 4000 ¦ IPv6 routing entries: 2000 ¦ Multicast scale: 1000 ¦ QoS scale entries: 1000 ¦ ACL scale entries: 1600 ¦ Flexible NetFlow entries: 16000 ¦ VLAN IDs: 4096 ¦ PVST instances: 128 ¦ STP Virtual Ports for PVST: 13000 ¦ STP Virtual Ports for MST: 13000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ IP SGT binding scale: 8000 ¦ IPv4 bindings: 8000 ¦ SGT/DGT policies: 2000 ¦ SXP Sessions: 200 ¦ Buffer capacity (MB): 6 ¦ Flexible NetFlow entries: 16000

32000 entries

9198 bytes

OSPF, RIP, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP

SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF, YANG

256-bit AES

Access Control List (ACL) support, Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, built-in ASIC, Control plane protection (CoPP), Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Unified Access Data Plane (UADP) 2.0, Preboot Execution Environment

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3at

4 GB

8 GB

RFID tag

Status, beaconing

12 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 2 x 1000Base-T RJ-45 ¦ 2 x 10GBase-X SFP+ uplink ¦ 1 x USB 2.0 Type A ¦ 1 x console (micro-USB) Type B

1 (total) / 1 (free) x SD Memory Card

Internal power supply

315 Watt

AC 100-277/ DC 120-418 V (50/60 Hz)

High Voltage DC (HVDC)

Plug and Play, EN 61000-3-2, EN 61000-3-3, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, EN 55035, CISPR 35

Cisco IOS XE 17.9 Universal

26.9 cm

24.4 cm

4.4 cm

2.99 kg

Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days

-5 °C

40 °C

5 - 90% (non-condensing)

-40 °C

70 °C

5 - 90% (non-condensing)
