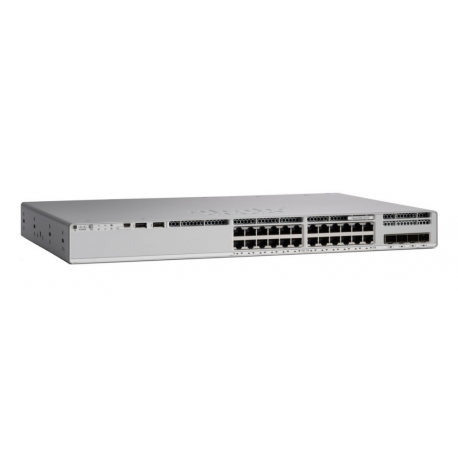

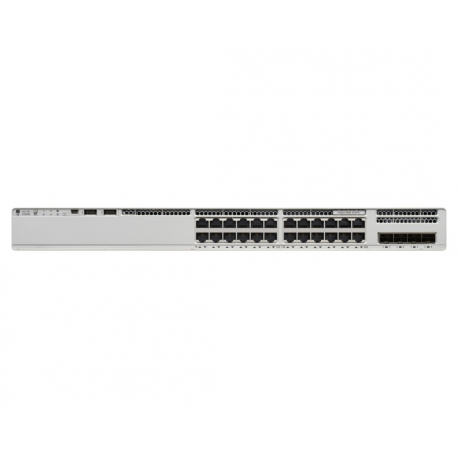

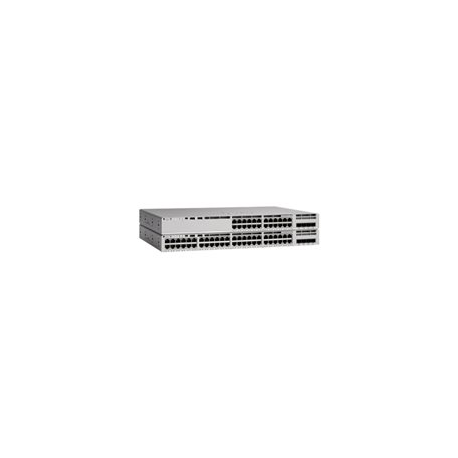

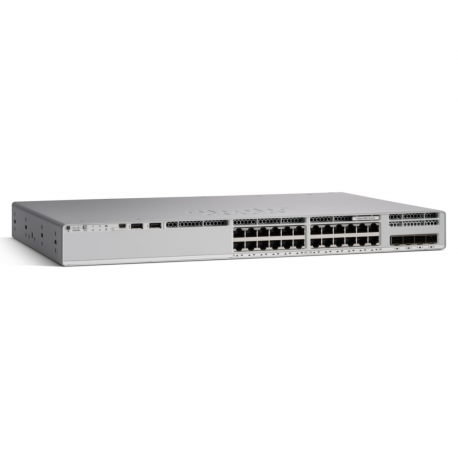

Cisco Catalyst 9200 - Switch - L3 - Managed - 24 x 10 / 100 / 1000 - rack-mountable

  • CATALYST 9200 24-PORT DATA (ONLY NETWORK ESSENTIALS IN)
  • CATALYST 9200 24-PORT DATA (ONLY NETWORK ESSENTIALS IN)
  • CATALYST 9200 24-PORT DATA (ONLY NETWORK ESSENTIALS IN)
  • CATALYST 9200 24-PORT DATA (ONLY NETWORK ESSENTIALS IN)
images are for illustrative purposes only

New

Article: 1591885 Intrastat: 85176200 SKU: C9200-24T-E
Pricing and stock details are available to registered users only.
 Add to compare
Device TypeSwitch - 24 ports - L3 - Managed - stackable
Enclosure TypeRack-mountable
SubtypeGigabit Ethernet
Ports24 x 10/100/1000
PerformanceStacking bandwidth: 160 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate: 190.4 Mpps
CapacityVirtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ Flexible NetFlow entries: 16000 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000
MAC Address Table Size32000 entries
Jumbo Frame Support9198 bytes
Routing ProtocolOSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm128-bit AES
FeaturesARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
RAM4 GB
Flash Memory4 GB
Interfaces24 x 10/100/1000 Base-T RJ-45 ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45
Expansion Slots1 (total) / 1 (free) x Expansion Slot
Power DeviceInternal power supply - hot-plug
Max Supported Qty2
Power RedundancyOptional
Power Provided125 Watt
Voltage RequiredAC 100-240 V (50 - 60 Hz)
MTBF587,800 hours
Compliant StandardsCISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Width44.5 cm
Depth35 cm
Height4.4 cm
Weight5 kg
Humidity Range Operating5 - 90% (non-condensing)
Min Storage Temperature-40 °C
Max Storage Temperature70 °C
Humidity Range Storage5 - 90% (non-condensing)
