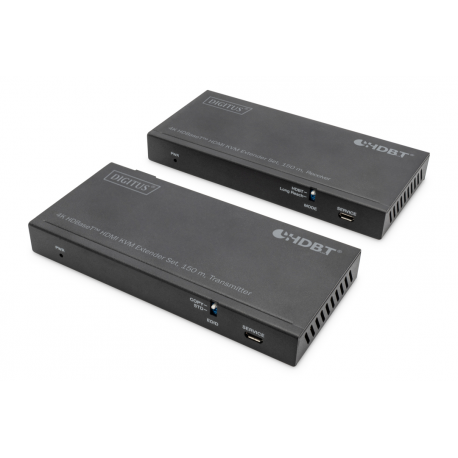

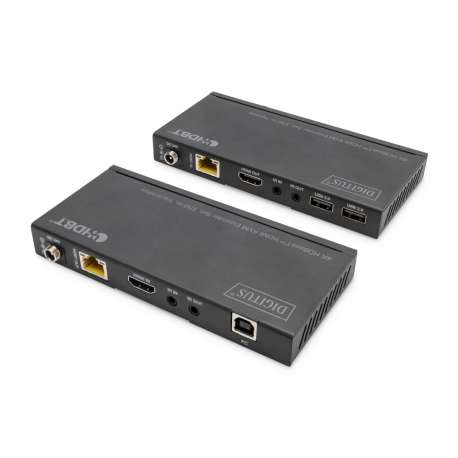

DIGITUS DS-55526 - Transmitter and receiver - KVM / audio / USB / infrared extender - HDBaseT - over CAT 6 / 6a - up to 150 m
DIGITUS DS-55526 - Transmitter and receiver - KVM / audio / USB / infrared extender - HDBaseT - over CAT 6 / 6a - up to 150 m
Manufacturer
•ASSMANN
Reference
•DS-55526
Article
•3172795
Intrastat
•85444210
Shipping weight
•1.09 kg
Total quantity in stocks
•51
Nearest delivery
•16.03.2026
Device Type
KVM / audio / USB/ infrared extender
Form Factor
External
Colour
Black
Connectivity Technology
Wired
Data Link Protocol
HDBaseT
Data Transfer Rate
18 Gbps
Max Resolution
4K @ 60 Hz
Max Transfer Distance
150 m
Features
Wall mountable, metal housing, HDR support, bi-directional IR, HDR10 support, Dolby Vision HDR support, HDR10+ support, Hybrid Log-Gamma (HLG) support, 4:4:4 chroma subsampling support, ESD Protector, touch screen support
Compliant Standards
USB 2.0
Interfaces
1 x HDMI input (transmitter) - 19 pin HDMI Type A female ¦ 1 x HDBaseT output (transmitter) - RJ-45 female ¦ 1 x IR input (transmitter) female ¦ 1 x IR output (transmitter) female ¦ 1 x USB 2.0 (transmitter) - Type B female ¦ 1 x micro-USB (transmitter) - Type B female ¦ 1 x HDMI output (receiver) - 19 pin HDMI Type A female ¦ 1 x HDBaseT (receiver input) - RJ-45 female ¦ 1 x IR input (receiver) female ¦ 1 x IR output (receiver) female ¦ 2 x USB 2.0 (receiver) - Type A female ¦ 1 x micro-USB (receiver) - Type B female
Included Accessories
Wall mounting kit
Cables Included
2 x IR cable - 1.5 m ¦ 1 x USB cable - 1.5 m
Compliant Standards
EDID compatible, HDCP 2.2
Power Over Ethernet (PoE)
PoC
Power Device
External power adapter
Power Consumption Operational
13.2 Watt
Dimensions (WxDxH) / Weight Details
Receiver: 14 cm x 6.5 cm x 1.8 cm / 249 g ¦ Transmitter: 14 cm x 6.5 cm x 1.8 cm / 245 g
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
