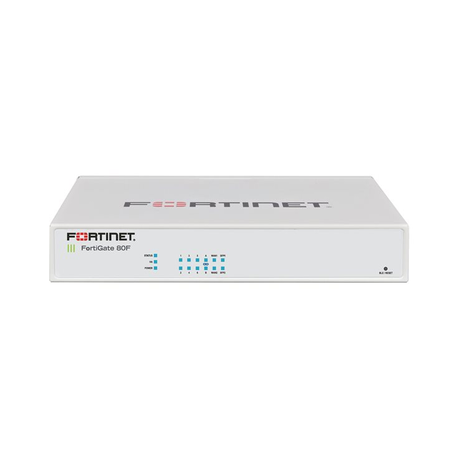

Security appliance

21.6 cm

16 cm

3.85 cm

2.4 kg

1 x Fortinet FortiASIC SOC4

Desktop

Wired

Ethernet, Fast Ethernet, Gigabit Ethernet

IPSec

IPS throughput: 1.4 Gbps ¦ NGFW throughput: 1 Gbps ¦ Threat protection throughput: 900 Mbps ¦ Firewall throughput (1518-byte UDP): 10 Gbps ¦ Firewall throughput (512-byte UDP): 10 Gbps ¦ Firewall throughput (64-byte UDP): 7 Gbps ¦ Firewall latency (64-byte UDP): 4 µs ¦ Firewall throughput: 10.5 Mpps ¦ VPN throughput (512-bit IPSec): 6.5 Gbps ¦ VPN throughput (SSL): 950 Mbps ¦ VPN throughput (SSL): 950 Mbps ¦ SSL inspection throughput: 715 Mbps ¦ Application control throughput: 1.8 Gbps ¦ CAPWAP throughput: 9 Gbps

Concurrent TCP sessions: 1500000 ¦ New TCP sessions per second: 45000 ¦ Firewall policies: 5000 ¦ Gateway to gateway IPSec VPN Tunnels: 200 ¦ Client to gateway IPSec VPN tunnels: 2500 ¦ Concurrent SSL VPN users: 200 ¦ SSL inspection CPS: 700 ¦ SSL inspection concurrent sessions: 100000 ¦ Virtual domains: 10 ¦ Number of FortiAP devices: 32 ¦ Number of FortiAP devices (tunnel mode): 16 ¦ Number of FortiToken devices: 500

VPN support, fanless, 3G/4G USB Dongle Support

SSL, TLS 1.3

8 x 1000Base-T - RJ-45 ¦ 2 x 1000Base-T/1000Base-X - RJ-45/SFP (mini-GBIC) (WAN) ¦ 1 x USB 3.0 - Type A ¦ 1 x console - RJ-45

UL, VCCI, BSMI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC, ICES, RCM, ICSA SSL-VPN, ICSA IPS

External power adapter

2

AC 120/230 V (50/60 Hz)

15.4 Watt

FortiOS

0 °C

40 °C

10 - 90% (non-condensing)
