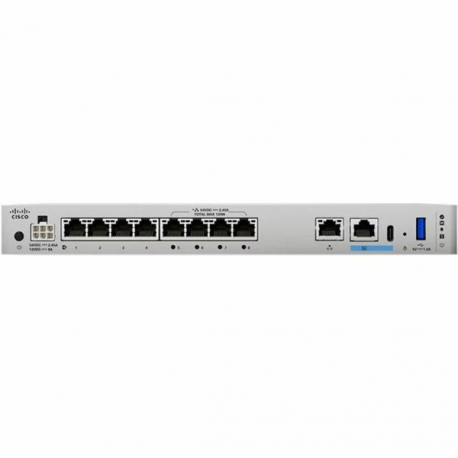

Security appliance

17.22 cm

27.43 cm

2.82 cm

1.44 kg

1.6 GHz

16 GB DDR5 SDRAM

SSD 480 GB x 1 - M.2 NVMe

Desktop

Wired

1 Gbps

Ethernet, Fast Ethernet, Gigabit Ethernet

Maximum throughput FW + AVC: 6 Gbps Maximum throughput FW + AVC + IPS (1024B): 6 Gbps NGIPS throughput (1024B): 6 Gbps IPSec VPN throughput (1024B TCP w/Fastpath): 5 Gbps TLS hardware decryption: 1 Gbps

New connections per second with AVC: 350000 Maximum concurrent sessions: 200000 Maximum VPN peers: 200 VRF instances (maximum): 5

Link/activity/speed, management, PoE, alarm, system, power

High Availability, 120W PoE power budget, reset button, 1 fan, auto duplex mode, auto-uplink (auto MDI/MDI-X)

IEEE 802.3at

4 x 1000Base-T - RJ-45 4 x 1000Base-T (PoE) - RJ-45 - 30 W 1 x serial / console - RJ-45 1 x management - RJ-45 1 x USB 3.0 - Type A 1 x USB - Type C

1 x console cable - 1.82 m

UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, UL 62368-1, CAN/CSA-C22.2 No. 62368-1, EN 62368-1, IEC 62368-1, AS/NZS 62368-1, FCC CFR 47 Part 15 Class A, AS/NZS CISPR22 Class A, CISPR 22 Class A, EN 55022 Class A, ICES-003 Class A, VCCI Class A, EN 61000-3-2, EN61000-3-3, KN22 Class A, CNS 13438 Class A, EN 300386, TCVN 7189, EN55024, CISPR 24, KN24, TVCN 7317, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11

PoE

External power adapter

AC 100-240 V (50/60 Hz)

32 Watt

Cisco Threat Defense 7.6, Cisco Essentials

Limited warranty - replacement - 90 days - response time: 10 days

0 °C

40 °C

5 - 85% (non-condensing)
