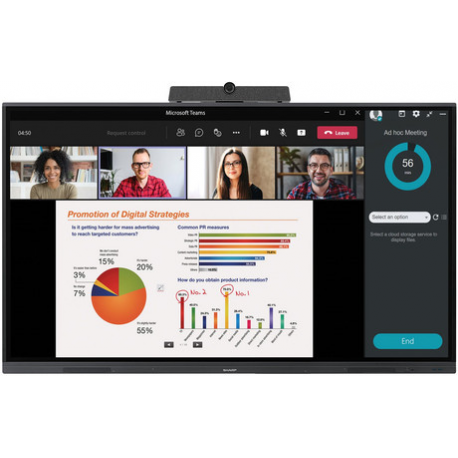

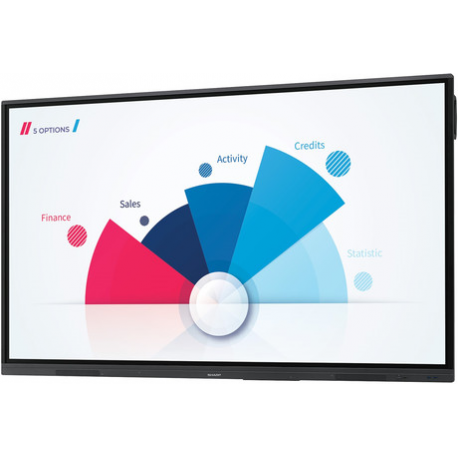

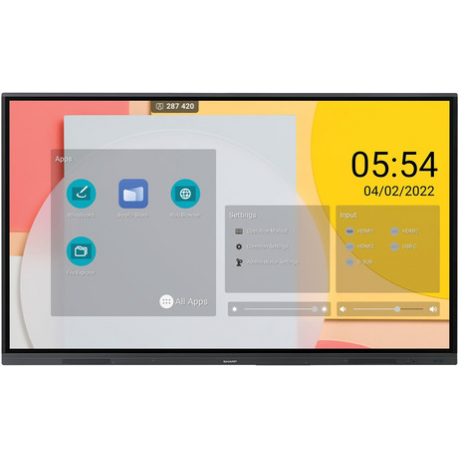

Sharp PN-L752B - 75" Diagonal Class L2B Series LED-backlit LCD display - digital signage - with touchscreen (multi touch) - 4K UHD (2160p) 3840 x 2160 - Direct LED
Sharp PN-L752B - 75" Diagonal Class L2B Series LED-backlit LCD display - digital signage - with touchscreen (multi touch) - 4K UHD (2160p) 3840 x 2160 - Direct LED
Manufacturer
•SHARP
Reference
•60005558
Article
•2733236
Intrastat
•85286980
Shipping weight
•49.5 kg
Product Type
LED-backlit LCD flat panel display
Power Consumption (Max)
400 Watt
Diagonal Class
75"
Commercial Use
Yes - digital signage
Combined With
Touchscreen (multi touch)
Series
L2B Series
TV Tuner
No tuner
TV Tuner Presence
No
Video Interface
HDMI
HDMI Ports Qty
3 ports
PC Interface
VGA (HD-15)
Modes
Landscape mode
Protection
Thermal protection, hardened glass
Width
170.94 cm
Depth
8.57 cm
Height
101.98 cm
Weight
49.5 kg
LCD Display Technology
VA
Resolution
3840 x 2160
Display Format
4K UHD (2160p)
Image Aspect Ratio
16:9
LCD Backlight Technology
Direct LED
Coating
Anti-glare, 8H Hard, 8% haze, 3.4 mm tempered glass
Image Contrast Ratio
5000:1
Brightness
350 cd/m²
Viewing Angle
178 degrees
Viewing Angle (Vertical)
178 degrees
Touchpoints Qty
20
Response Time
8.5 ms
Operation Hours / Days
16 / 7
Features
HID support, OPS Slot, precision touch technology, wireless screen sharing - Bytello Share, PDF Viewer, zero bonding technology
Flat Panel Mount Interface
800 x 400 mm
VESA Compatibility
Yes
Supported Computer Resolutions
1024 x 768 (XGA), 640 x 480 (VGA), 800 x 600 (SVGA), 1280 x 1024 (SXGA), 1280 x 960, 720 x 480, 1360 x 768, 1680 x 1050 (WSXGA+), 1920 x 1080, 1440 x 900, 720 x 576, 3840 x 2160, 4096 x 2160
Supported Pictures Formats
PDF
USB Port
Yes
Configuration
4 GB - 32 GB
Operating System
Android OS 9.0
Battery Form Factor
AAA type
Battery Included
Yes
Battery Included Qty
2
Speaker System
2 speakers
Output Power / Total
20 Watt
Speakers
2 x speaker - 10 Watt
Connectivity
Wi-Fi, LAN, Bluetooth
LAN Protocol
Fast Ethernet
Wi-Fi Protocol
802.11b, 802.11n, 802.11a, 802.11ac
Bluetooth Version
Bluetooth 5.0
Connector Type
VGA input ¦ 3 x HDMI ¦ USB-C with 65W Power Delivery ¦ RS-232 ¦ USB 2.0 ¦ 2 x USB 3.0 ¦ 4 x USB 3.0 ¦ Audio line-in ¦ Audio line-out ¦ LAN
Included Accessories
Remote control, 2 AAA batteries, 2 styluses, cable clamps
Cables Included
USB cable - 3 m ¦ HDMI cable
Compliant Standards
UL, cUL, FCC, RoHS, REACH, RCM, CE/EMC, HDCP
Power Device
Power supply
Input Voltage
AC 100-240 V (50/60 Hz)
Power Consumption Stand by
0.5 Watt
Battery
- AAA type
Included Qty
2
Service & Support
Limited warranty - 3 years ¦ Limited warranty - backlight - 3 years
Width (Shipping)
186.3 cm
Depth (Shipping)
22.5 cm
Height (Shipping)
115.5 cm
Weight (Shipping)
62 kg
Min Operating Temperature
5 °C
Max Operating Temperature
35 °C
Humidity Range Operating
20 - 80%
