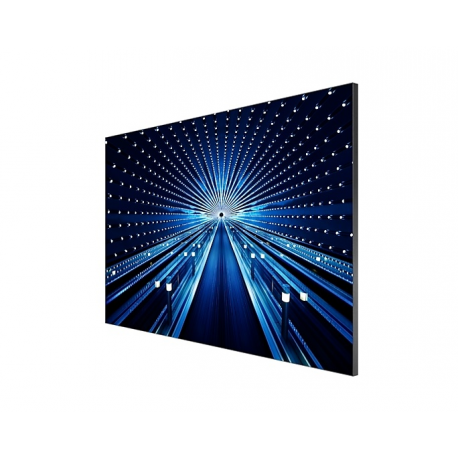

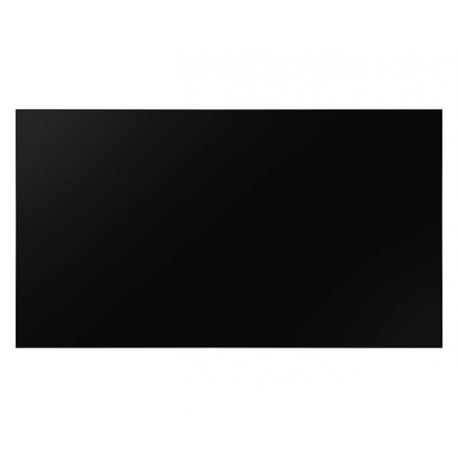

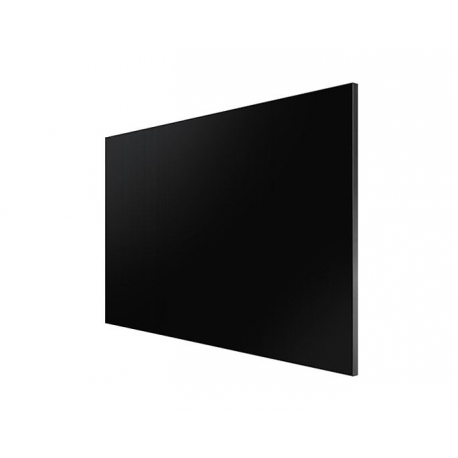

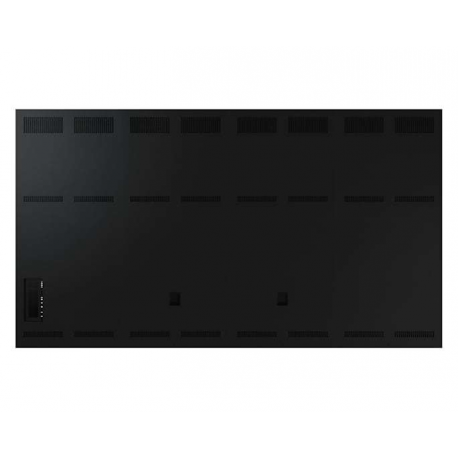

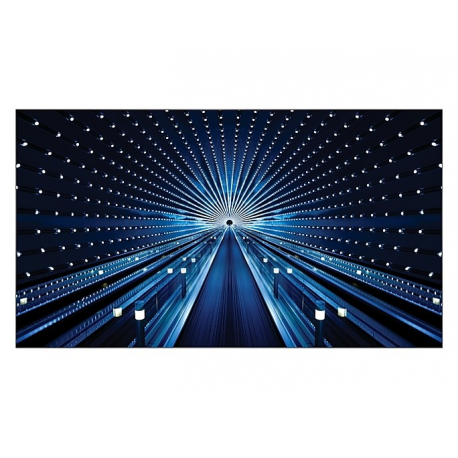

Samsung The Wall All-In-One IAB 146 2K - IAB Series LED video wall - digital signage - 1920 x 1080 146" - Flip-chip RGB LED - HDR
Samsung The Wall All-In-One IAB 146 2K - IAB Series LED video wall - digital signage - 1920 x 1080 146" - Flip-chip RGB LED - HDR
Manufacturer
•SAMSUNG
Reference
•LH016IABMHS/EN
Article
•3150321
Intrastat
•85286980
Shipping weight
•168 kg
Total quantity in stocks
•3
Nearest delivery
•30.03.2026
Product Type
LED video wall
Commercial Use
Yes - digital signage
Series
IAB Series
HDR Capable
Yes
HDR Format
HDR10, HDR10+
HDR Technology
HDR 10+, LED HDR, Micro HDR
Video Processor
Neural Quantum 4K
TV Tuner
No tuner
TV Tuner Presence
No
Sensors
Eco Sensor, temperature sensor
Video Interface
HDMI
HDMI Ports Qty
3 ports
PC Interface
DisplayPort
Modes
DICOM Simulation Mode
Picture Enhancements
Dynamic Peaking Technology, AI Picture, Black Seal Technology, Ultra Chroma Technology
Dimensions
Display unit
Width
322.56 cm
Depth
4.95 cm
Height
181.44 cm
Weight
168 kg
Frame Rate & Enhancement Technology
60 Hz Refresh Rate, 100 Hz Refresh Rate, 50 Hz Refresh Rate, 120 Hz Refresh Rate, 7680 Hz Refresh Rate, Micro Motion
Colour Temperature
2800 - 10000K
Image Contrast Ratio
22000:1
Brightness
1400 cd/m²
Viewing Angle
170 degrees
Viewing Angle (Vertical)
155 degrees
Commercial Features
Auto Source Switching & Recovery
Features
MagicInfo, 16-bit support, 20-bit processing
Resolution
1920 x 1080
Diagonal Size
146"
Pixel Pitch
1.68 mm
Pixel Configuration
1 red, 1 green, 1 blue
LED Type
Flip-chip RGB LED
LED Lifetime
150000 hours
Maintenance
Front
Modules Configuration (Per Cabinet)
16x12
USB Port
Yes
USB Ports Qty
2
Operating System
Tizen OS 6.5
Connectivity
Wi-Fi, Bluetooth
Connect & Share
Samsung Smart View+
Connector Type
DisplayPort ¦ 3 x HDMI ¦ 2 x USB 2.0 ¦ Audio line-out
Included Accessories
Decorative frame, spare parts kit, frame kit
Compliant Standards
EMC Class A, IP20, Safety 60950-1, Safety 62368-1, TUV low blue light
Power Device
Power supply
Input Voltage
AC 100-240 V (50/60 Hz)
Video Wall Display Unit Power Consumption (Max)
1240 W
Video Wall Display Unit Power Consumption (Typical)
860 W
Heat Generation Details
Cabinet - max - 4231 BTU ¦ Cabinet - typical - 2934 BTU
Service & Support
Limited warranty - 3 years
Width (Shipping)
200 cm
Depth (Shipping)
100 cm
Height (Shipping)
216.2 cm
Weight (Shipping)
301 kg
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 80% RH
