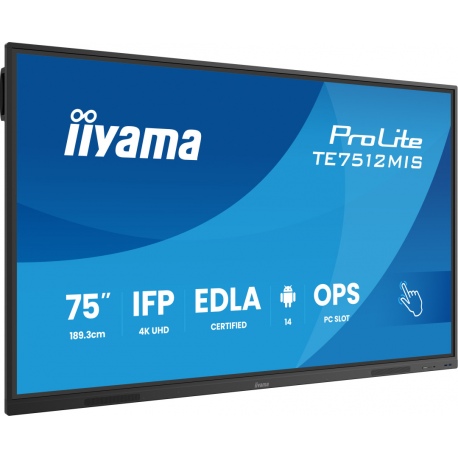

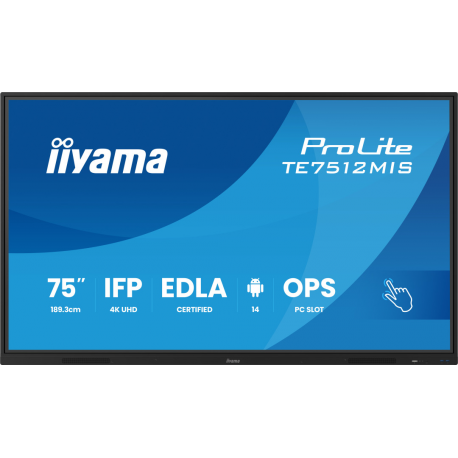

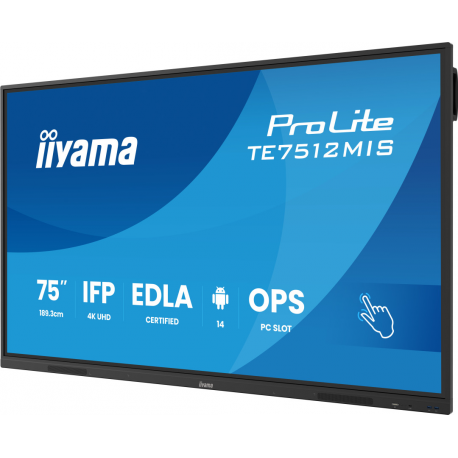

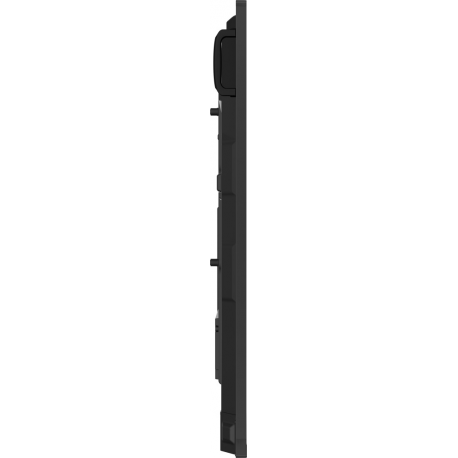

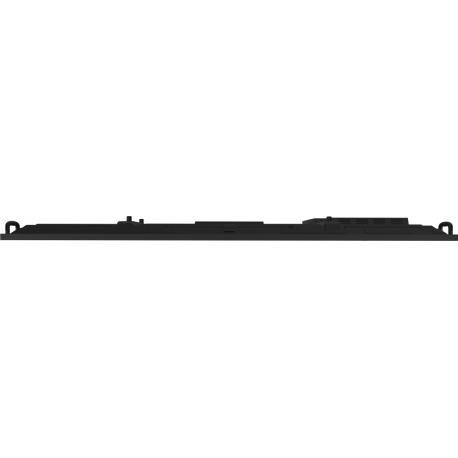

iiyama ProLite TE7512MIS-B4AG - 75" Diagonal Class (74.52" viewable) LED-backlit LCD display - interactive digital signage - with touchscreen (multi touch) / optional slot-in PC capability - 4K UHD (2160p) 3840 x 2160 - Direct LED - black (bezel), matte finish - with iiyama WiFi module (OWM002)
iiyama ProLite TE7512MIS-B4AG - 75" Diagonal Class (74.52" viewable) LED-backlit LCD display - interactive digital signage - with touchscreen (multi touch) / optional slot-in PC capability - 4K UHD (2160p) 3840 x 2160 - Direct LED - black (bezel), matte finish - with iiyama WiFi module (OWM002)
Manufacturer
•IIYAMA
Reference
•TE7512MIS-B4AG
Article
•4455854
Intrastat
•85286980
Shipping weight
•39 kg
Total quantity in stocks
•1
Nearest delivery
•30.03.2026
Product Type
LED-backlit LCD flat panel display
Energy Class
Class G
Power Consumption Operational
174 Watt
Power Consumption SDR (On mode)
174 kWh/1000h
Diagonal Class
75"
Diagonal Size
74.52"
Commercial Use
Yes - interactive digital signage
Bundled with
Iiyama WiFi module (OWM002)
Combined With
Touchscreen (multi touch) / optional slot-in PC capability
Operating System
Android OS 14
TV Tuner
No tuner
TV Tuner Presence
No
Sensors
Remote sensor, light sensor
Video Interface
HDMI
HDMI Ports Qty
2 ports
PC Interface
DisplayPort, USB-C, VGA (DB-15)
Modes
Landscape mode, kiosk mode
Design
Fanless Design, metal frame, Thin Bezel Design
Cooling System
Fanless
Dimensions
Without stand
Width
170.9 cm
Depth
9.8 cm
Height
102 cm
Weight
39 kg
Enclosure Colour
Black (bezel), matte finish
LCD Display Technology
VA
Pixel Pitch
0.43 mm
Colour Support
1070000000 colours
Resolution
3840 x 2160
Display Format
4K UHD (2160p)
Image Aspect Ratio
16:9
Frame Rate & Enhancement Technology
60 Hz Frame Rate
LCD Backlight Technology
Direct LED
Coating
Anti-glare, 7H Hard, 3 mm glass
Image Contrast Ratio
5000:1
Dynamic Contrast Ratio
8000:1
Brightness
400 cd/m²
Viewing Angle
178 degrees
Viewing Angle (Vertical)
178 degrees
Touchpoints Qty
40
Response Time
6.5 ms
Display Menu Language
English, German, French, Spanish, Italian, Russian, Czech, Dutch, Polish, Swedish, Finnish, Danish
Commercial Features
Media player
Operation Hours / Days
24 / 7
Features
24/7 operation time, OSD key lock, integrated iiWare 13E software, Frame Rate Control (FRC), Zero-Gap Air Bonding, MTBF 50000 hours, blue light reduction, +/- 1.5mm touch accuracy, PureTouch-IR technology, LAN Control, 92% light transmittance

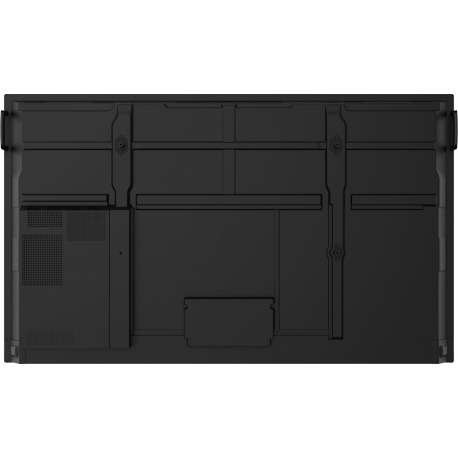

Flat Panel Mount Interface
800 x 400 mm
VESA Compatibility
Yes
Supported Memory Cards
microSD
USB Port
Yes
Configuration
Rockchip RK3576 - 8 GB - 128 GB - Mali-G52 MC3
Type
Remote control
Battery Included
Yes
Speaker System
2 speakers
Output Power / Total
32 Watt
Speakers
2 x main channel speaker - 16 Watt
Functionality
WEB browsing, digital video playback, Internet video playback
Connectivity
LAN, Wi-Fi, Bluetooth
LAN Protocol
Gigabit Ethernet
Wi-Fi Protocol
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Bluetooth Version
Bluetooth 5.0
Connect & Share
EShare

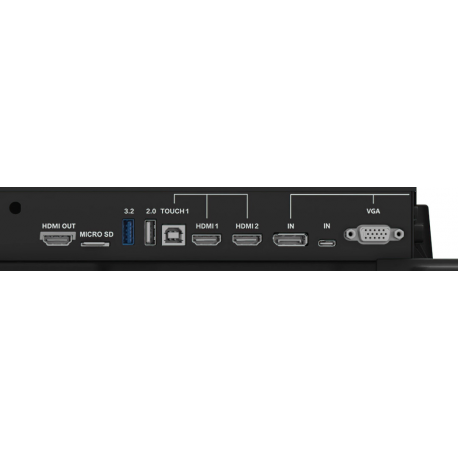

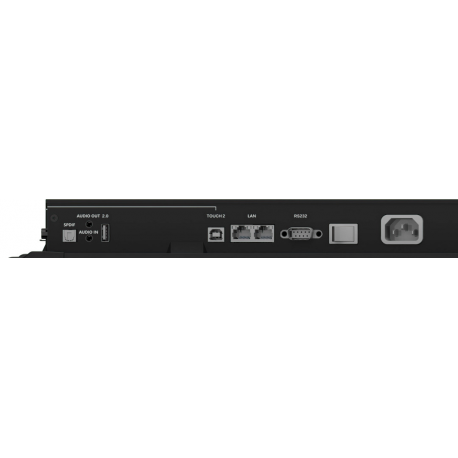

Connector Type
2 x HDMI input ¦ DisplayPort input ¦ HDMI output ¦ Touch ¦ USB-C 2.0 ¦ VGA input ¦ Audio input ¦ Audio output ¦ USB 2.0 (for software update only) ¦ SPDIF output ¦ 2 x Gigabit LAN ¦ RS-232C input ¦ USB-C 3.2 Gen 1 with DisplayPort 1.2, touchscreen, 65W Power Delivery ¦ USB 3.2 Gen 1
Included Accessories
4 touch pens, Mounting bracket for NUC, Mounting bracket for webcam

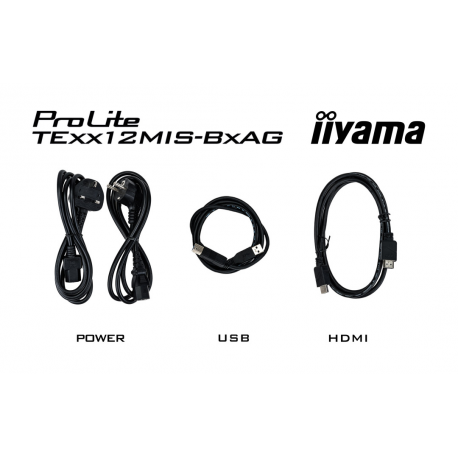

Cables Included
HDMI cable ¦ USB cable
Compliant Standards
Google EDLA, Plug and Play, DDC-2B, CB, TUV Bauart, EAC, RoHS, ERP, WEEE, REACH, REACH SvHC, HDCP 2.1, HDCP 2.2, EPA 8.0
Power Device
Power supply
Input Voltage
AC 100-240 V (50/60 Hz)
Power Consumption Stand by
0.5 Watt
Power Consumption (Off Mode)
0.3 Watt
Service & Support
Limited warranty - 5 years
Width (Shipping)
186.3 cm
Depth (Shipping)
22.5 cm
Height (Shipping)
114.8 cm
Weight (Shipping)
51.5 kg
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% (non-condensing)
