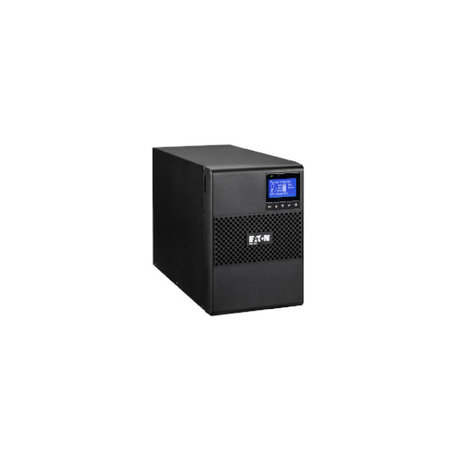

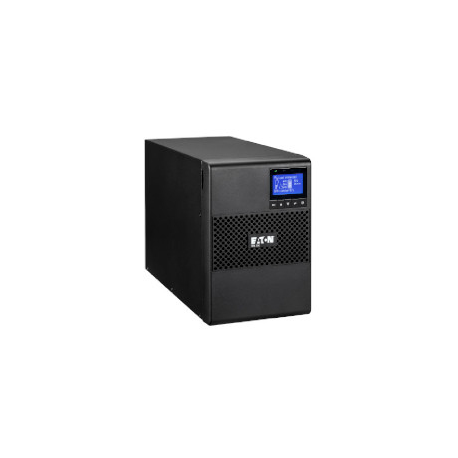

Eaton 9SX 9SX700I - UPS - AC 200 / 208 / 220 / 230 / 240 V - 630 Watt - 700 VA - RS-232, USB - output connectors: 6 - PFC
Eaton 9SX 9SX700I - UPS - AC 200 / 208 / 220 / 230 / 240 V - 630 Watt - 700 VA - RS-232, USB - output connectors: 6 - PFC
Manufacturer
•EATON
Reference
•9SX700I
Article
•1545818
Intrastat
•84734080
Shipping weight
•13.8 kg
Total quantity in stocks
•12
Nearest delivery
•23.03.2026
Device Type
UPS - Power Factor Correction (PFC) - external
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 120 - 276 V
Frequency Provided
50/60 Hz
Frequency Required
40 - 70 Hz
Input Connectors
1 x power IEC 60320 C14 10A
Power Output Connectors Details
6 x power IEC 60320 C13 10A
Output Voltage
AC 200/208/220/230/240 V 50/60 Hz
Power Capacity
630 Watt / 700 VA
Power Factor (PF)
0.9
Run Time (Up To)
7.5 min at 500 Watts ¦ 14 min at 300 Watts
Remote Management Interface
RS-232, USB
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ EPO (emergency power off) - mini terminal block ¦ Relay output - mini terminal block
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Features
Advance Battery Management (ABM), LCD display, deep discharge protection, automatic self-test, temperature-compensated battery charging, 3-stage charging, double conversion, power measuring
Compliant Standards
FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-3, CSA C22.2, IEC 62040-2, KCC, cULus, EN 62040-2, EAC, RCM, EN 62040-3, IEC 62040-1, EN 62040-1, BIS
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
40 dBA
Width
16 cm
Depth
35.7 cm
Height
25.2 cm
Weight
11.5 kg
