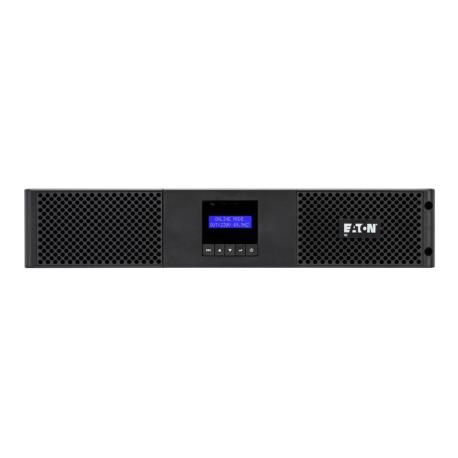

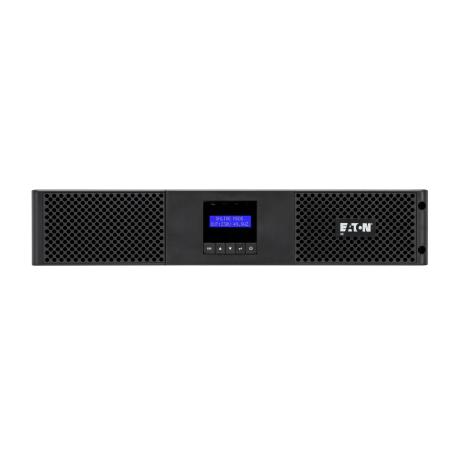

Eaton 9E - UPS - AC 200 / 220 / 230 / 240 V - 900 Watt - 1000 VA - RS-232, USB - output connectors: 4 - 2U - black
Eaton 9E - UPS - AC 200 / 220 / 230 / 240 V - 900 Watt - 1000 VA - RS-232, USB - output connectors: 4 - 2U - black
Manufacturer
•EATON
Reference
•9E1000IR
Article
•3355819
Intrastat
•84734080
Shipping weight
•20.2 kg
Device Type
UPS - external
Height (Rack Units)
2U
Colour
Black
UPS Technology
On-line
Input Voltage
AC 200/220/230/240 V
Input Voltage Range
AC 120 - 276 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
4 x power IEC 60320 C13
Output Voltage
AC 200/220/230/240 V ± 2% - 50/60 Hz
Power Capacity
900 Watt / 1000 VA
Output Waveform
Sinewave
Efficiency
90%
Remote Management Interface
RS-232, USB
Interfaces
1 x management (RS-232) ¦ 1 x management (USB) - 4 pin USB Type B ¦ RPO - mini terminal block
Expansion Slots
1 (total) / 1 (free) x Communication slot
Cables Included
2 x power cable (IEC) ¦ USB cable
Rack Mounting Kit
Included
Features
LCD display, internal bypass, deep discharge protection, temperature-compensated battery charging, double conversion, automatic battery test
Compliant Standards
TUV, EN 62040-2:2006, EMC 2014/30/EU, LVD 2014/35/EU, EN/IEC 63000:2018, RoHS 2011/65/EU Amendment 2015/863, IEC/EN 62040-1, IEC/EN 62040-2, EN IEC 62040-1:2019 + A11:2021
Software Included
Intelligent Power Editions, Eaton Intelligent Power Manager
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
4 °C
Humidity Range Operating
0 - 96% (non-condensing)
Sound Emission
41 dB
Width
43.8 cm
Depth
43.8 cm
Height
8.65 cm
Weight
17.6 kg
