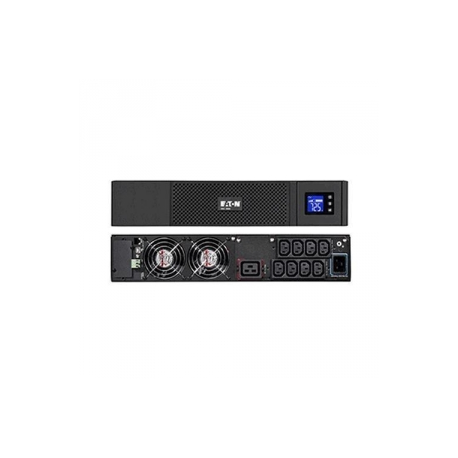

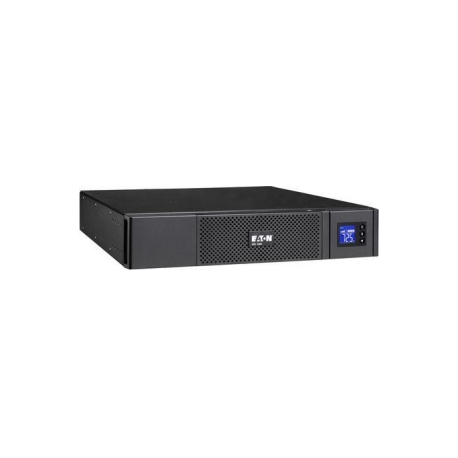

Eaton 5SC 3000i R / T - UPS (rack-mountable / external) - AC 230 V - 2700 Watt - 3000 VA - RS-232, USB - output connectors: 9 - 2U - black
Eaton 5SC 3000i R / T - UPS (rack-mountable / external) - AC 230 V - 2700 Watt - 3000 VA - RS-232, USB - output connectors: 9 - 2U - black
Manufacturer
•EATON POWER QUALITY
Reference
•5SC3000IRT
Article
•1407331
Intrastat
•84734080
Shipping weight
•42.2 kg
Device Type
UPS - rack-mountable / external
Height (Rack Units)
2U
Colour
Black
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 184 - 276 V
Frequency Provided
50/60 Hz ± 0.1%
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C20 16A
Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19 16A
Output Voltage
AC 220/230/240 V + 6% / - 10% - 50/60 Hz
Power Capacity
2700 Watt / 3000 VA
Output Waveform
Sinewave
Run Time (Up To)
10 min at half load ¦ 6 min at 70% load
Remote Management Interface
RS-232, USB
Interfaces
1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x remote power (on/off) - terminal block
Expansion Slots
1 Expansion Slot
Included Accessories
Rack mounting rails
Rack Mounting Kit
Included
Features
Built-in 2 cooling fans, Advance Battery Management (ABM), LCD display, deep discharge protection, remote ON/OFF function, cooling fan, buck operation, booster technology, fader technology, high frequency line interactive technology
Compliant Standards
TUV, UL 1778, CB, IEC 62040-1-1, IEC 62040-2, cTUVus, EN 62040-1-1, EN 62040-2
Software Included
Eaton Intelligent Power Software Suite
OS Required
Apple MacOS, Linux, Microsoft Windows
Service & Support
Limited warranty - 2 years
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
45 dB
Width
44.1 cm
Depth
64.7 cm
Height
8.62 cm
Weight
35.3 kg
